| CSS-1210(SE) [10″] | |
|---|---|
| System | 2 Ways 2 Speakers |
| Woofer Unit | 250mm(10inch) Paper Cone Type With 65mm(2.6inch) Coil×1unit |
| Tweeter Unit | 25mm Throat, 44.4mm Coil Diaphragm Assembly Type×1unit |
| Freq. Response | 55Hz～20.000Hz(±3dB) |
| Sensitivity | 96dB/W/m |
| Max SPL Peak | 128dB/m |
| Max SPL Continuous | 124dB/m |
| Max Input Power | 1000W |
| Rating Input Power | 250W (Public Addresses speaker type) |
| Recommended Amplifier | 500W (DAP-5000) |
| HF Protections | Poly Switch Circuit Breaker |
| Horizontal Coverage | 80° |
| Vertical Coverage | 60° |

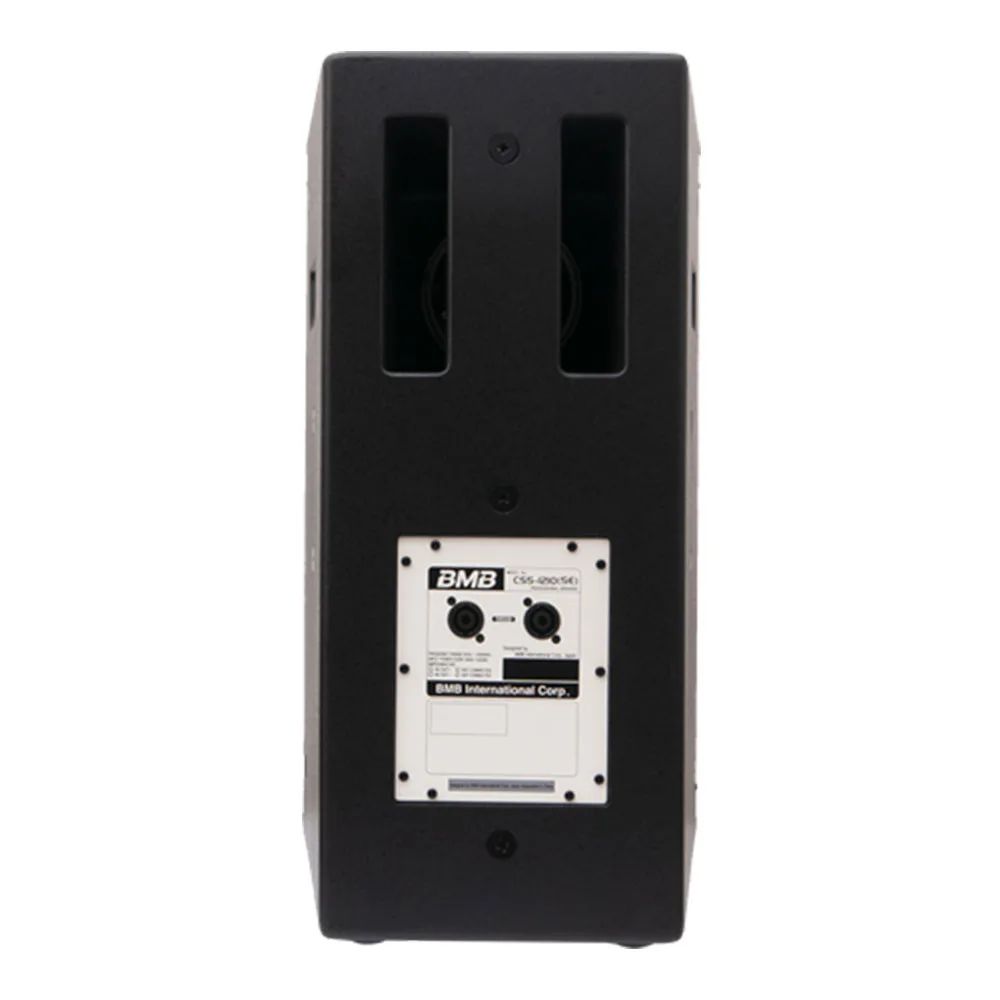

| Connector | 2×SPK 4style |
| Impedance | 8Ω |
| Dimensions(mm) | 333(W)×583(H)×325(D) |
| Weight | 18.0kg per piece |
| Enclosure Material | 15mm Plywood construction |
| Grille | 6.0mm Custom Hexagon perforated steel grille |
| Finish | Litchi effect paint finish |
| Pole Mount | φ36mm bottom support base |
Source : BMB CSS-1200 Series
