| Category | Details |
|---|---|
| Face Picture Comparison | 4-ch face picture comparison alarm (HD analog camera) |
| Human/Vehicle Analysis | Up to 8-ch (advanced model) |
| IP Video Input | 8-ch (up to 16-ch), each up to 4 Mbps |
| 8-ch | BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, |
| HDMI Output | 2K (2560 × 1440)/60Hz, |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), |
| CVBS Output | resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDTVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| AHD Input | 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| HDCVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ)，8-ch via coaxial cable |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Frame Rate | Main stream: |
| 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps | 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) |
| 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps | Sub-stream: |
| 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps | WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Serial Interface | RS-485 (half-duplex) |
| USB Interface | Front panel: 1 × USB 2.0; |
| USB Interface | Rear panel: 2 × USB 3.0 |
| Alarm In/Out | N/A (optional to support) |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| 10% to 90% | Dimension (W × D × H) |
| 10% to 90% | 384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch) |
| Weight | ≤ 1.78 kg (3.9 lb) |

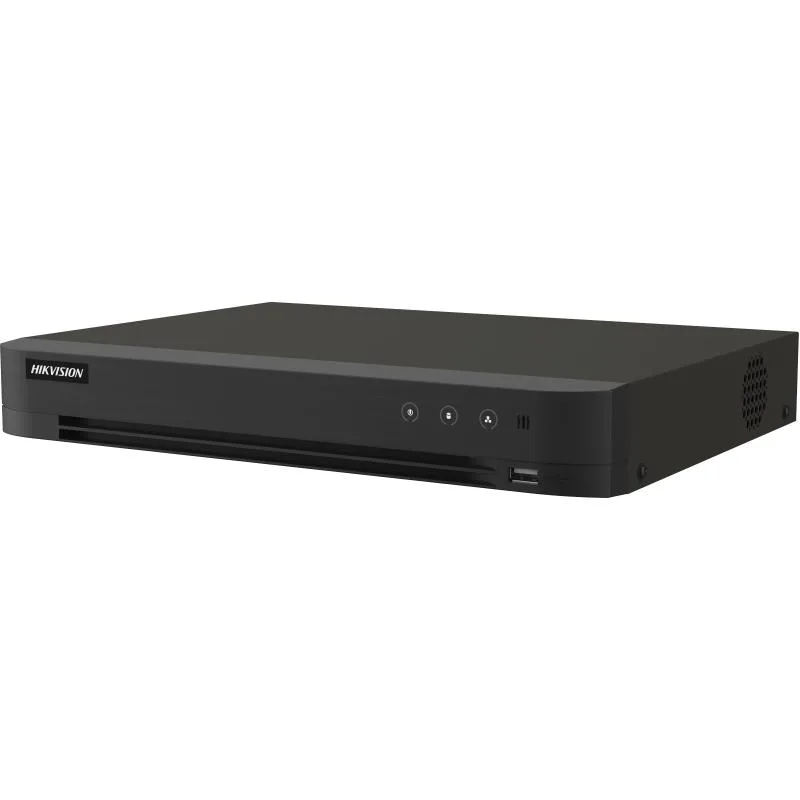

| Model | iDS-7208HUHI-M2/X |
|---|
