| Category | Details |
|---|---|
| Up to 16 face picture libraries | Face Picture Comparison (Captured From Camera) |
| Up to 16 face picture libraries | Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera) |
| Up to 4-ch | Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable. |
| IP Video Input | 2-ch (up to 10-ch) |
| IP Video Input | Enhanced IP mode on: |
| IP Video Input | 4-ch (up to 12-ch), Up to 6 MP resolution |
| IP Video Input | Note: Enhanced IP mode might be conflicted with smart events (face picture comparison, motion detection 2.0 and perimeter protection) or other functions, please refer to the user manual for details. |
| 8-ch | BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 3K(2960 x 1665)@25/20 fps, 3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| AHD Input | 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| HDCVI Input | 3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), |
| CVBS Output | resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Input | 1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ) |
| 8-ch via coaxial cable | Note: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input and alarm in/out parameters. For example, “4A+8/4ALM” means your device has 4 audio inputs, 8 alarm inputs and 4 alarm outputs. If your device only has 1 audio input, the tag may not describe it. |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Encoding Resolution | When 1080p Lite mode is not enabled: |
| 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; | When 1080p Lite mode is enabled: |
| Frame Rate | Main stream: |
| Frame Rate | When 1080p Lite mode not enabled: |
| Frame Rate | For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps |
| Frame Rate | For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps |
| Frame Rate | For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| Frame Rate | For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Frame Rate | For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Frame Rate | When 1080p Lite mode enabled: |
| Frame Rate | 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Frame Rate | Sub-stream: |
| Frame Rate | WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Serial Interface | RS-485 (half-duplex) |
| Alarm In/Out | N/A (optional to support) |
| USB Interface | Front panel: 1 × USB 2.0; |
| USB Interface | Rear panel: 1 × USB 2.0 |
| Consumption | ≤ 18 W (without HDD) |
| Working Temperature | -10 °C to + 55 °C (14 °F to 131 °F) |
| 10% to 90% | Dimension (W × D × H) |
| 10% to 90% | 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch) |
| Weight | ≤ 1.78 kg (3.9 lb) (without HDD) |

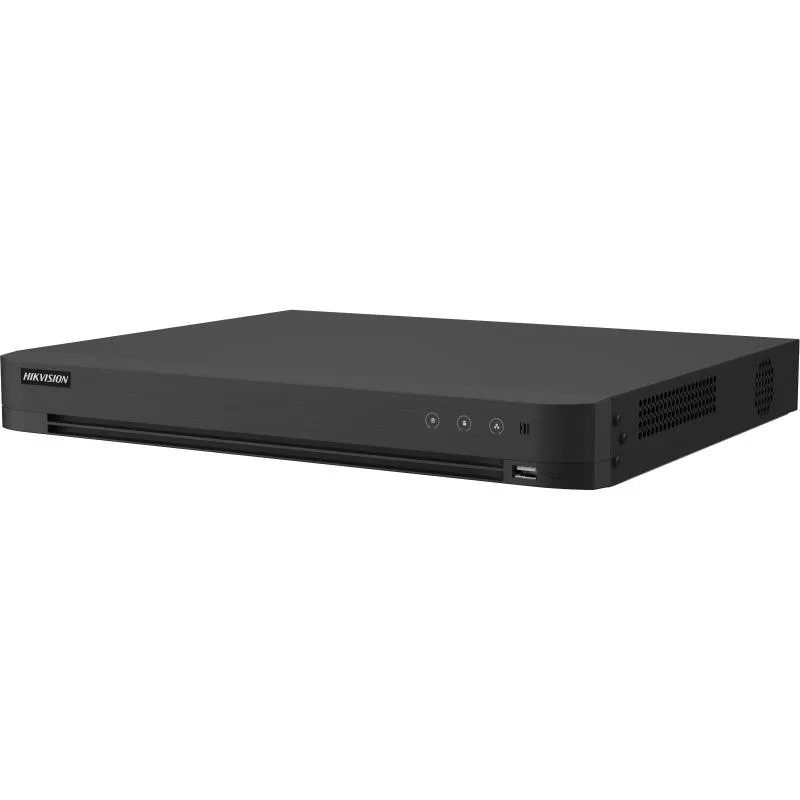

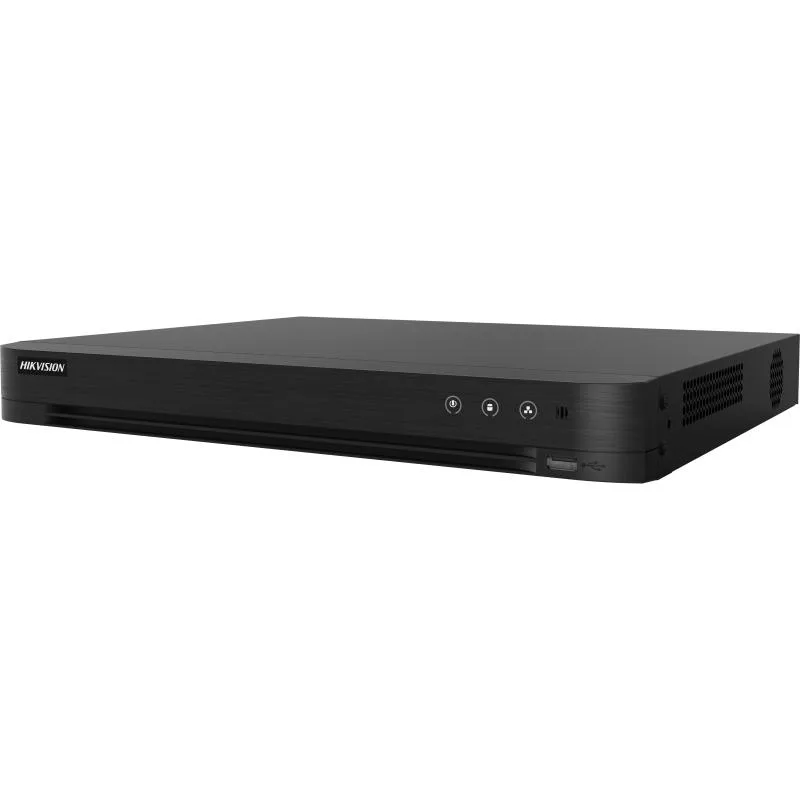

| Model | iDS-7208HQHI-M1/XT |
|---|
