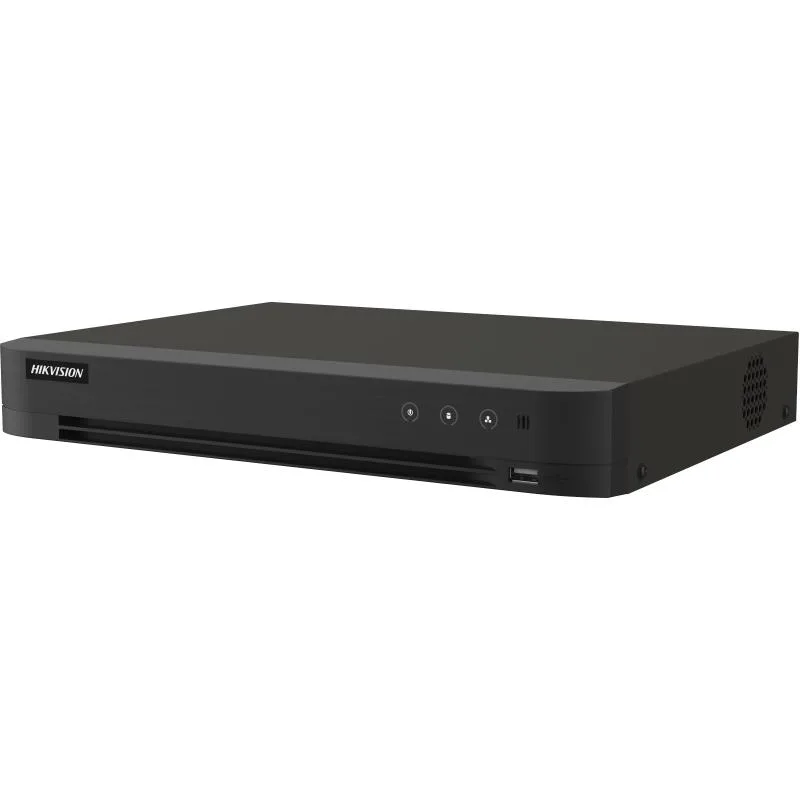

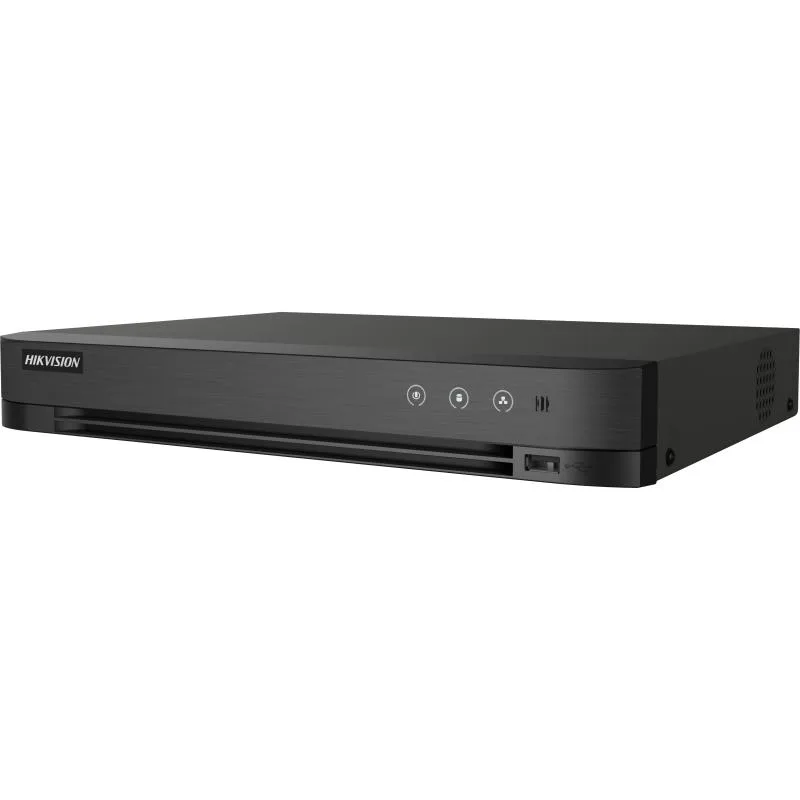

(iDS-7204HTHI-M1/S(C)) Hikvision DVR 4-ch 4K 1U H.265 AcuSense DVR

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

ติดต่อสอบถามราคาพิเศษ

Line : @greatocean
Tel : 099-495-8880
Facebook : https://www.facebook.com/gtoengineer/
Email : support@gtoengineer.com

ซื้อสินค้า ติดต่อสอบถาม

SKU: iDS-7204HTHI-M1/S(C) Category: Pro Series with AcuSense Tag: กล้องวงจรปิดความปลอดภัย และบาร์โค้ด

Description

Category	Details
IP Video Input	4-ch (up to 8-ch)
4-ch	BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output	1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω),
CVBS Output	resolution: PAL: 704 × 576, NTSC: 704 × 480
HDTVI Input	8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12.5 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
AHD Input	5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input	8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12.5 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Audio Input	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Frame Rate	Main stream:
8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps	4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps	Sub-stream:
8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps	WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Serial Interface	RS-485 (half-duplex)
USB Interface	Front panel: 1 × USB 2.0
USB Interface	Rear panel: 1 × USB 2.0
Alarm In/Out	N/A (optional to support)
Consumption	≤ 10 W (without HDD)
Working Temperature	-10 °C to +55 °C (+14 °F to +131 °F)
10% to 90%	Dimension (W × D × H)
10% to 90%	319 × 235 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight	≤ 1.8 kg (without HDD, 4.0 lb.)
