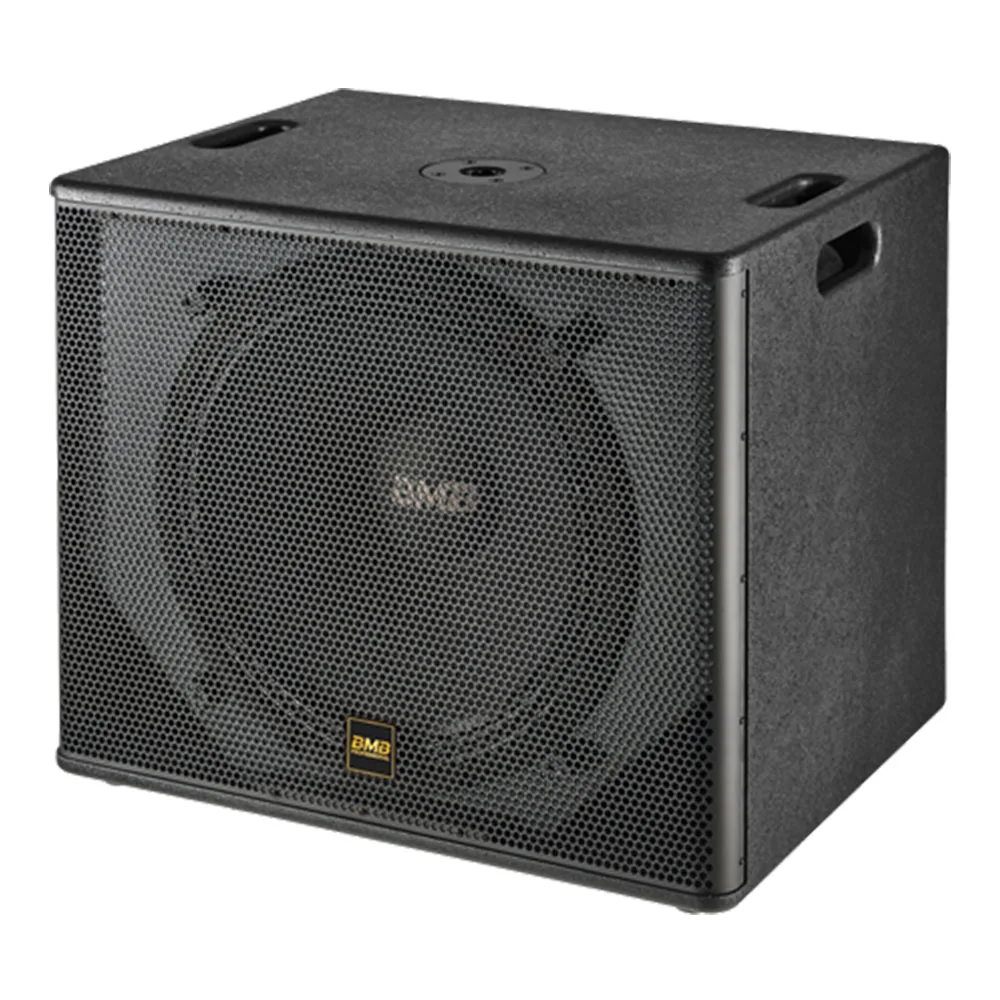

| CSW-118 [18″] | |
|---|---|
| System Type | 1 Way 1 Speaker Bass Reflex |
| Frequency Range(-10dB) *1 | 40Hz～2.5kHz |
| Frequency Response(±3dB) *1 | 50Hz～1.8kHz |
| Sound Pressure Level *2 | 95dB |
| Impedance | 8Ω |
| Max Sound Pressure Level *3 | 123dB(Peak 129dB) |
| Power Capacity | Continuous 600W, Program 1200W, Peak 2400W |
| Dimensions(H×W×D) | 550mm×661mm×519mm (21.6″×26.0″×20.4″) |
| Shipping Dimensions(H×W×D) | 692mm×809mm×666mm (27.2″×31.9″×26.2″) |
| Net Weight | 31.1kg(68.6lbs) |
| Shipping Weight | 39.6kg(87.3lbs) |

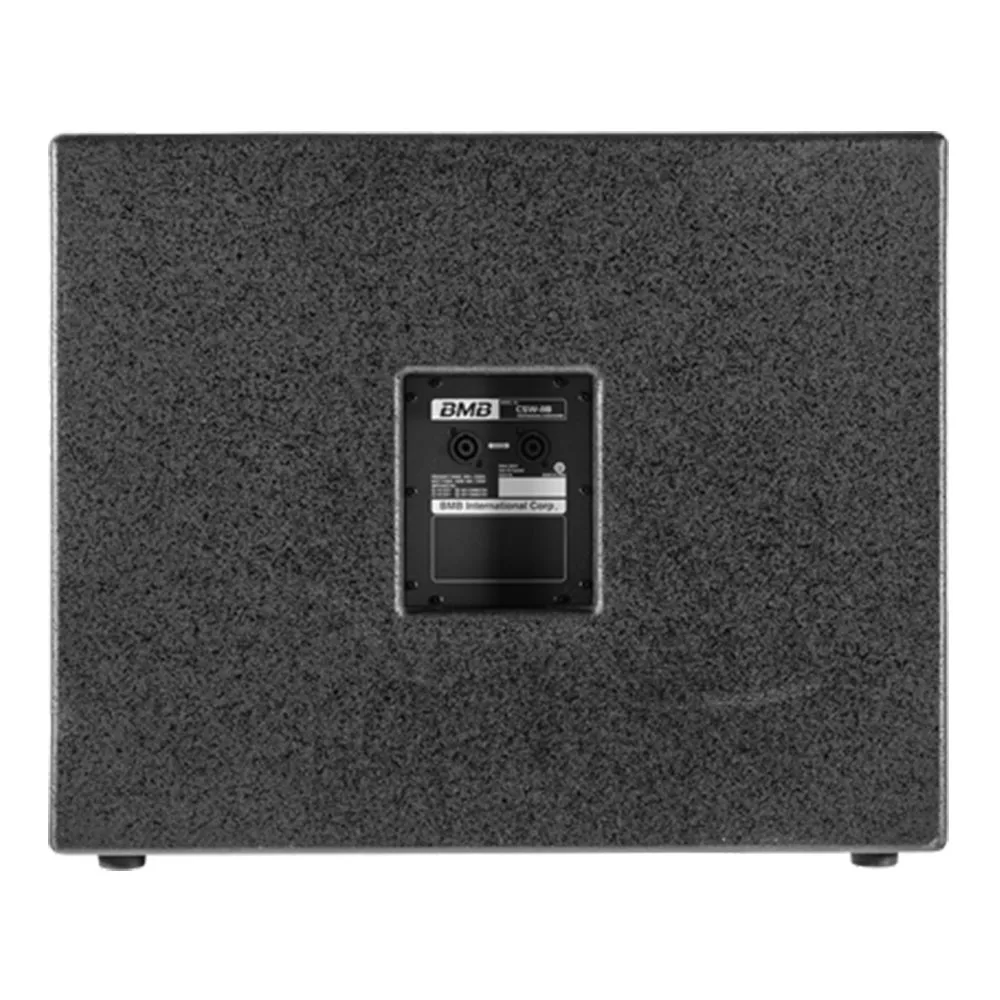

| Input Connectors | Speaker Connector(4P)×2 |
| Pole Mount Cap | Φ36mm(1.4″), Depth 96mm(3.8″) |
| LF Driver | 460mm(18.1″) Cone, 75mm(3.0″) Voice Coil×1 |
| Enclosure Construction | 18mm(0.7″) Plywood |
Source : BMB CSW Series
