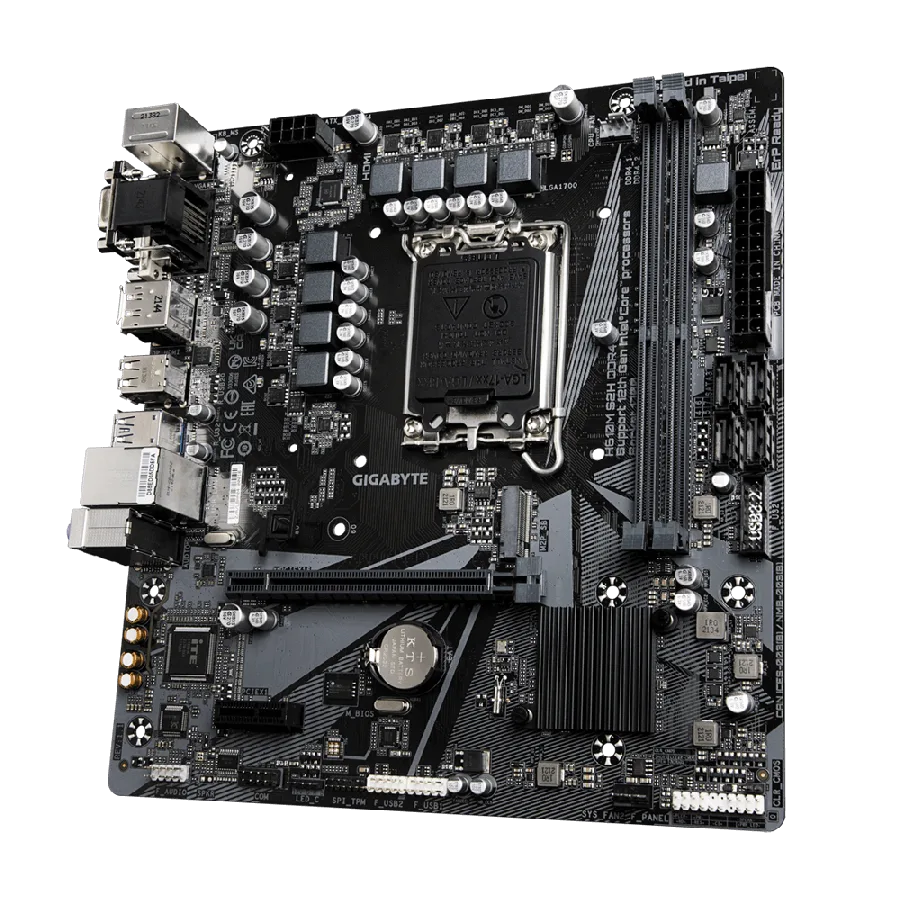

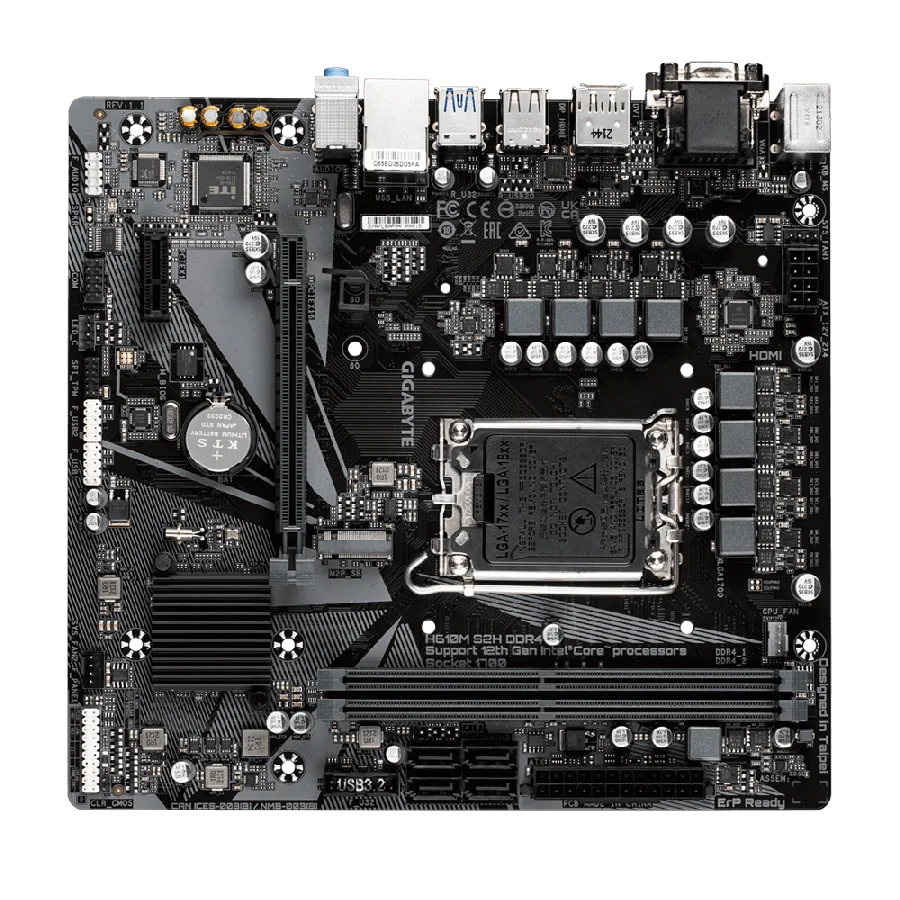

MAINBOARD GIGABYTE H610M S2H DDR4 REV. 1.2 [H610M]

n
1. LGA1700 socket: Support for 13th Generation Intel^® Core™ Processors and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*

n

2. L3 cache varies with CPU

n

n* Please refer to “CPU Support List” for more information.

n
1. Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

n

2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

n

3. Dual channel memory architecture

n

4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

n

5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

n

6. Support for Extreme Memory Profile (XMP) memory modules

n

n(Please refer “Memory Support List” for more information.)

n
1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

n

2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
   n* Support for HDMI 2.1 version and HDCP 2.3.
   n** Support native HDMI 2.1 TMDS compatible ports

n

n(Graphics specifications may vary depending on CPU support.)

n
1. Realtek^® Audio CODEC

n

2. High Definition Audio

n

3. 2/4/5.1/7.1-channel
   n* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

n

n

n
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

n

nChipset:
n

n
1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

n

n

n
1. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)

n

2. 4 x SATA 6Gb/s connectors

n

n

n
1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

n

2. 4 x USB 2.0/1.1 ports on the back panel

n

nChipset+USB 2.0 Hub:
n

n
1. 4 x USB 2.0/1.1 ports available through the internal USB headers

n

n

n
1. Voltage detection

n

2. Temperature detection

n

3. Fan speed detection

n

4. Water cooling flow rate detection

n

5. Fan fail warning

n

6. Fan speed control
   n* Whether the fan speed control function is supported will depend on the cooler you install.

n

n

n
1. 1 x 128 Mbit flash

n

2. Use of licensed AMI UEFI BIOS

n

3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

n

n

n
1. Support for APP Center
   n* * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   n@BIOS
   nAmbient LED
   nEasyTune
   nSmart Backup
   nSystem Information Viewer

n

2. Support for Q-Flash

n

3. Support for Xpress Install

n

n

n
1. Norton^® Internet Security (OEM version)

n

2. LAN bandwidth management software

n

n

n
1. Support for Windows 11 64-bit

n

2. Support for Windows 10 64-bit
