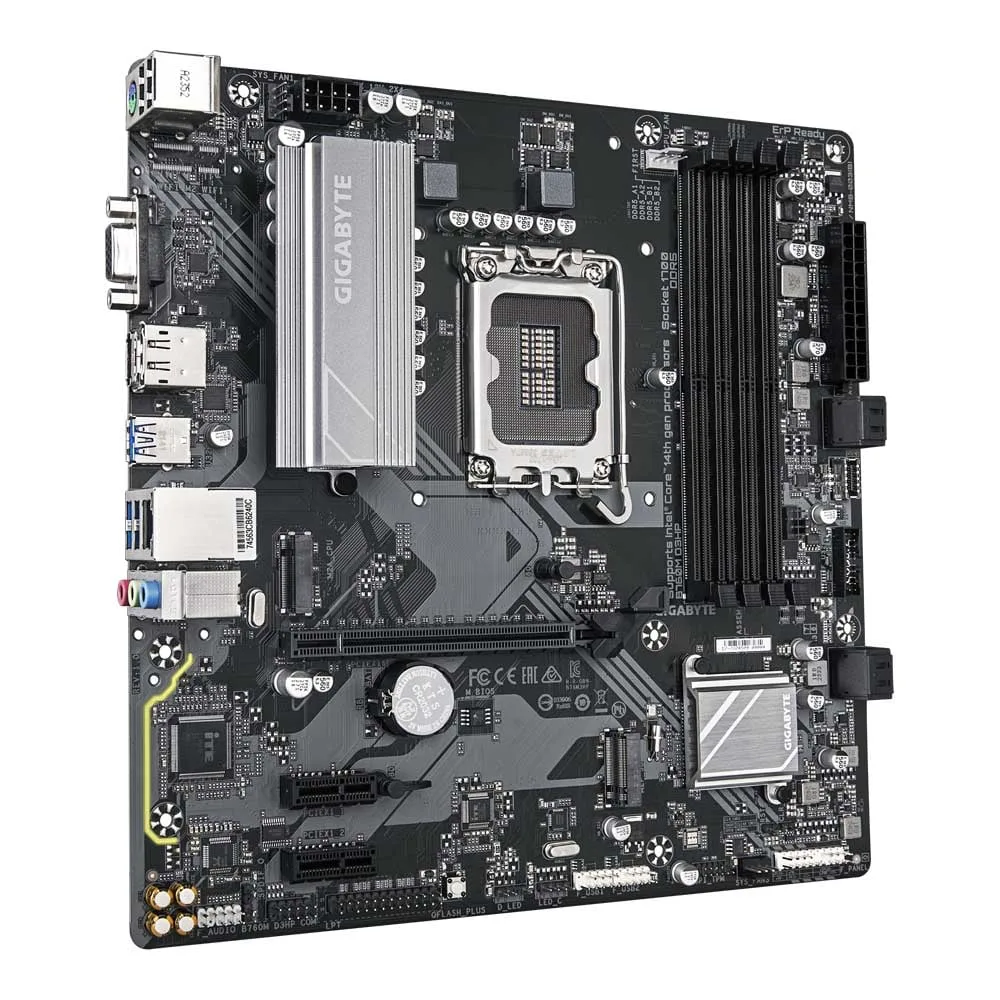

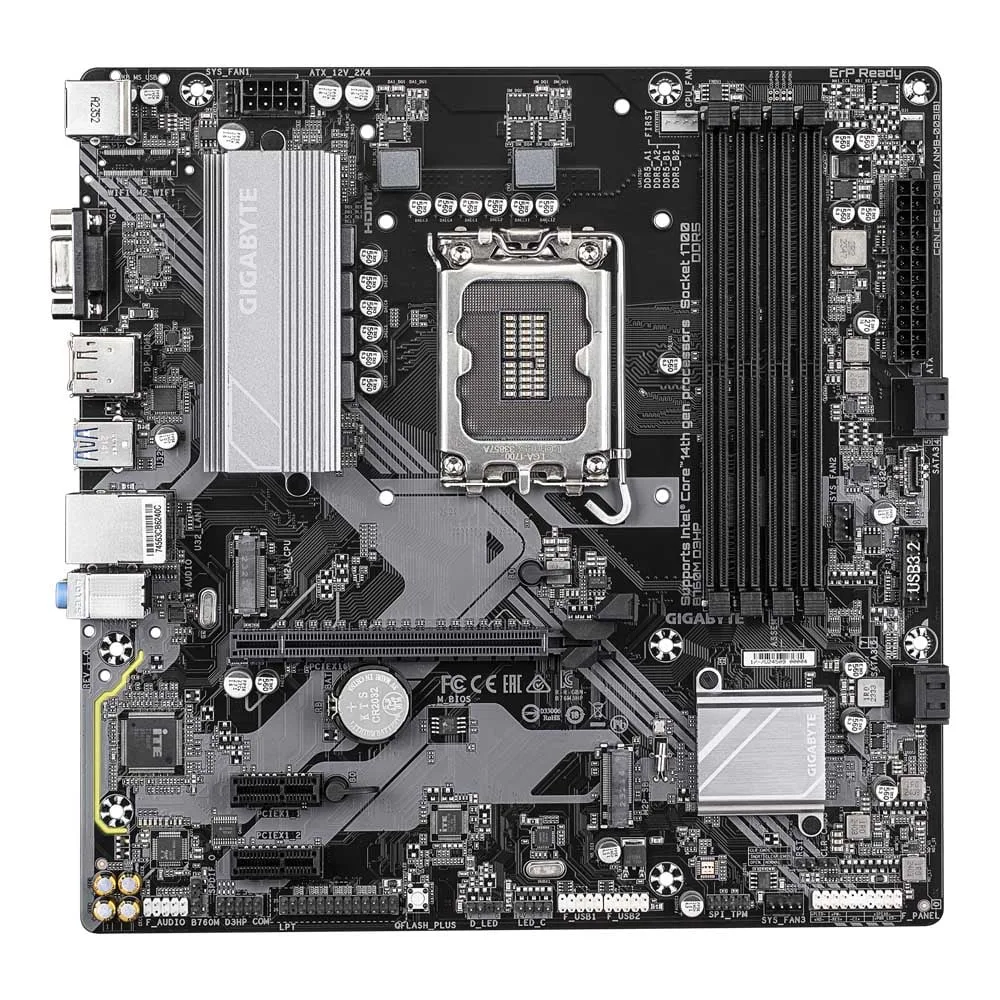

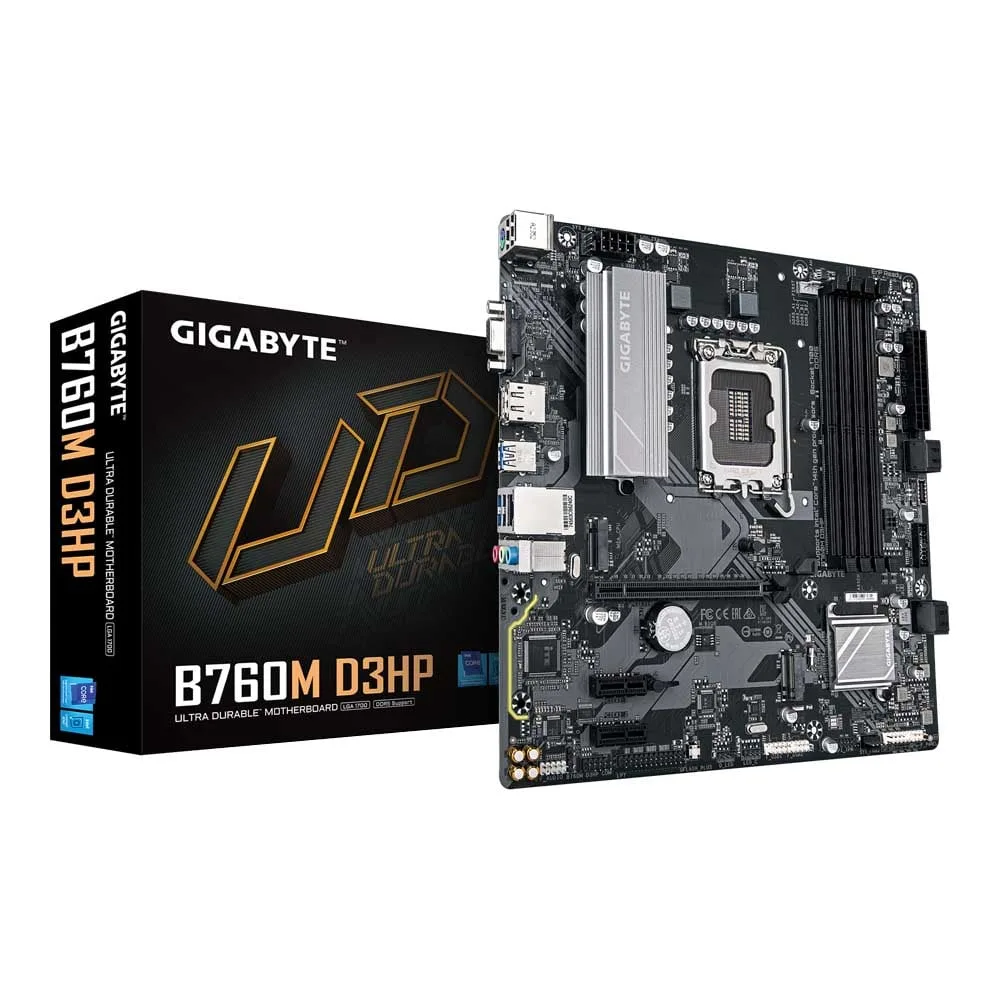

| Product Type | Mainboard |
| Brand | Gigabyte |
| Model | B760M D3HP |
| Socket | 1700 (12th Gen – Alder Lake) , 1700 (13th Gen – Raptor Lake) , 1700 (14th Gen – Raptor Lake Refresh) |
| Wattage | 125W |
| Chipset | Intel B760 |
| Speed | 4400 , 4800 , 5200 , 5600 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7600 (OC) |
| Slot | 4 |
| Memory Type | DDR5 |
| Max. Capacity | 256 GB |
| Speed | 4400 , 4800 , 5200 , 5600 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7600 (OC) |
| Graphic | Requires a CPU with Integrated Graphics. — • 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. — • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 — (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
| Audio | Realtek Audio CODEC |
| Audio Detail | • High Definition Audio • 2/4/5.1/7.1-channel • Support for S/PDIF Out * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| SATA 2 | – Port |
| SATA 3 | 4 Port |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| M.2 | 2 x M.2 Connectors — CPU: • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) — Chipset: • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) Port |
| Details | CPU: • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. — Chipset: • 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Slot | 1 x PCIe 3.0 x16 Slot , 1 x PCIe 4.0 x16 Slot |
| LAN | Realtek 1GbE Ethernet |
| LAN Speed | 10/100/1000 Mbps |
| Wireless | No |
| USB 2.0 | 2 Port |
| USB 3.0 | – Port |
| USB 3.1 | – Port |
| Serial | – Port |
| USB 3.2 | 3 x USB 3.2 Gen 1 Type-A Port |
| D-Sub (VGA) | 1 Port |
| DVI | – Port |
| HDMI | 1 Port |
| DisplayPort | – Port |
| Audio | – Port |
| PS/2 | 1 Port |
| Additional | No |
| LAN | 1 Port |
| Form Factor | Micro-ATX |
| Power Connector | 24 + 8 Pin |
| Dimension | 24.4 x 24.4 cm |
| การรับประกัน | 3 Years |
| Product Type | Mainboard |
|---|---|
| Brand | Gigabyte |
| Model | B760M D3HP |
