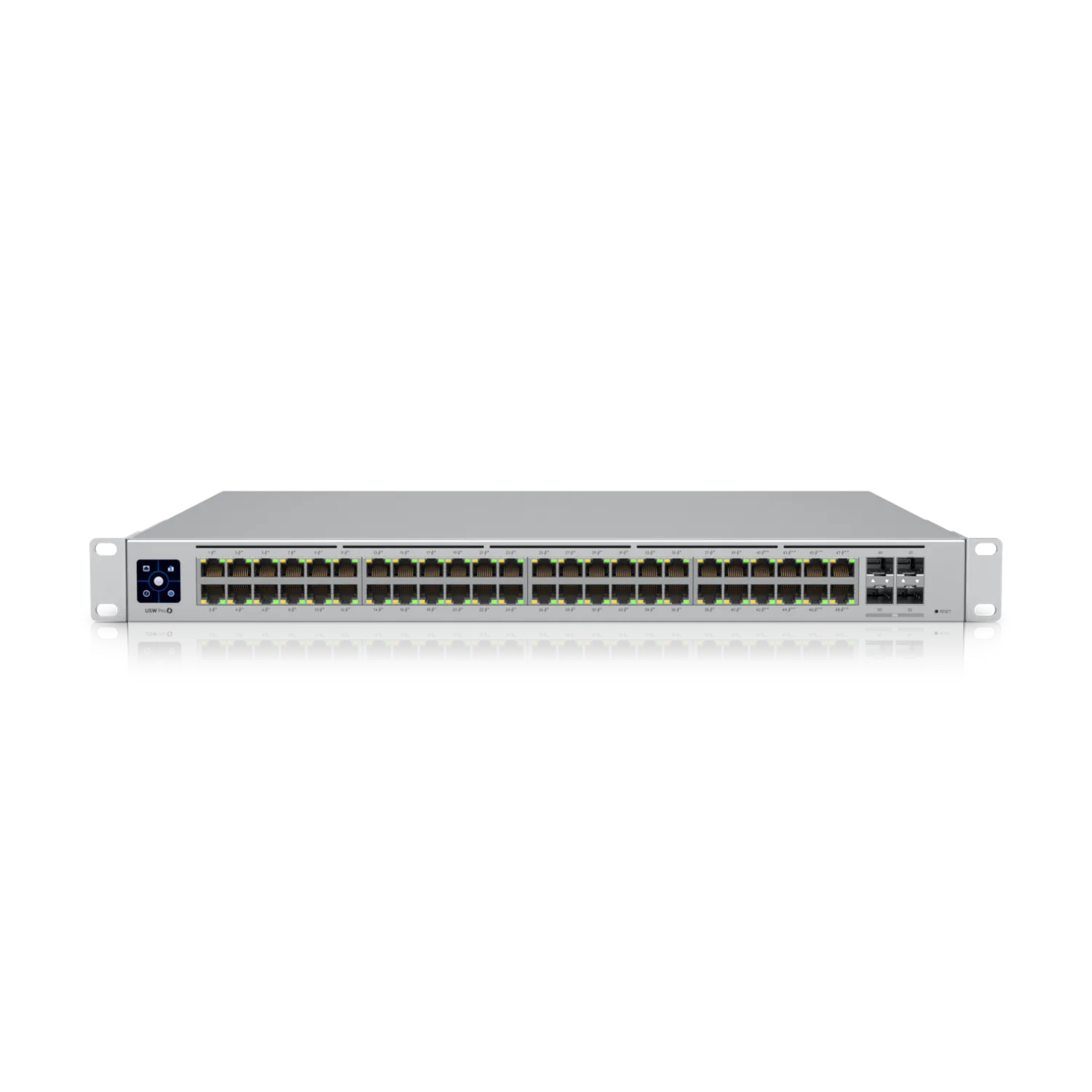

Ubiquiti Hub & Switch USW-PRO-48-POE A 48-port Layer 3 switch capable of high-power PoE++ output.

A 48-port, Layer 3 switch capable of high-power PoE++ output.
-(40) GbE PoE+, (8) GbE PoE++ ports
-(4) 10G SFP+ ports
-600W total PoE availability
-DC Power backup ready
-Layer 3 switching
-Near-silent cooling
Overview
Dimensions
442 x 400 x 44 mm
(17.4 x 15.7 x 1.7″)
Port Layout
1 GbE RJ45
48 (40 PoE+; 8 PoE++)
(1G/100M/10M)
10G SFP+
4
Max. PoE Output
Up to PoE++
Total PoE Availability
600W
Redundancy
DC Power Backup
Layer 3
✓
Form Factor
Rack mount (1U)

Performance
Switching Capacity
176 Gbps
Total Non-Blocking Throughput
88 Gbps
Forwarding Rate
131 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
L3 Table Size
ARP Entries
4,000
IPv4 Routes
1,000
Packet Buffer Size
4 MB

Layer 3 Features
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓

Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓

Hardware
PoE Ports
PoE+
40
PoE++
8
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
32W
PoE++
64W
Max. Power Consumption
60W (Excluding PoE Output)
660W (Including PoE Output)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 660W
Supported Voltage Range
100—240V AC
Management
Ethernet
AR
Heat Dissipation (Excluding PoE Output)
204.72 BTU/hr
Weight
Without mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm
(15.7-47.2″)
LCM Display
1.3″ touchscreen
ESD/EMP Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC
