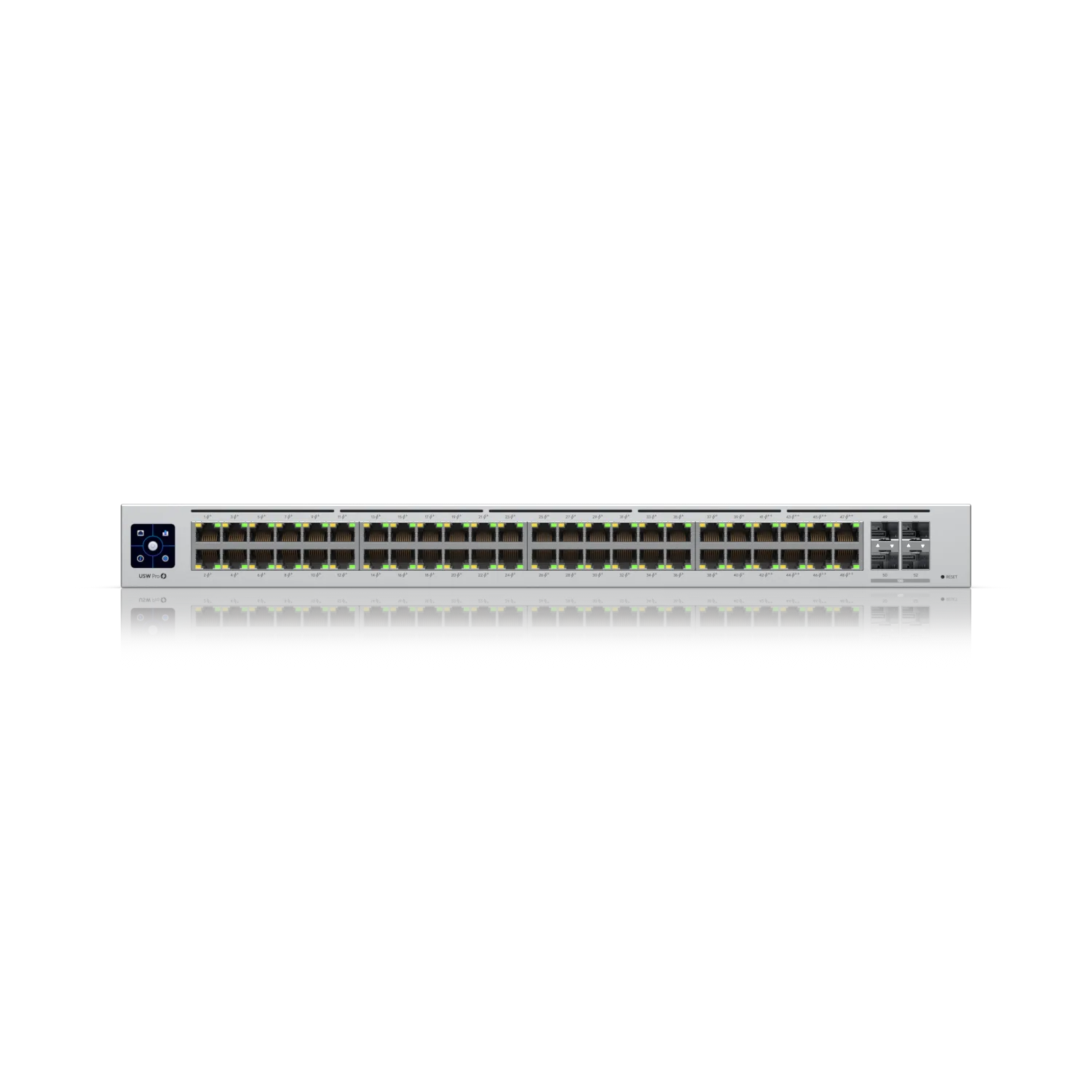

Ubiquiti Hub & Switch USW-PRO-48-POE A 48-port Layer 3 switch capable of high-power PoE++ output.

A 48-port, Layer 3 switch capable of high-power PoE++ output.
-(40) GbE PoE+, (8) GbE PoE++ ports
-(4) 10G SFP+ ports
-600W total PoE availability
-DC Power backup ready
-Layer 3 switching
-Near-silent cooling
Overview
Dimensions
442 x 400 x 44 mm
(17.4 x 15.7 x 1.7″)
Port Layout
1 GbE RJ45
48 (40 PoE+; 8 PoE++)
(1G/100M/10M)
10G SFP+
4
Max. PoE Output
Up to PoE++
Total PoE Availability
600W
Redundancy
DC Power Backup
Layer 3
?
Form Factor
Rack mount (1U)

Performance
Switching Capacity
176 Gbps
Total Non-Blocking Throughput
88 Gbps
Forwarding Rate
131 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
L3 Table Size
ARP Entries
4,000
IPv4 Routes
1,000
Packet Buffer Size
4 MB

Layer 3 Features
DHCP Server (Local Networks)
?
DHCP Relay
?
Inter-VLAN Routing (Local Networks)
?
Static Routing (Local Networks)
?

Layer 2 Features
LACP Port Aggregation
?
STP & RSTP
?
QoS (DSCP)
?
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
?
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
?
IGMP Snooping
?
802.1X Control
?
MAC-Based ACLs & Device Isolation
?
DHCP Snooping & Guarding
?
Egress Rate Limit
?
Flow Control
?
Storm Control
?
Multicast & Broadcast Rate Limiting
?
MAC Address Blocking
?
IP-Based ACLs & Network Isolation
?
MAC-Based Port Restriction
?
Port Isolation
?
Port Mirroring
?
Jumbo Frames
?
LLDP-MED
?
Voice VLAN
?
Loop Protection
?

Hardware
PoE Ports
PoE+
40
PoE++
8
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
32W
PoE++
64W
Max. Power Consumption
60W (Excluding PoE Output)
660W (Including PoE Output)
Power Method
(1) Universal input, 100?240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 660W
Supported Voltage Range
100?240V AC
Management
Ethernet
AR
Heat Dissipation (Excluding PoE Output)
204.72 BTU/hr
Weight
Without mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm
(15.7-47.2″)
LCM Display
1.3″ touchscreen
ESD/EMP Protection
Air: ? 16kV, contact: ? 12kV
Ambient Operating Temperature
-5 to 40? C (23 to 104? F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
?
Certifications
CE, FCC, IC
