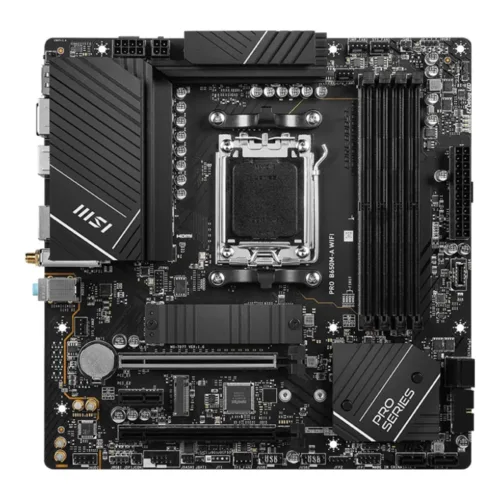

MAINBOARD (เมนบอร์ด) MSI PRO B650M-A WIFI (DDR5) (SOCKET AM5) (MICRO-ATX)

฿5,800.00

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

ติดต่อสอบถามราคาพิเศษ

Line : @greatocean
Tel : 099-495-8880
Facebook : https://www.facebook.com/gtoengineer/
Email : support@gtoengineer.com

ซื้อสินค้า ติดต่อสอบถาม

SKU: 201038662 Category: MAINBOARD Brand: MSI

Description

Product Type	Mainboard
Brand	MSI
Model	PRO B650M-A WIFI
Socket	AM5 (7000 Series – Raphael) , AM5 (8000 / 8000 G Series – Phoenix) , AM5 (9000 Series – Granite Ridge)
Wattage	170W
Chipset	AMD B650
Series	Ryzen 5 , Ryzen 7 , Ryzen 9
Slot	4
Memory Type	DDR5
Max. Capacity	128 GB
Speed	4800 , 5000 (OC) , 5200 (OC) , 5400 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC)
Graphic	CPU with Integrated Graphics Required — • 1 x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* • 1 x DisplayPort Supports DP1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio	Realtek ALC897
Audio Detail	7.1-Channel High Definition Audio
SATA 2	– Port
SATA 3	4 Port
RAID	• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
M.2	2 x M.2 — • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices Port
Details	2 x PCI-E x16 slot 1 x PCI-E x1 slot • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Slot	1 x PCIe 3.0 x1 Slot , 2 x PCIe 4.0 x16 Slot
LAN	Realtek 8125BG 2.5G LAN
LAN Speed	100/1000/2500 Mbps
Wireless	• AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax • Supports Bluetooth 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
USB 2.0	– Port
USB 3.0	– Port
USB 3.1	– Port
Serial	– Port
USB 3.2	4 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 Type-A Port
D-Sub (VGA)	– Port
DVI	– Port
HDMI	1 Port
DisplayPort	1 Port
Audio	3 Port
PS/2	No
Additional	1 x Flash BIOS button 2 x Wi-Fi Antenna connectors
LAN	1 Port
Form Factor	Micro-ATX
Power Connector	24 + 4 + 8 Pin
Dimension	24.4 x 24.4 cm
การรับประกัน	3 Years
