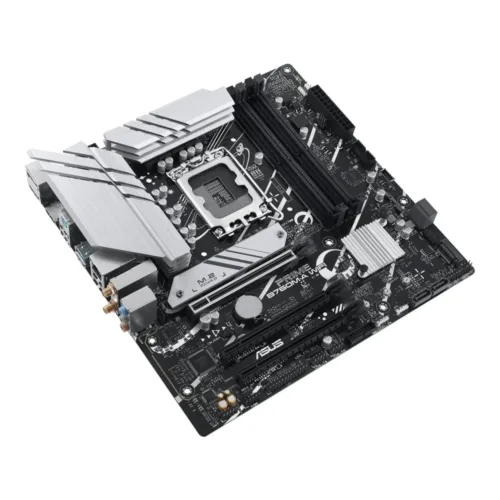

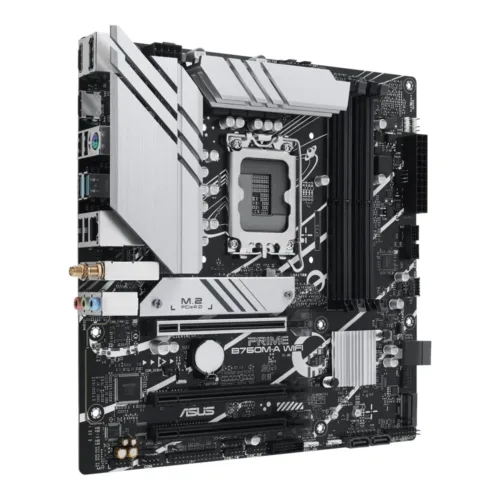

MAINBOARD (เมนบอร์ด) ASUS PRIME B760M-A WIFI (DDR5) (SOCKET LGA 1700) (MICRO-ATX)

฿4,400.00

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

ติดต่อสอบถามราคาพิเศษ

Line : @greatocean
Tel : 099-495-8880
Facebook : https://www.facebook.com/gtoengineer/
Email : support@gtoengineer.com

ซื้อสินค้า ติดต่อสอบถาม

SKU: 201038681 Category: MAINBOARD Brand: ASUS

Description

Product Type	Mainboard
Brand	Asus
Model	PRIME B760M-A WIFI
Socket	1700 (12th Gen – Alder Lake) , 1700 (13th Gen – Raptor Lake) , 1700 (14th Gen – Raptor Lake Refresh)
Wattage	125W
Chipset	Intel B760
Series	Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium
Slot	4
Memory Type	DDR5
Max. Capacity	128 GB
Speed	4800 , 5000 , 5000 (OC) , 5200 , 5200 (OC) , 5400 , 5400 (OC) , 5600 , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC)
Graphic	Requires a CPU With Integrated Graphics. — • 1 x DisplayPort • 2 x HDMITM ports* — * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMITM 2.1.
Audio	Realtek
Audio Detail	7.1 Surround Sound High Definition Audio
SATA 2	– Port
SATA 3	4 Port
RAID	RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices
M.2	2 x M.2 slots — Intel 13th & 12th Gen Processors • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) — Intel B760 Chipset • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Port
Details	Intel 13th & 12th Gen Processors • 1 x PCIe 4.0 x16 slot — Intel B760 Chipset • 1 x PCIe 4.0 x16 slot (supports x4 mode) • 1 x PCIe 4.0 x16 slot (supports x1 mode) — Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Slot	3 x PCIe 4.0 x16 Slot
LAN	Realtek 2.5Gb Ethernet
LAN Speed	100/1000/2500 Mbps
Wireless	• Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band — • Bluetooth v5.2 — * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB 2.0	4 Port
USB 3.0	– Port
USB 3.1	– Port
Serial	– Port
USB 3.2	2 x USB 3.2 Gen 2 Type-A Port
D-Sub (VGA)	– Port
DVI	– Port
HDMI	2 Port
DisplayPort	1 Port
Audio	3 Port
PS/2	1 (Keyboard/Mouse combo) Port
Additional	1 x Wi-Fi Module
LAN	1 Port
Form Factor	Micro-ATX
Power Connector	24 + 8 Pin
Dimension	24.4 x 24.4 cm
การรับประกัน	3 Years
