MSI

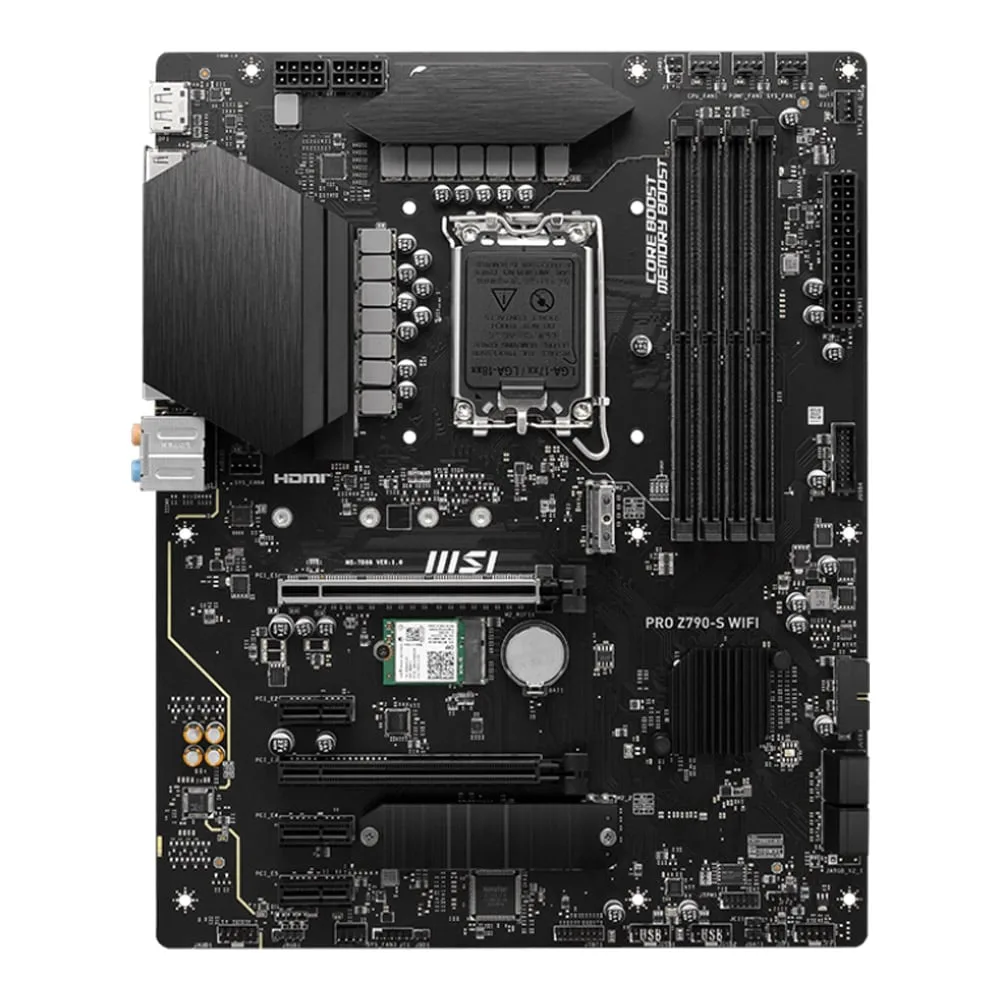

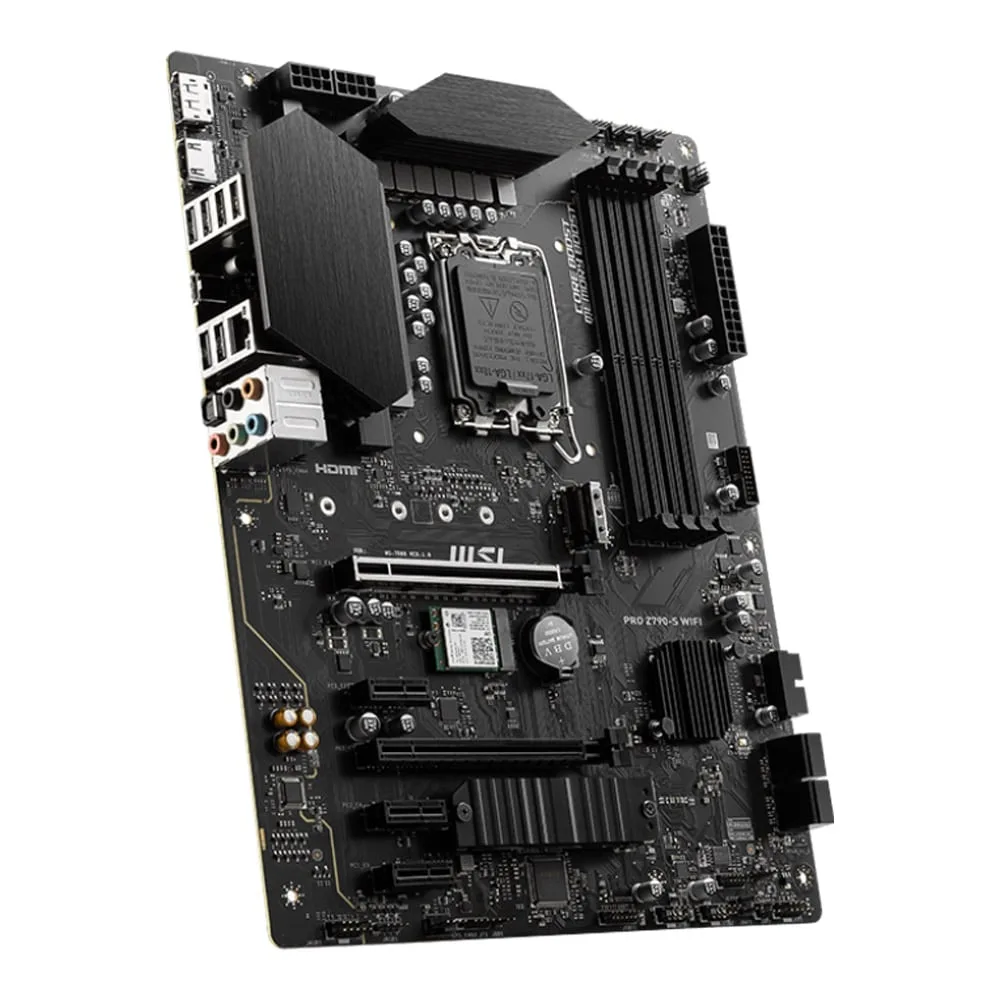

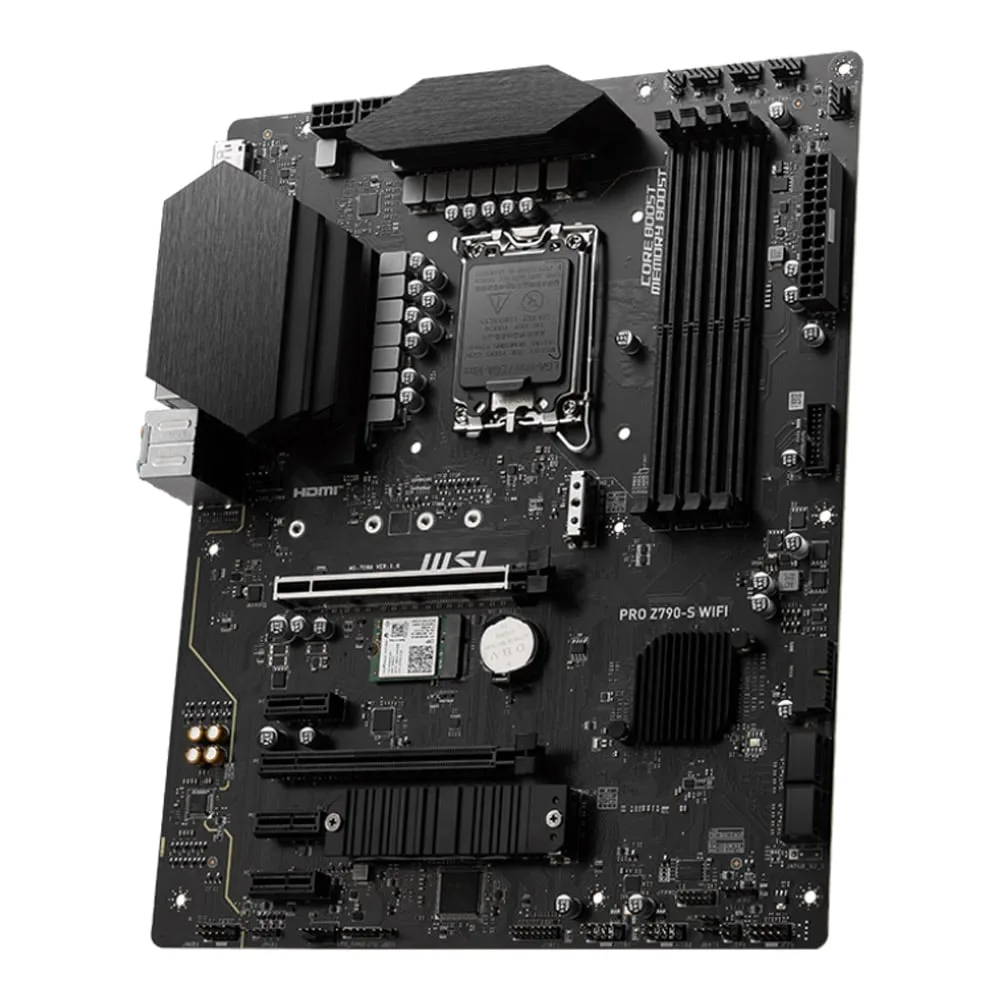

MAINBOARD (เมนบอร์ด) MSI PRO Z790-S WIFI (SOCKET LGA 1700 DDR5 ATX)

รหัสสินค้า : 1007000025

฿5,500

โทรสอบถามราคา

การรับประกัน :

Data Sheet :

1007000025_datasheet.pdf

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

ติดต่อสอบถามราคาพิเศษ

Line :
Tel : 099-495-8880
Facebook : https://www.facebook.com/gtoengineer/
Email : support@gtoengineer.com

อัปเดตล่าสุด : 1 year ago

Product Type	Mainboard
Brand	MSI
Model	PRO Z790-S WIFI
Socket	1700 (12th Gen – Alder Lake) , 1700 (13th Gen – Raptor Lake) , 1700 (14th Gen – Raptor Lake Refresh)
Wattage	150W
Chipset	Intel Z790
Series	Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium
Slot	4
Memory Type	DDR5
Max. Capacity	192 GB
Speed	4800 , 5000 , 5000 (OC) , 5200 , 5200 (OC) , 5400 , 5400 (OC) , 5600 , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC)
Graphic	Requires a CPU with Integrated Graphics. — • 1 x HDMI 1.4 port with HDR, supports a maximum resolution of 4K 30Hz/ * • 1 x DisplayPort 1.4, supports a maximum resolution of 4K 60Hz / * — * Available only on processors featuring integrated graphics. ** Graphics specifications may vary depending on the CPU ins
Audio	Realtek ALC897
Audio Detail	• 7.1-Channel High Definition Audio • Supports S/PDIF output
SATA 2	– Port
SATA 3	4 Port
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
M.2	2 x M.2 slots (Key M) — • M2_1 slot (From CPU) – Supports up to PCIe 4.0 x4 – Supports 2242/ 2260/ 2280/ 22110 storage devices — • M2_2 slot (From Z790 chipset) – Supports up to PCIe 4.0 x4 – Supports SATA 6Gb/s – Supports 2242/ 2260/ 2280 storage device Port
Details	• 2 x PCIe x16 slots – PCI_E1 slot (From CPU) – Supports up to PCIe 5.0 x16 – PCI_E3 slot (From Z790 chipset) – Supports up to PCIe 3.0 x4 — • 3 x PCIe x1 slots – PCI_E2 , PCI_E4 and PCI_E5 slots (From Z790 chipset) – Supports up to PCIe 3.0 x1
Slot	1 x PCIe 3.0 x16 Slot , 1 x PCIe 5.0 x16 Slot , 3 x PCIe 3.0 x1 Slots
LAN	Realtek RTL8125BG 2.5Gbps LAN
LAN Speed	100/1000/2500 Mbps
Wireless	Intel Wi-Fi 6E • The Wireless module is pre-installed in the M2_WIFI1 (Key-E) slot • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps • Supports 802.11 a/ b/ g/ n/ ac/ ax • Supports Bluetooth 5.3*, FIPS, FISMA — The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details
USB 2.0	2 Port
USB 3.0	– Port
USB 3.1	– Port
Serial	– Port

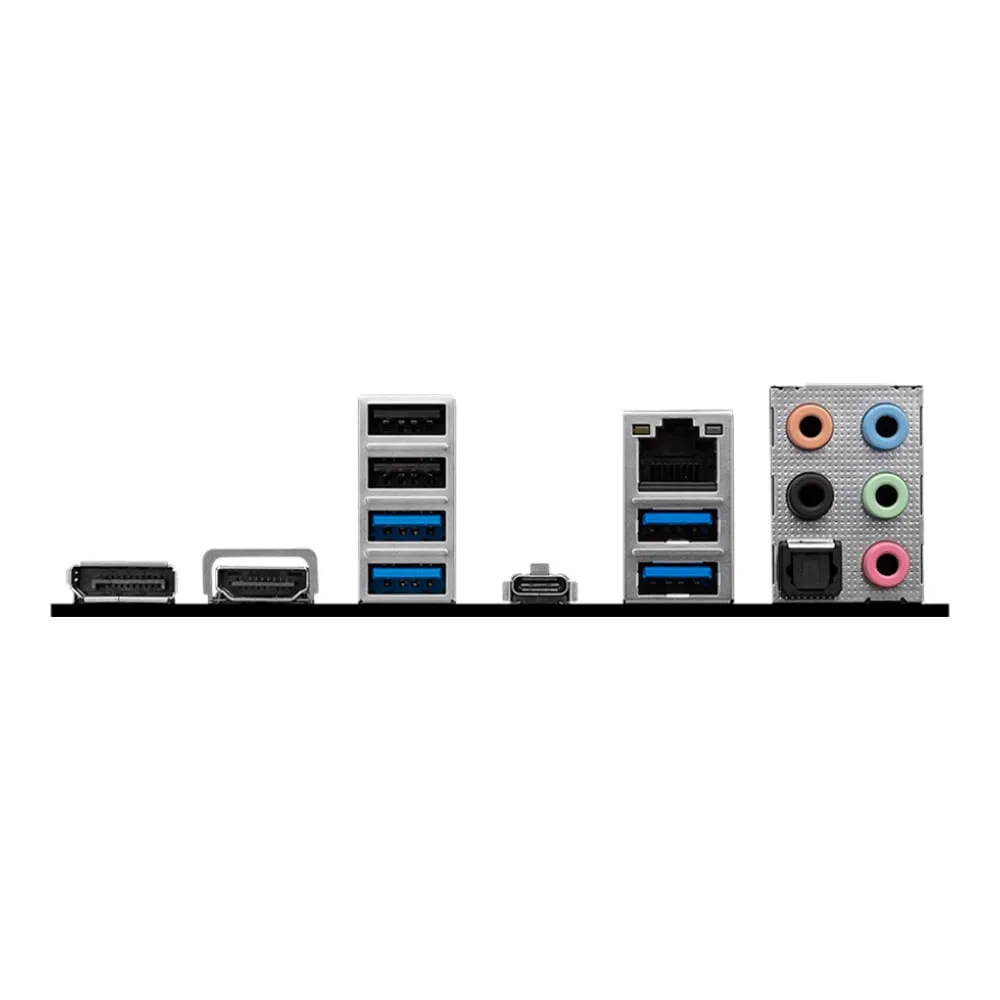

USB 3.2	4 x USB 3.2 Gen 1 5Gbps Type-A 1 x USB 3.2 Gen 2×2 20Gbps Type-C Port
D-Sub (VGA)	– Port
DVI	– Port
HDMI	1 Port
DisplayPort	1 Port
Audio	5 x Audio jacks 1 x Optical S/PDIF out Port
PS/2	No
Additional	No
LAN	1 Port
Form Factor	ATX
Power Connector	24 + 8 + 8 Pin
Dimension	30.4 x 24.3 cm
การรับประกัน	3 Years
