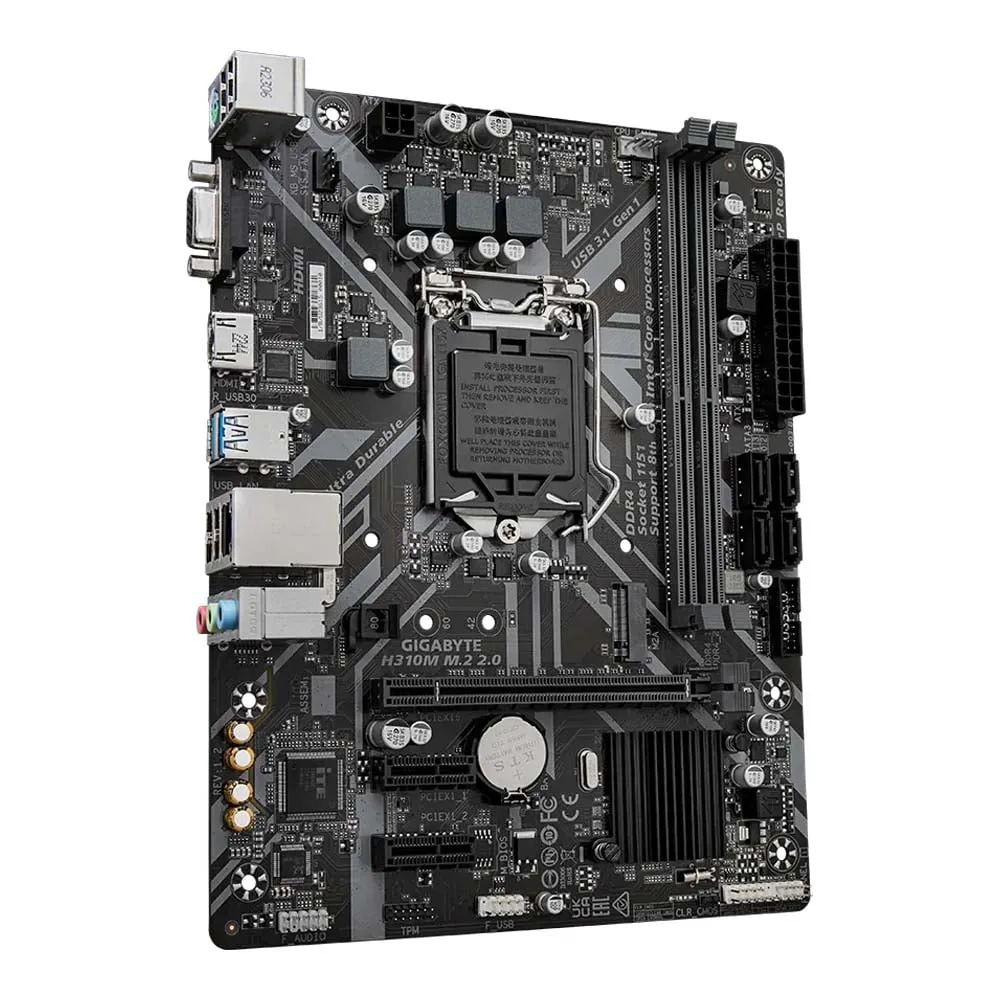

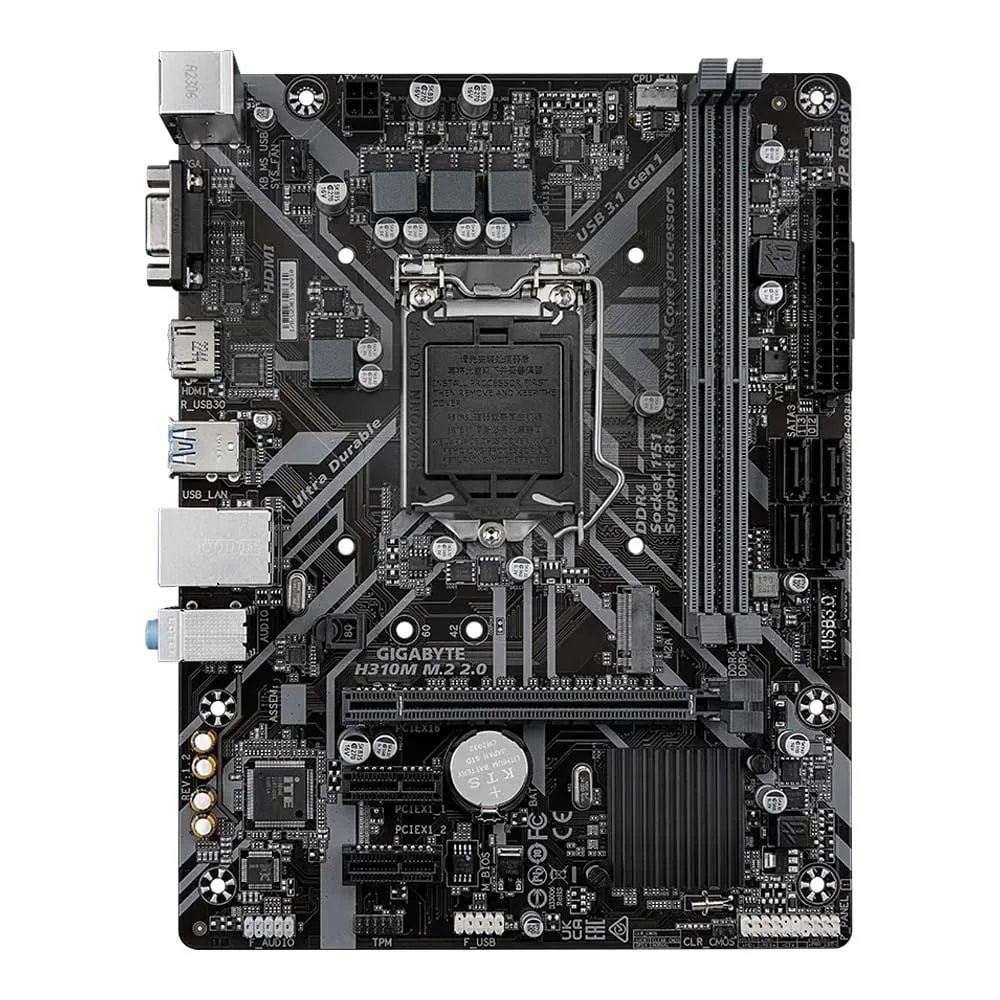

MAINBOARD (เมนบอร์ด) GIGABYTE H310M M.2 2.0 (REV. 1.2) (INTEL SOCKET 1151 DDR4 MICRO-ATX)
รหัสสินค้า : 1107000087
฿2,100
โทรสอบถามราคา
การรับประกัน :
Data Sheet :
1107000087_datasheet.pdf
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
ติดต่อสอบถามราคาพิเศษ
Line :
Tel : 099-495-8880
Facebook : https://www.facebook.com/gtoengineer/
Email : support@gtoengineer.com
อัปเดตล่าสุด : 3 months ago
| Product Type | Mainboard |
| Brand | Gigabyte |
| Model | H310M M.2 2.0 (rev. 1.2) |
| Socket | 1151 (8th Gen – Coffee Lake) , 1151 (9th Gen – Coffee Lake Refresh) |
| Wattage | 127W |
| Chipset | Intel H310 |
| Series | Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium |
| Slot | 2 |
| Memory Type | DDR4 |
| Max. Capacity | 32 GB |
| Speed | 2133 , 2400 , 2666 |
| Graphic | Requires a CPU with Integrated Graphics. — Integrated Graphics Processor-Intel HD Graphics support: • 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz • 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB |
| Audio | Realtek Audio codec |
| Audio Detail | – High Definition Audio – 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| SATA 2 | – Port |
| SATA 3 | 4 Port |
| RAID | No |
| M.2 | Chipset: • 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support) Port |
| Details | • 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) — • 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Slot | 1 x PCIe 3.0 x16 Slot , 2 x PCIe 2.0 x1 Slots |
| LAN | Realtek 1Gb Ethernet |
| LAN Speed | 10/100/1000 Mbps |
| Wireless | No |
| USB 2.0 | 4 Port |
| USB 3.0 | – Port |
| USB 3.1 | – Port |
| Serial | – Port |
| USB 3.2 | 2 x USB 3.1 Gen 1 Type-A Port |
| D-Sub (VGA) | 1 Port |
| DVI | – Port |
| HDMI | 1 Port |
| DisplayPort | – Port |
| Audio | 3 Port |
| PS/2 | 1 (Keyboard/Mouse combo) Port |
| Additional | No |
| LAN | 1 Port |
| Form Factor | Micro-ATX |
| Power Connector | 24 + 4 Pin |
| Dimension | 22.6 x 17.4 cm |
| การรับประกัน | 3 Years |
