Product Type	Mainboard
Brand	Asus
Model	ROG STRIX Z790-E GAMING WIFI II
Socket	1700 (12th Gen – Alder Lake) , 1700 (13th Gen – Raptor Lake) , 1700 (14th Gen – Raptor Lake Refresh)
Wattage	150W
Chipset	Intel Z790
Series	Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium
Slot	4
Memory Type	DDR5
Max. Capacity	192 GB
Speed	4800 , 5000 , 5000 (OC) , 5200 , 5200 (OC) , 5400 , 5400 (OC) , 5600 , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) , 8000 (OC)
Graphic	Requires a CPU with Integrated Graphics. — • 1 x DisplayPort • 1 x HDMI port* — * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 8K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specifiead in HDMI 2.1. **** VGA resolution support depends on processors’ or graphic cards’ resolution.
Audio	ROG SupremeFX ALC4080*
Audio Detail	• 7.1 Surround Sound High Definition Audio • Impedance sense for front and rear headphone outputs • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input • Supports up to 32-Bit/384 kHz playback on front panel — * The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
SATA 2	– Port
SATA 3	4 Port
RAID	Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
M.2	5 x M.2 slots — Intel CoreTM Processors (14th & 13th & 12th Gen) • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) — Intel Z790 Chipset • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) • M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) • M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) Port
Details	Intel Core Processors (14th & 13th & 12th Gen)* 1 x PCIe 5.0 x16 slot (support x16 mode)** • — Intel Z790 Chipset • 2 x PCIe 4.0 x16 slots (support x4 mode) — * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only. – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Slot	1 x PCIe 5.0 x16 Slot , 2 x PCIe 4.0 x16 Slot
LAN	Intel 2.5Gb Ethernet
LAN Speed	100/1000/2500 Mbps
Wireless	• Intel Wi-Fi 7* – 2×2 Wi-Fi 7 (802.11be) – Supports 2.4/5/6GHz frequency band* – Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate. • Bluetooth v5.4**** — * Compatible with Windows 11 or later. Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB 2.0	– Port
USB 3.0	– Port
USB 3.1	– Port
Serial	– Port
USB 3.2	1 x USB 20Gbps port (1 x USB Type-C) 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C) Port
D-Sub (VGA)	– Port
DVI	– Port
HDMI	1 Port
DisplayPort	1 Port

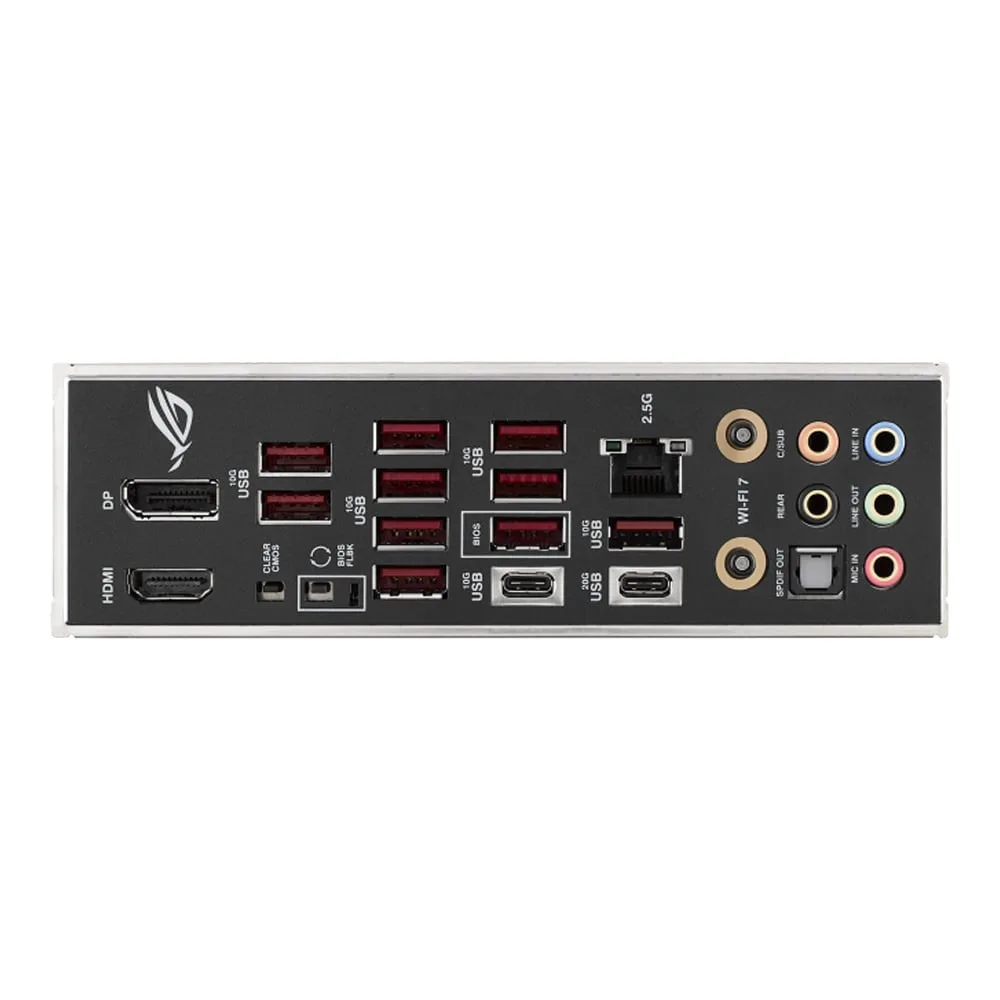

Audio	5 x Audio jacks 1 x Optical S/PDIF out Port
PS/2	No
Additional	1 x Wi-Fi Module 1 x BIOS FlashBack button 1 x Clear CMOS button
LAN	1 Port
Form Factor	ATX
Power Connector	24 + 8 + 8 Pin
Dimension	30.5 x 24.4 cm
การรับประกัน	3 Years

MAINBOARD (เมนบอร์ด) ASUS ROG STRIX Z790-E GAMING WIFI II (SOCKET LGA 1700 DDR5 ATX)
