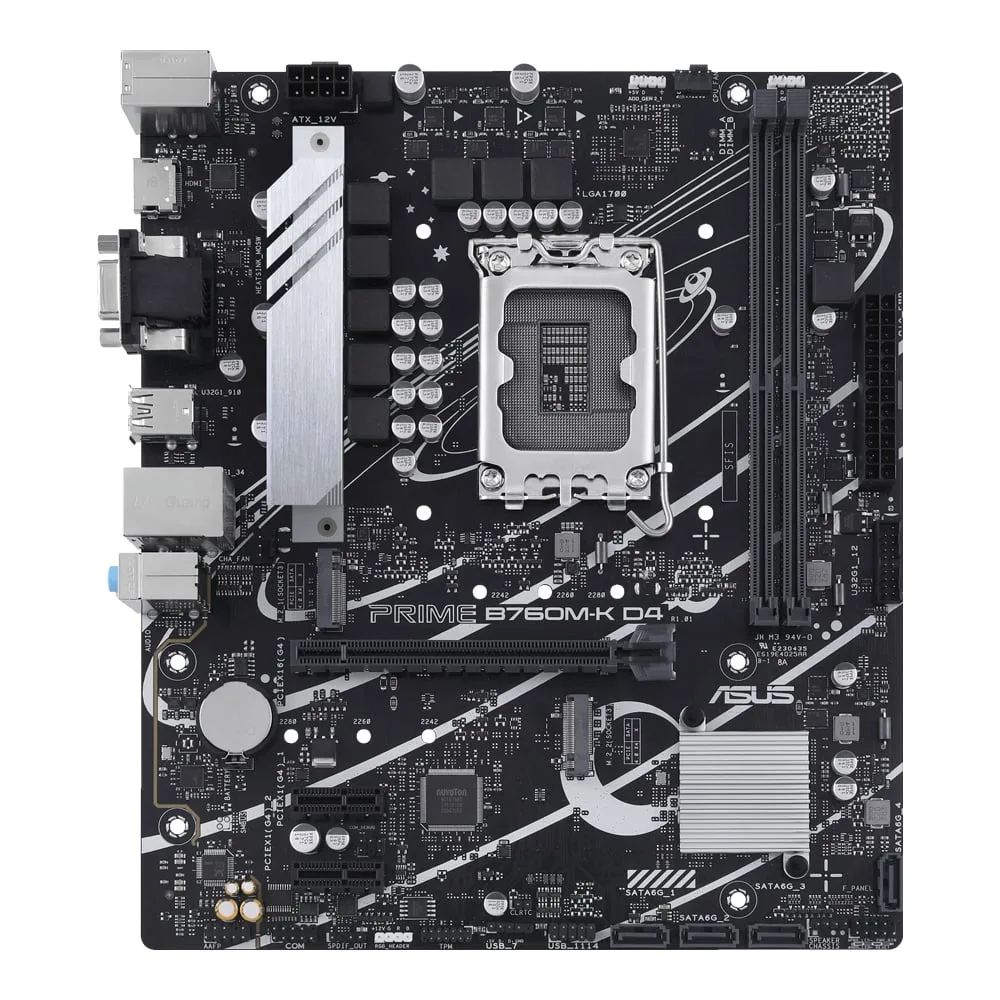

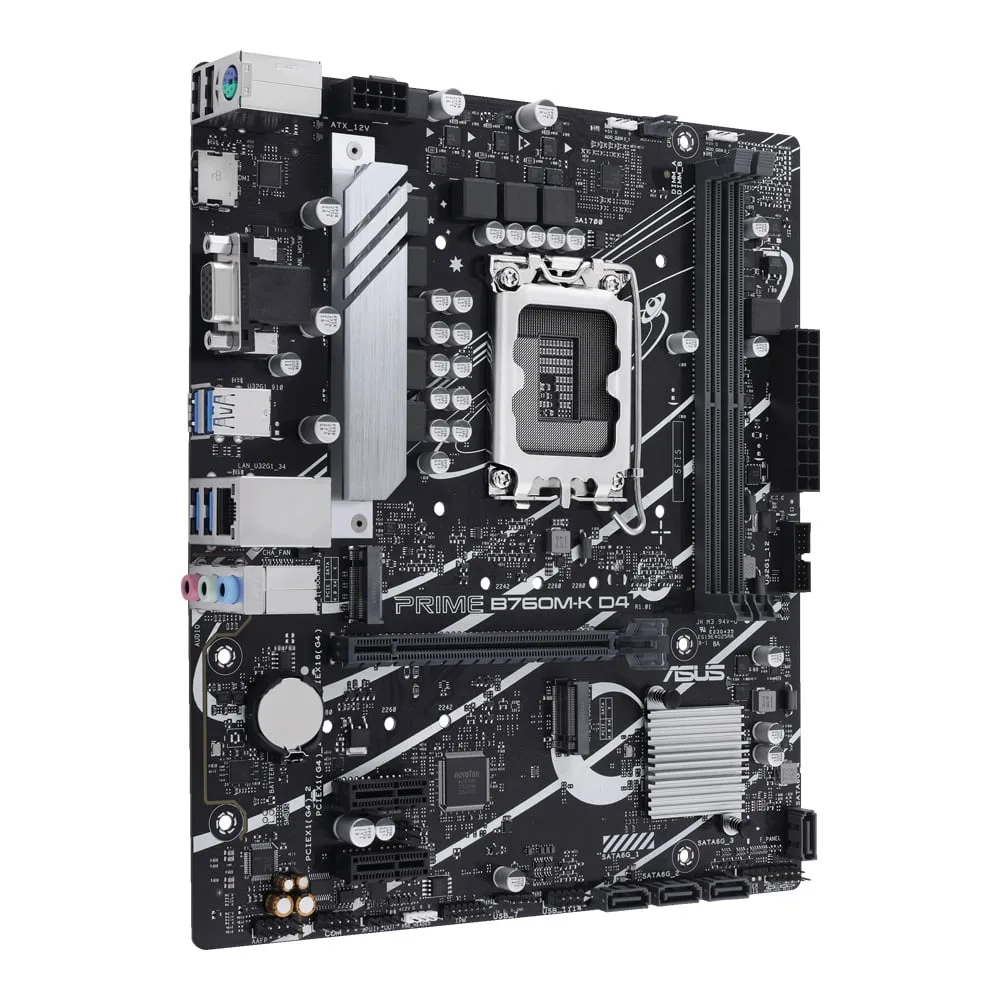

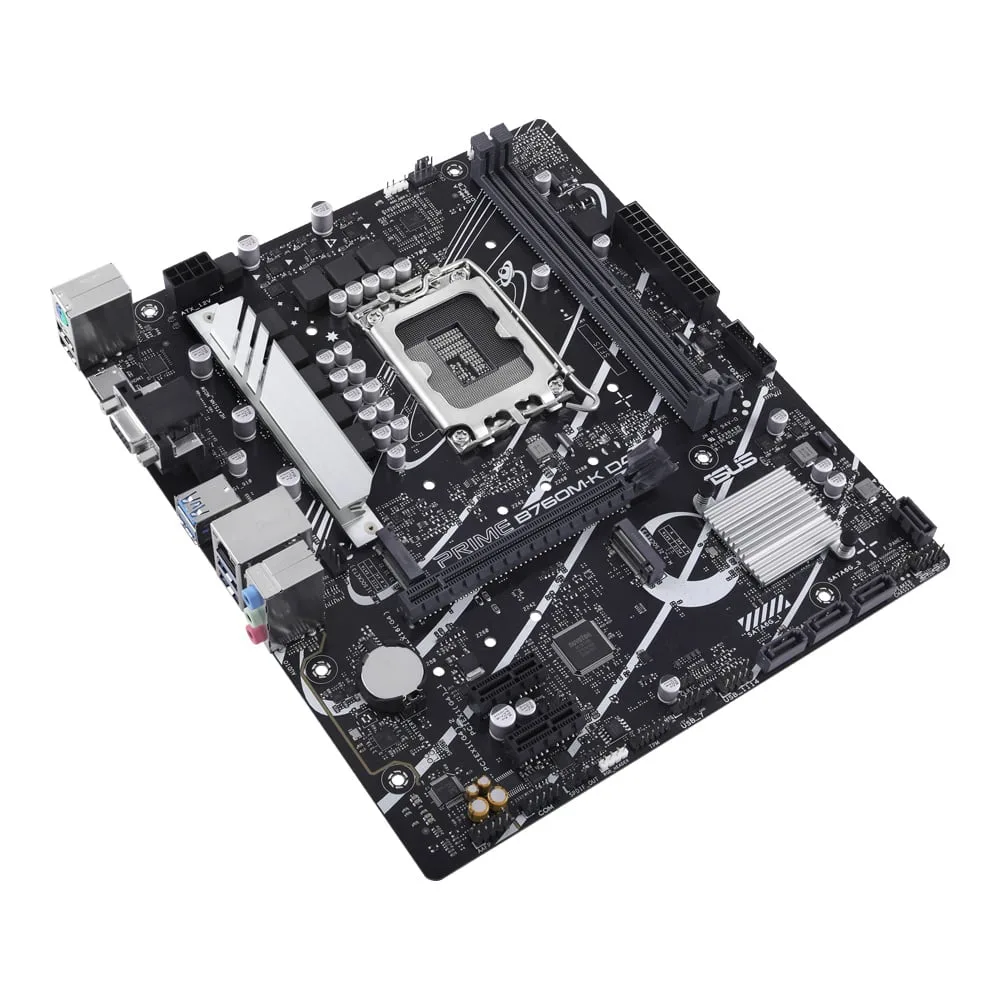

| Product Type | Mainboard |
| Brand | Asus |
| Model | PRIME B760M-K D4-CSM |
| Socket | 1700 (12th Gen – Alder Lake) , 1700 (13th Gen – Raptor Lake) , 1700 (14th Gen – Raptor Lake Refresh) |
| Wattage | 125W |
| Chipset | Intel B760 |
| Series | Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium |
| Slot | 2 |
| Memory Type | DDR4 |
| Max. Capacity | 64 GB |
| Speed | 2133 , 2400 , 2666 , 2800 , 2933 , 3000 , 3000 (OC) , 3200 , 3200 (OC) , 3333 (OC) , 3400 (OC) , 3466 (OC) , 3600 (OC) , 3733 (OC) , 4000 (OC) , 4266 (OC) , 4400 (OC) , 4600 (OC) , 4800 (OC) , 5000 (OC) , 5066 (OC) , 5333 (OC) |
| Graphic | CPU with Integrated Graphics Required — • 1 x VGA port • 1 x HDMI port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1. |
| Audio | Realtek |
| Audio Detail | 7.1 Surround Sound High Definition Audio |
| SATA 2 | – Port |
| SATA 3 | 4 Port |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| M.2 | 2 x M.2 Slot(s) — Intel 13th & 12th Gen Processors • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) — Intel B760 Chipset • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Port |
| Details | Intel 13th & 12th Gen Processors • 1 x PCIe 4.0 x16 slot Intel B760 Chipset • 2 x PCIe 4.0 x1 slots Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Slot | 1 x PCIe 4.0 x16 Slot , 2 x PCIe 4.0 x1 Slot |
| LAN | Realtek 2.5Gb Ethernet |
| LAN Speed | 100/1000/2500 Mbps |
| Wireless | No |

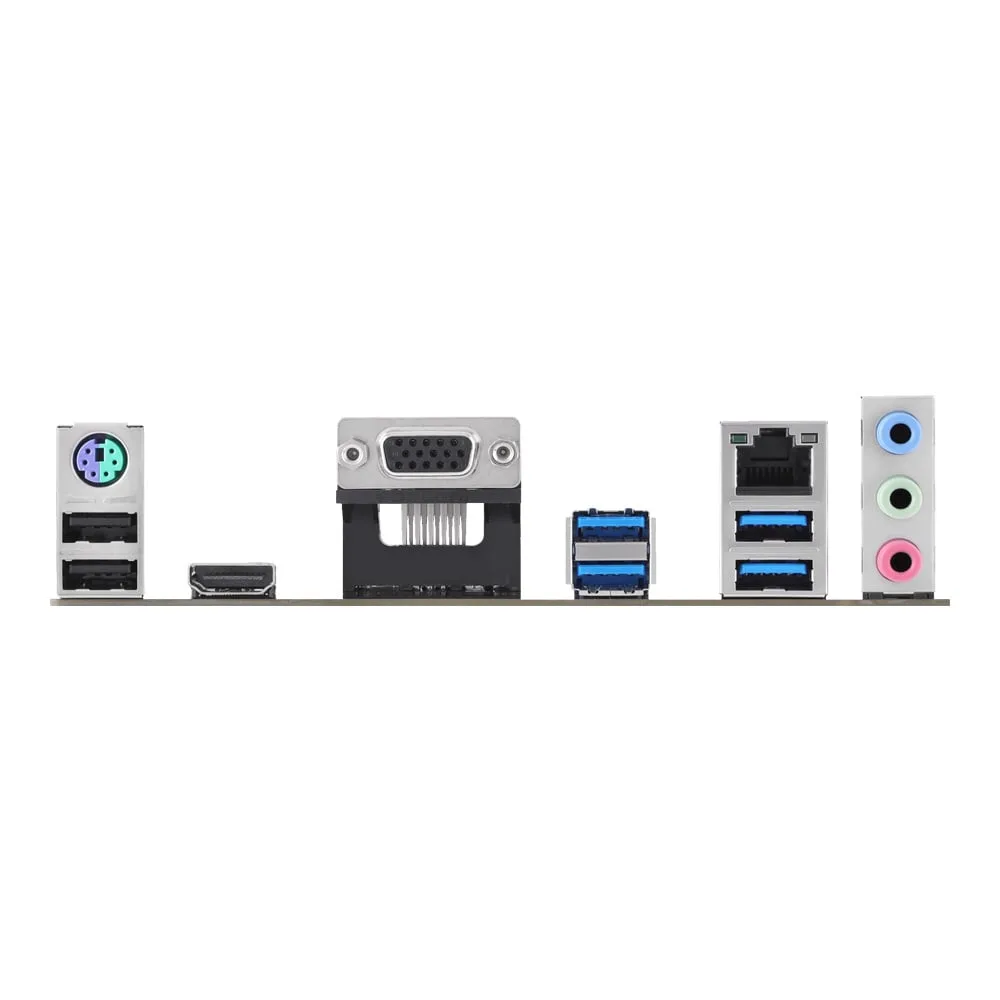

| USB 2.0 | 2 Port |
| USB 3.0 | – Port |
| USB 3.1 | – Port |
| Serial | – Port |
| USB 3.2 | 4 x USB 3.2 Gen 1 Type-A Port |
| D-Sub (VGA) | 1 Port |
| DVI | – Port |
| HDMI | 1 Port |
| DisplayPort | – Port |
| Audio | 3 Port |
| PS/2 | 1 (Keyboard/Mouse combo) Port |
| Additional | No |
| LAN | 1 Port |
| Form Factor | Micro-ATX |
| Power Connector | 24 + 8 Pin |
| Dimension | 24.4 x 21.1 cm |
| การรับประกัน | 3 Years |
