GIGABYTE

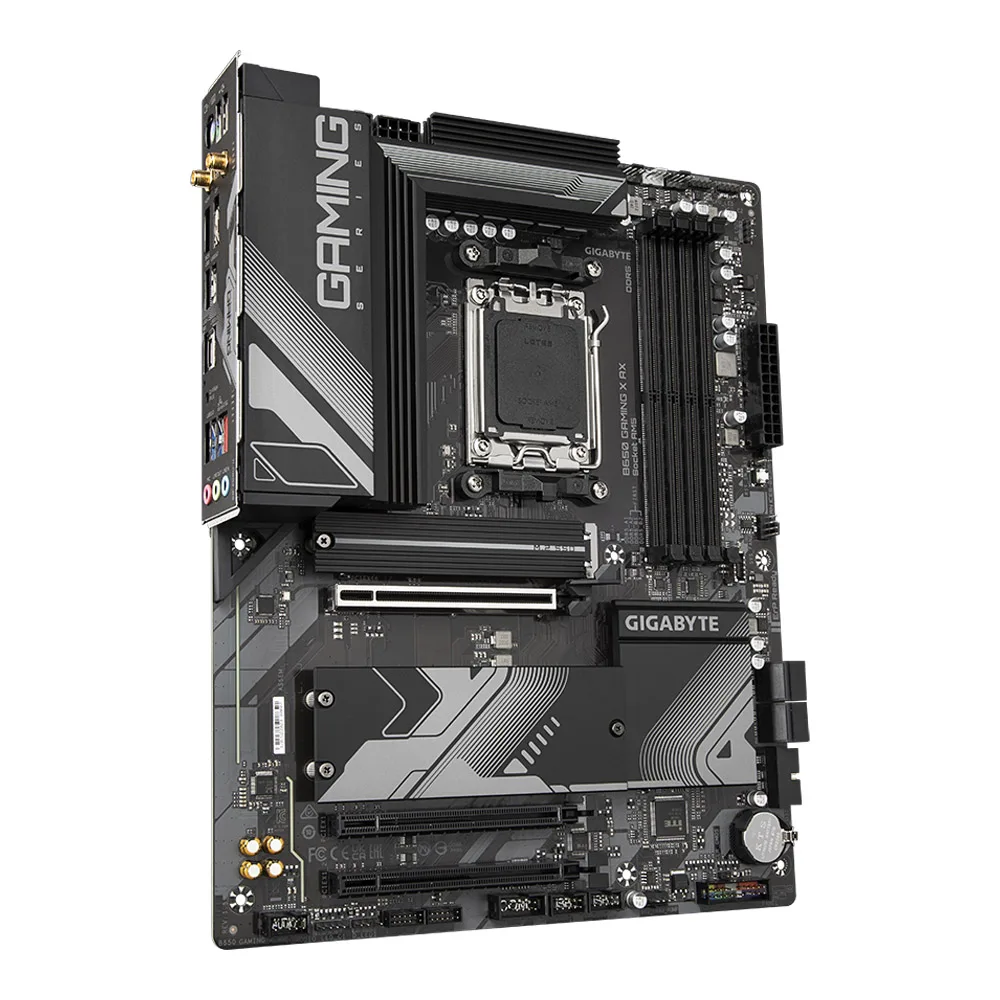

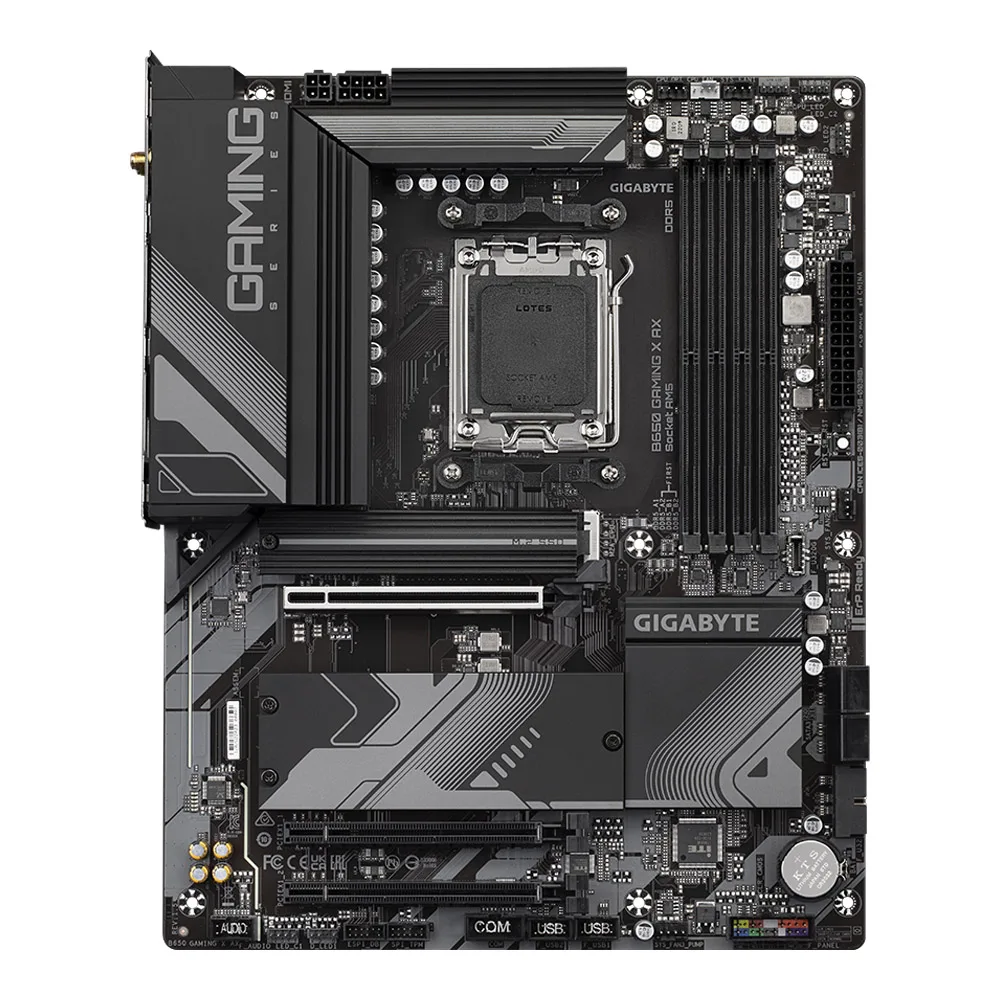

MAINBOARD (เมนบอร์ด) GIGABYTE B650 GAMING X AX (REV. 1.5) (SOCKET AM5 DDR5 ATX)

รหัสสินค้า : 1007000032

฿7,100

โทรสอบถามราคา

การรับประกัน :

Data Sheet :

1007000032_datasheet.pdf

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

ติดต่อสอบถามราคาพิเศษ

Line :
Tel : 099-495-8880
Facebook : https://www.facebook.com/gtoengineer/
Email : support@gtoengineer.com

อัปเดตล่าสุด : 4 months ago

Product Type	Mainboard
Brand	Gigabyte
Model	B650 GAMING X AX (rev. 1.5)
Socket	AM5 (7000 Series – Raphael) , AM5 (8000 / 8000 G Series – Phoenix) , AM5 (9000 Series – Granite Ridge)
Wattage	170W
Chipset	AMD B650
Series	Ryzen 5 , Ryzen 7 , Ryzen 9
Slot	4
Memory Type	DDR5
Max. Capacity	192 GB
Speed	4400 , 4800 , 5200 , 5200 (OC) , 5600 , 6000 , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7600 (OC) , 7800 (OC) , 8000 (OC)
Graphic	Requires a CPU with Integrated Graphics. — Integrated Graphics Processor with AMD Radeon Graphics support: • 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. — (Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC
Audio Detail	• High Definition Audio • 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
SATA 2	– Port
SATA 3	4 Port
RAID	• RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
M.2	3 x M.2 Connectors — • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: – AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs (PCB rev. 1.0/1.1) – AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs (PCB rev. 1.2/1.3/1.4/1.5) – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs* * Only for PCB rev. 1.5 or later. AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDss* * Only for PCB rev. 1.5 or later. • 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: – AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs* * Only for PCB rev. 1.5 or later. AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs* * Only for PCB rev. 1.5 or later. — Chipset: • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) Port
Details	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: • AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode* * Only for PCB rev. 1.5 or later. • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* * Only for PCB rev. 1.5 or later. ** The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. — Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Slot	1 x PCIe 4.0 x16 Slot , 2 x PCIe 3.0 x16 Slots
LAN	Realtek 2.5Gb Ethernet
LAN Speed	100/1000/2500 Mbps
Wireless	Realtek Wi-Fi 6E RTL8852CE • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands • Bluetooth 5.3 • Support for 11ax 160MHz wireless standard — (Actual data rate may vary depending on environment and equipment.)
USB 2.0	3 Port
USB 3.0	– Port
USB 3.1	– Port
Serial	– Port

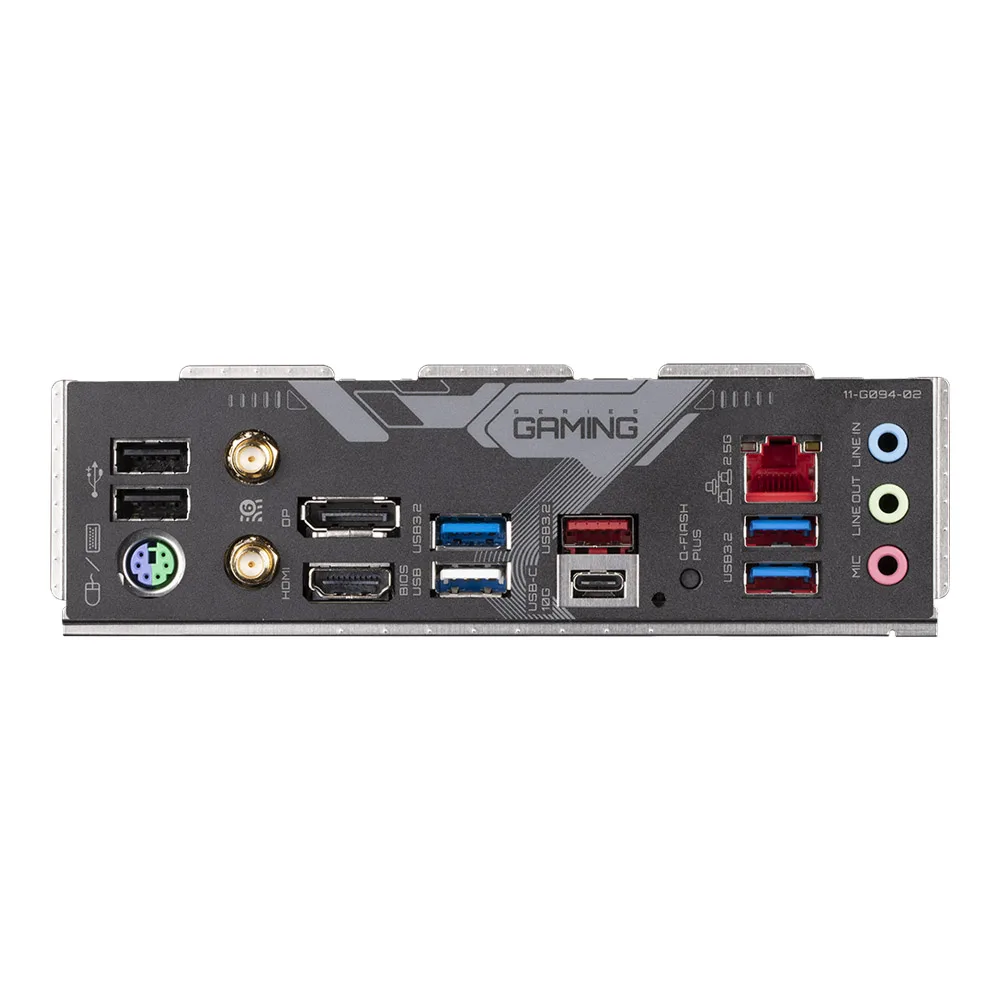

USB 3.2	1 x USB 3.2 Gen 2 Type-C 1 x USB 3.2 Gen 2 Type-A (red) 3 x USB 3.2 Gen 1 Type-A Port
D-Sub (VGA)	– Port
DVI	– Port
HDMI	1 Port
DisplayPort	1 Port
Audio	3 Port
PS/2	No
Additional	2 x SMA antenna connectors (2T2R) 1 x Q-Flash Plus button
LAN	1 Port
Form Factor	ATX
Power Connector	24 + 4 + 8 Pin
Dimension	30.5 x 24.4 cm
การรับประกัน	3 Years
