Product Type	Mainboard
Brand	MSI
Model	MPG Z890 CARBON WIFI
Socket	1851 (Arrow Lake-S)
Wattage	125W
Chipset	Intel Z890
Series	Core Ultra 5 , Core Ultra 7 , Core Ultra 9
Slot	4
Memory Type	DDR5
Max. Capacity	256 GB
Speed	4800 , 5200 , 5200 (OC) , 5600 , 5600 (OC) , 5800 , 5800 (OC) , 6000 , 6000 (OC) , 6200 , 6200 (OC) , 6400 , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) , 8000 (OC) , 8200 (OC) , 8400 (OC) , 8600 (OC) , 8800 (OC) , 9000 (OC) , 9200 (OC)
Graphic	Requires a CPU with Integrated Graphics. — • 1 x HDMI Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* • 2 x Type-C DisplayPort ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* — *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio	Realtek ALC1220P Codec
Audio Detail	– 7.1-Channel USB High Defination Audio – Supports S/PDIF output
SATA 2	– Port
SATA 3	4 Port
RAID	– Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices – Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices
M.2	5 x M.2 — • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices • M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices — *Please refer to the manual for M.2 SSD heatsink restrictions. Port
Details	3 x PCI-E x16 slot • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) • PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) — • PCI_E1 supports BIOS adjustment to x8+x4+x4* • PCI_E2 supports BIOS adjustment to x4+x4*
Slot	1 x PCIe 5.0 x16 Slot , 2 x PCIe 4.0 x16 Slot
LAN	1 x Intel Killer E5000B 5G LAN 1 x Intel I226V 2.5G LAN
LAN Speed	1 x 100 / 1000 / 2500 / 5000 Mbps 1 x 100 / 1000 / 2500 Mbps
Wireless	Intel Killer BE1750x Wi-Fi 7 – The Wireless module is pre-installed in the M.2 (Key-E) slot – Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps – Supports 802.11 a/ b/ g/ n/ ac/ ax/ be – Supports Bluetooth 5.4*, MLO, 4KQAM — 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
USB 2.0	– Port
USB 3.0	– Port
USB 3.1	– Port
Serial	– Port

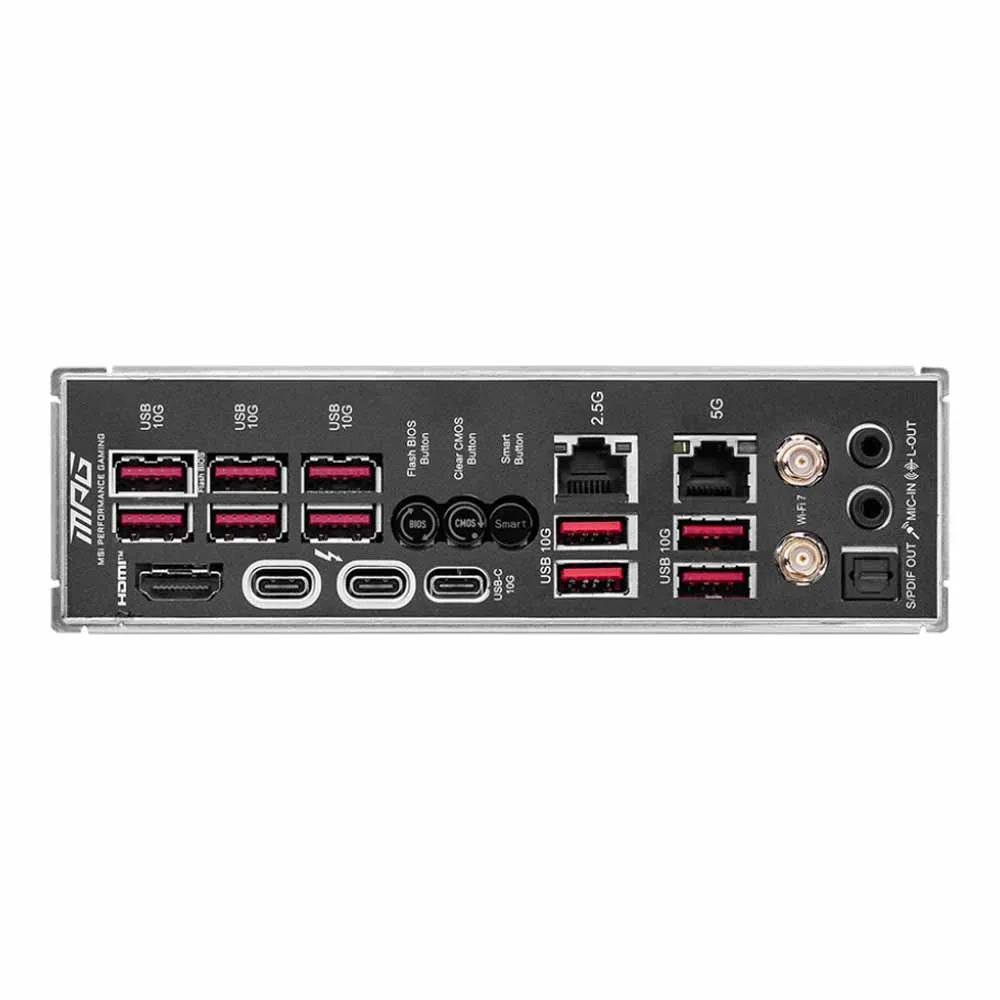

USB 3.2	2 x Thunderbolt 4 USB-C – Supports up to 40Gbps transfer rate with Thunderbolt devices – Supports up to 20Gbps transfer rate with USB devices – Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices 1 x USB 10Gbps Type-C 2 x USB 10Gbps Type-A 8 x USB 10Gbps Type-A Port
D-Sub (VGA)	– Port
DVI	– Port
HDMI	– Port
DisplayPort	– Port
Audio	2 x Audio jacks 1 x Optical S/PDIF out Port
PS/2	No
Additional	1 x Clear CMOS button 1 x Flash BIOS button 1 x Smart button 2 x Wi-Fi Antenna connectors
LAN	2 Port
Form Factor	ATX
Power Connector	24 + 8 + 8 Pin
Dimension	30.5 x 24.4 cm
การรับประกัน	3 Years

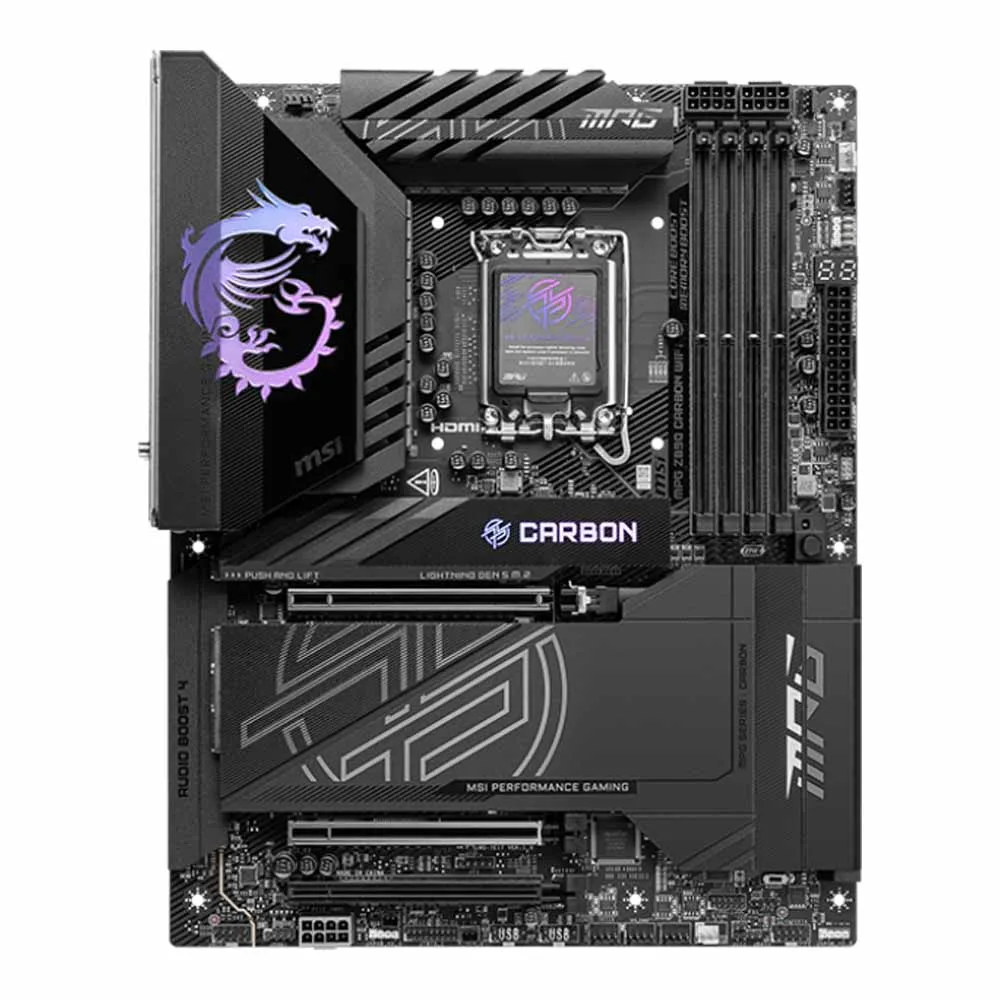

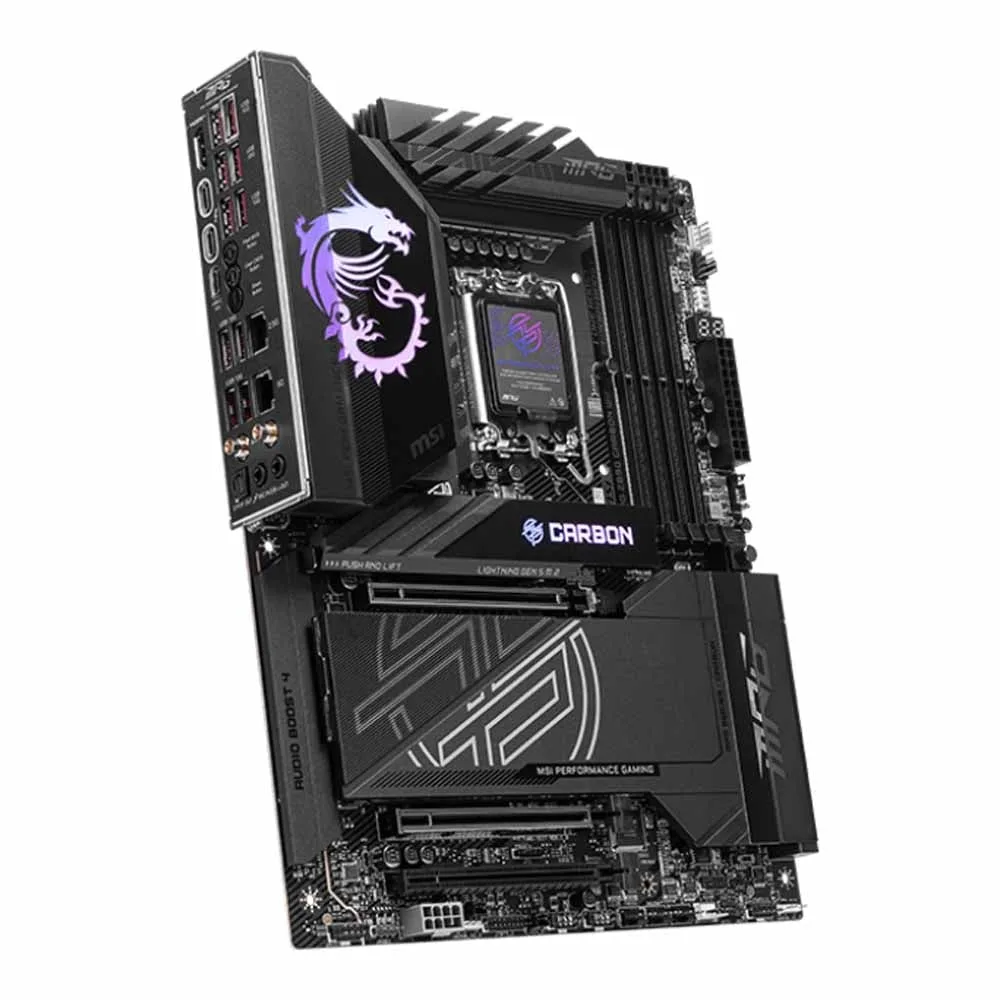

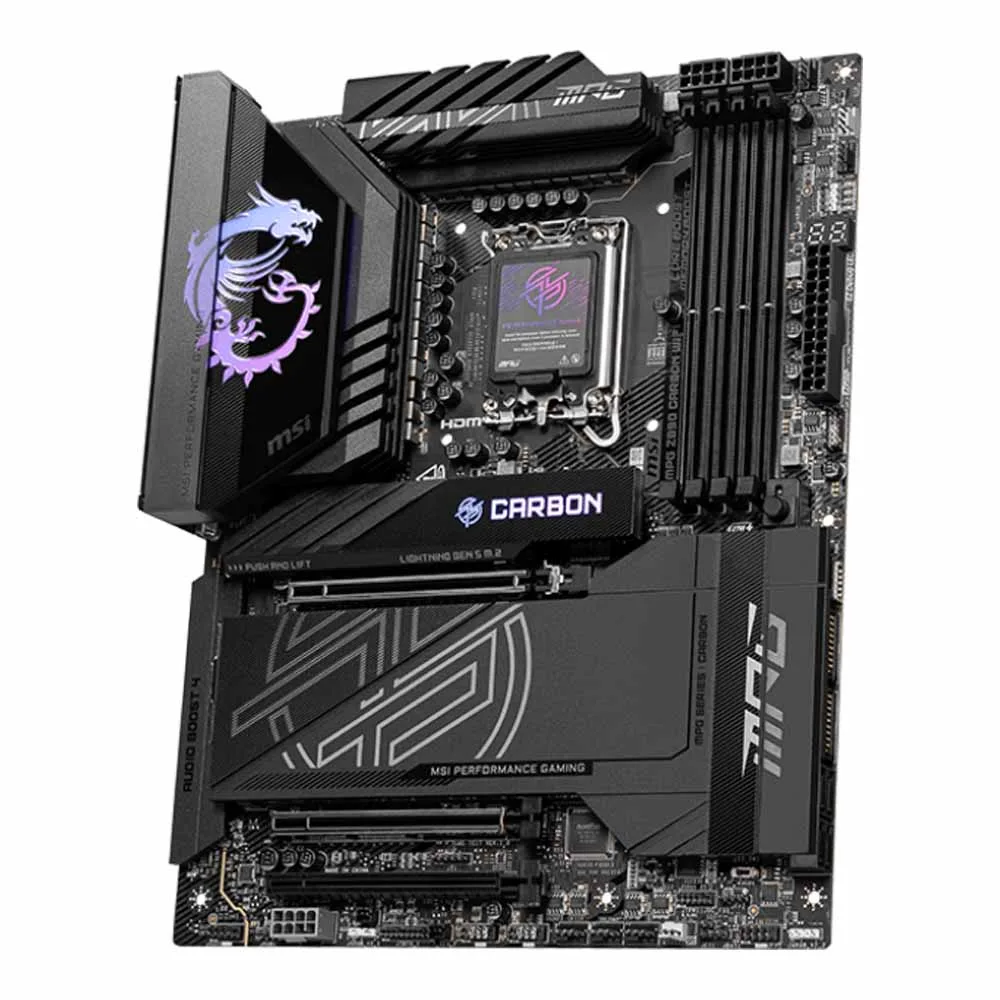

MAINBOARD (เมนบอร์ด) MSI MPG Z890 CARBON WIFI (INTEL SOCKET 1851 DDR5 ATX)
