GIGABYTE

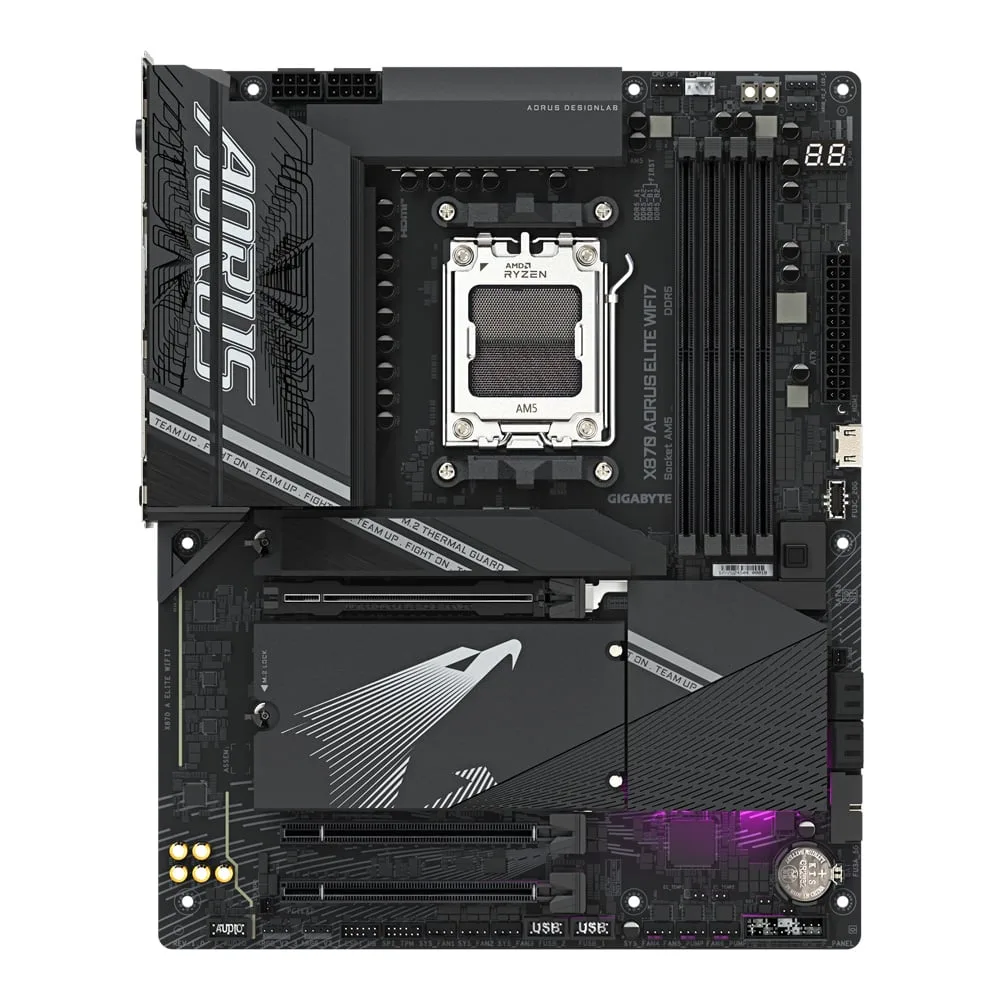

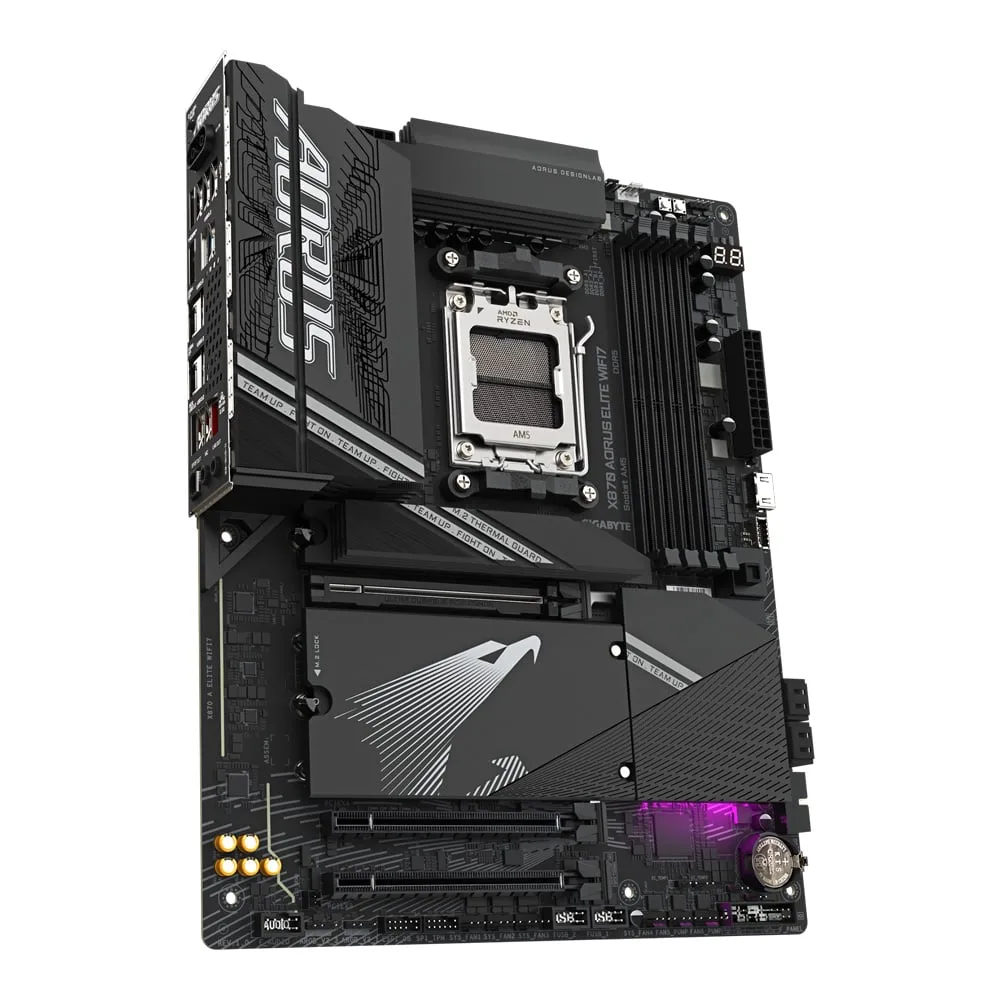

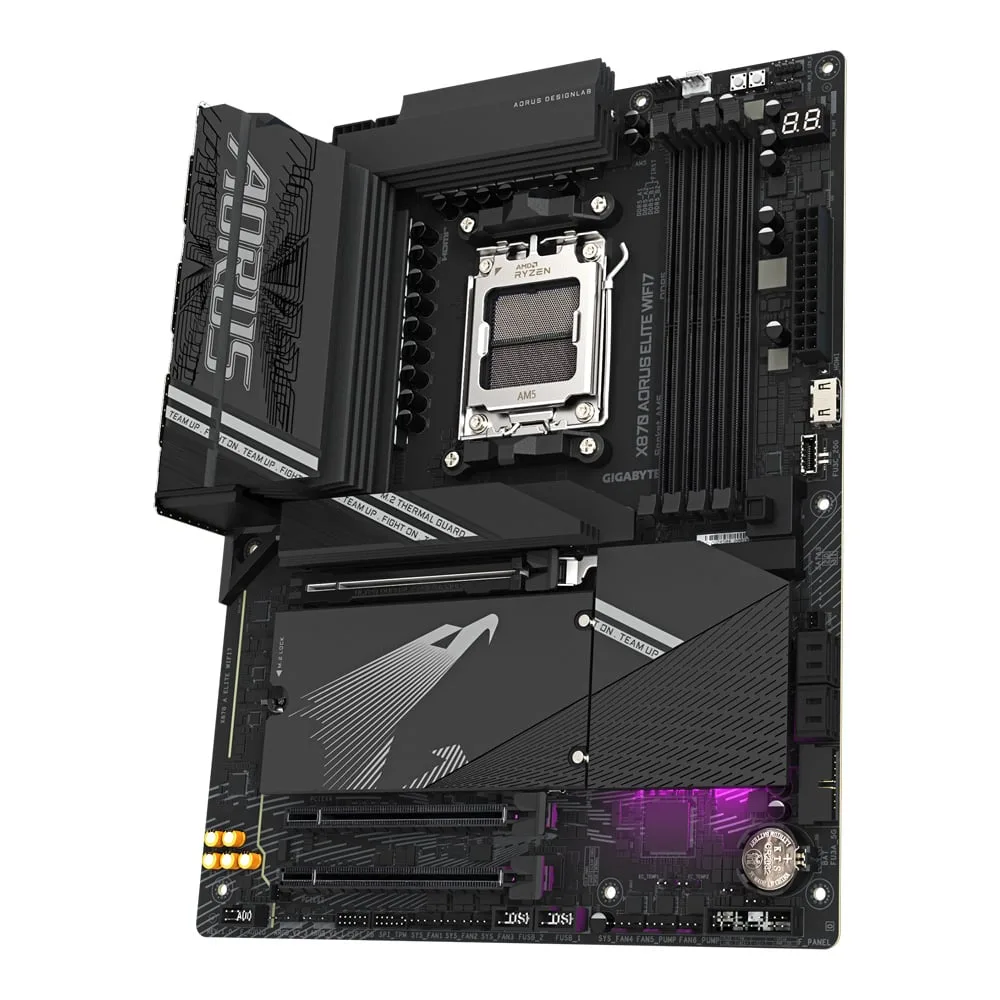

MAINBOARD (เมนบอร์ด) GIGABYTE X870 AORUS ELITE WIFI7 (REV. 1.0) (AMD SOCKET AM5 DDR5 ATX)

รหัสสินค้า : 1007000092

฿11,200

โทรสอบถามราคา

การรับประกัน :

Data Sheet :

1007000092_datasheet.pdf

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

ติดต่อสอบถามราคาพิเศษ

Line :
Tel : 099-495-8880
Facebook : https://www.facebook.com/gtoengineer/
Email : support@gtoengineer.com

อัปเดตล่าสุด : 4 months ago

Product Type	Mainboard
Brand	Gigabyte
Model	X870 AORUS ELITE WIFI7
Socket	AM5 (7000 Series – Raphael) , AM5 (8000 / 8000 G Series – Phoenix) , AM5 (9000 Series – Granite Ridge)
Wattage	170W
Chipset	AMD X870
Series	Ryzen 3 , Ryzen 5 , Ryzen 7 , Ryzen 9
Slot	4
Memory Type	DDR5
Max. Capacity	256 GB
Speed	4400 , 4800 , 5200 , 5200 (OC) , 5600 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6666 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7600 (OC) , 7800 (OC) , 8000 (OC)
Graphic	Requires a CPU with Integrated Graphics. — Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: • 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz * Support for DisplayPort 1.4 version and HDR. — Integrated Graphics Processor with AMD Radeon Graphics support: • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support native HDMI 2.1 TMDS compatible ports. — • 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz * Support for HDMI 1.4 version — (Graphics specifications may vary depending on CPU support.) Support for up to quad-display at the same time
Audio	Realtek ALC1220 CODEC
Audio Detail	– High Definition Audio – 2/4/5.1/7.1-channel – Support for S/PDIF Out * The back panel line out jack supports DSD audio. * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
SATA 2	– Port
SATA 3	4 Port
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
M.2	4 x M.2 Connectors — • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: – AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs — • 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: – AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used. — • 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs Port
Details	• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) — Chipset: • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector. • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Slot	1 x PCIe 3.0 x16 Slot , 1 x PCIe 4.0 x16 Slot , 1 x PCIe 5.0 x16 Slot
LAN	Realtek 2.5GbE LAN
LAN Speed	100/1000/2500 Mbps
Wireless	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – Bluetooth 5.4 – Support for 11be 160MHz wireless standard — (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) **Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.
USB 2.0	4 Port
USB 3.0	– Port
USB 3.1	– Port
Serial	– Port

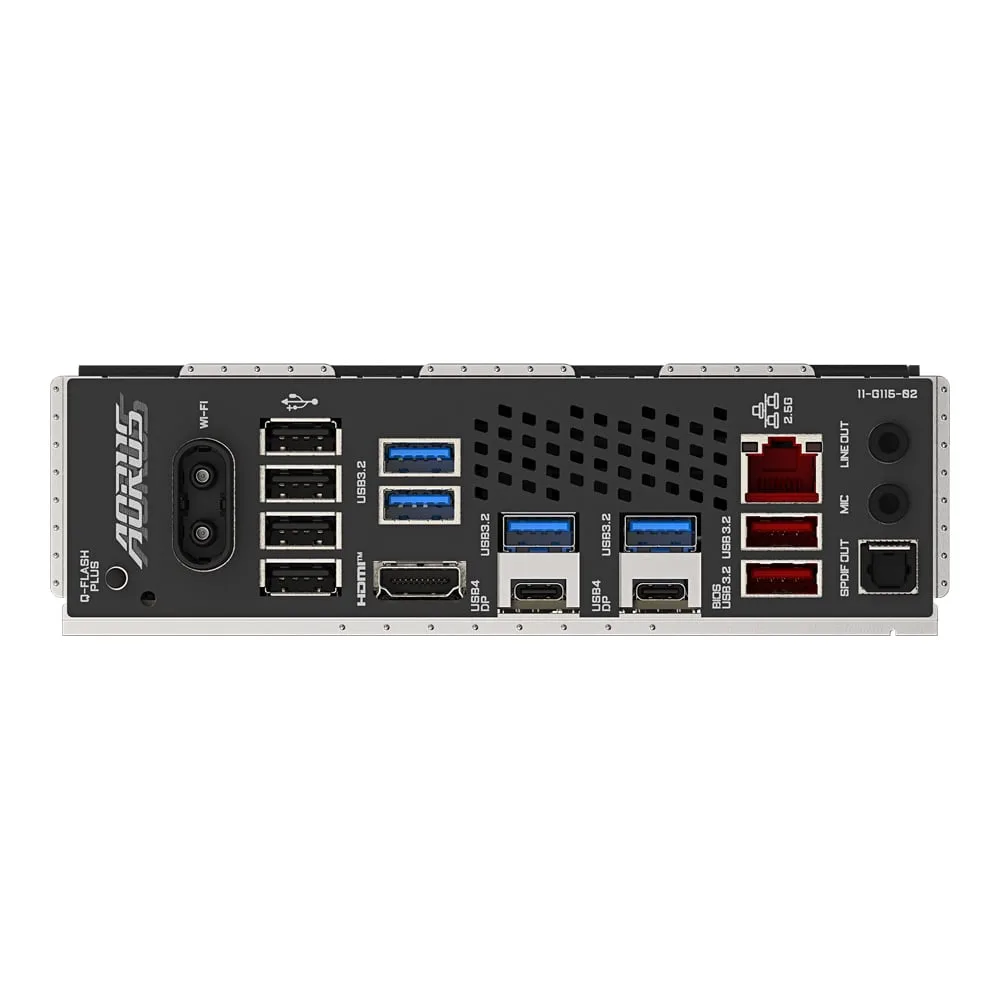

USB 3.2	2 x USB4 USB Type-C (Display(Note)) (Note) Actual support may vary by CPU. 2 x USB 3.2 Gen 2 Type-A (red) 4 x USB 3.2 Gen 1 Type-A Port
D-Sub (VGA)	– Port
DVI	– Port
HDMI	1 Port
DisplayPort	– Port
Audio	2 x Audio jacks 1 x Optical S/PDIF out Port
PS/2	No
Additional	1 x Q-Flash Plus button 2 x antenna connectors (2T2R)
LAN	1 Port
Form Factor	ATX
Power Connector	24 + 8 + 8 Pin
Dimension	30.5 x 24.4 cm
การรับประกัน	3 Years
