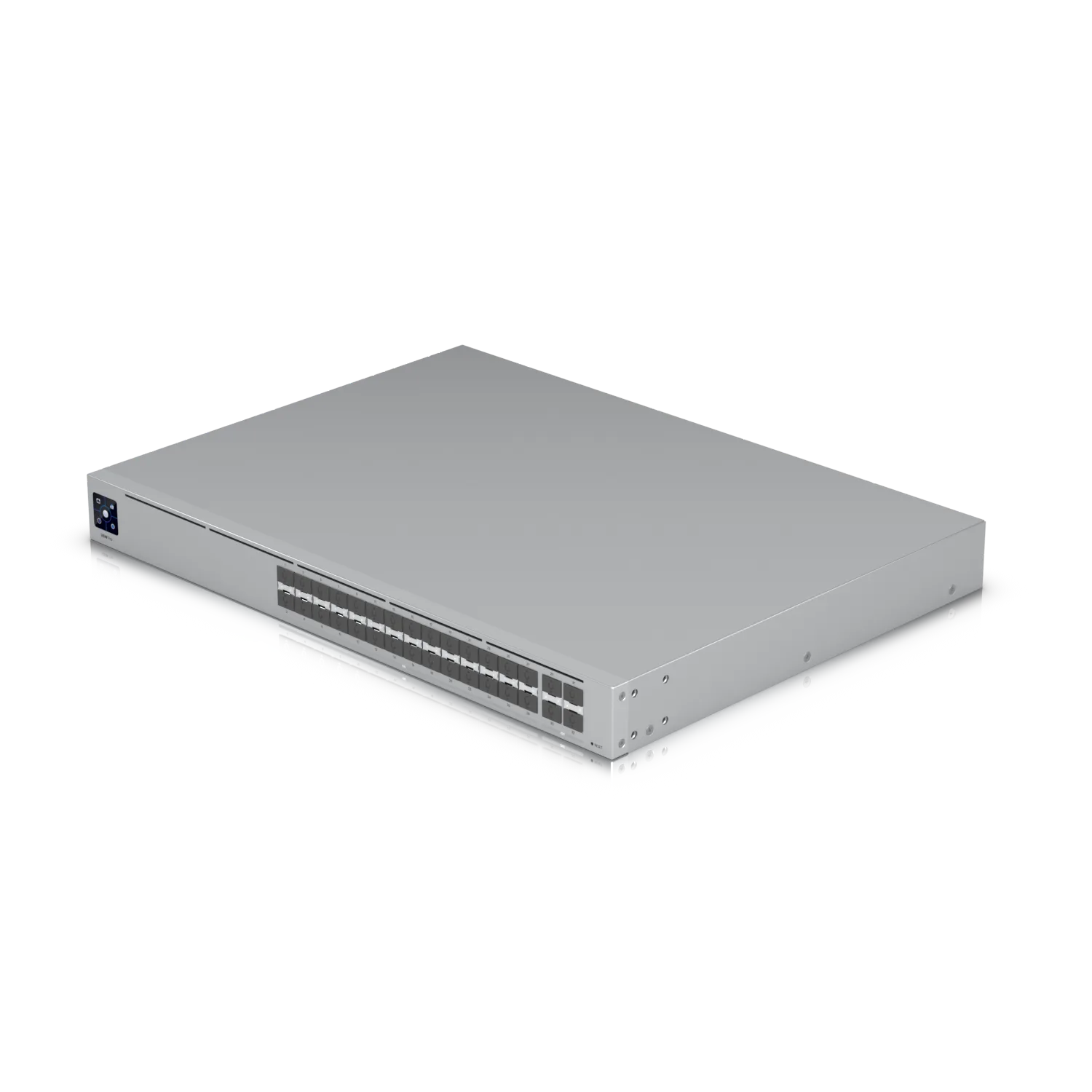

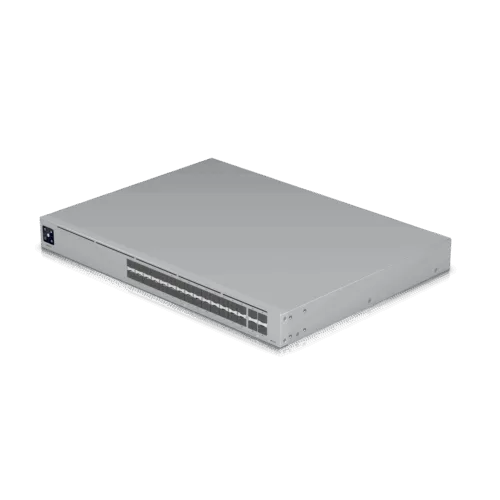

Ubiquiti Hub & Switch USW-PRO-AGGREGATION Hi-Capacity Aggregation 32-port Layer 3 switch made for high-capacity 10G SFP+ and 25G SFP28 connections.

Hi-Capacity Aggregation, 32-port, Layer 3 switch made for high-capacity 10G SFP+ and 25G SFP28 connections.
– (28) 10G SFP+ ports
– (4) 25G SFP28 ports
– DC power backup-ready
– Layer 3 switching
– Switching capacity 760 Gbps
Overview
Dimensions
442 x 325 x 44 mm
(17.4 x 12.8 x 1.7″)

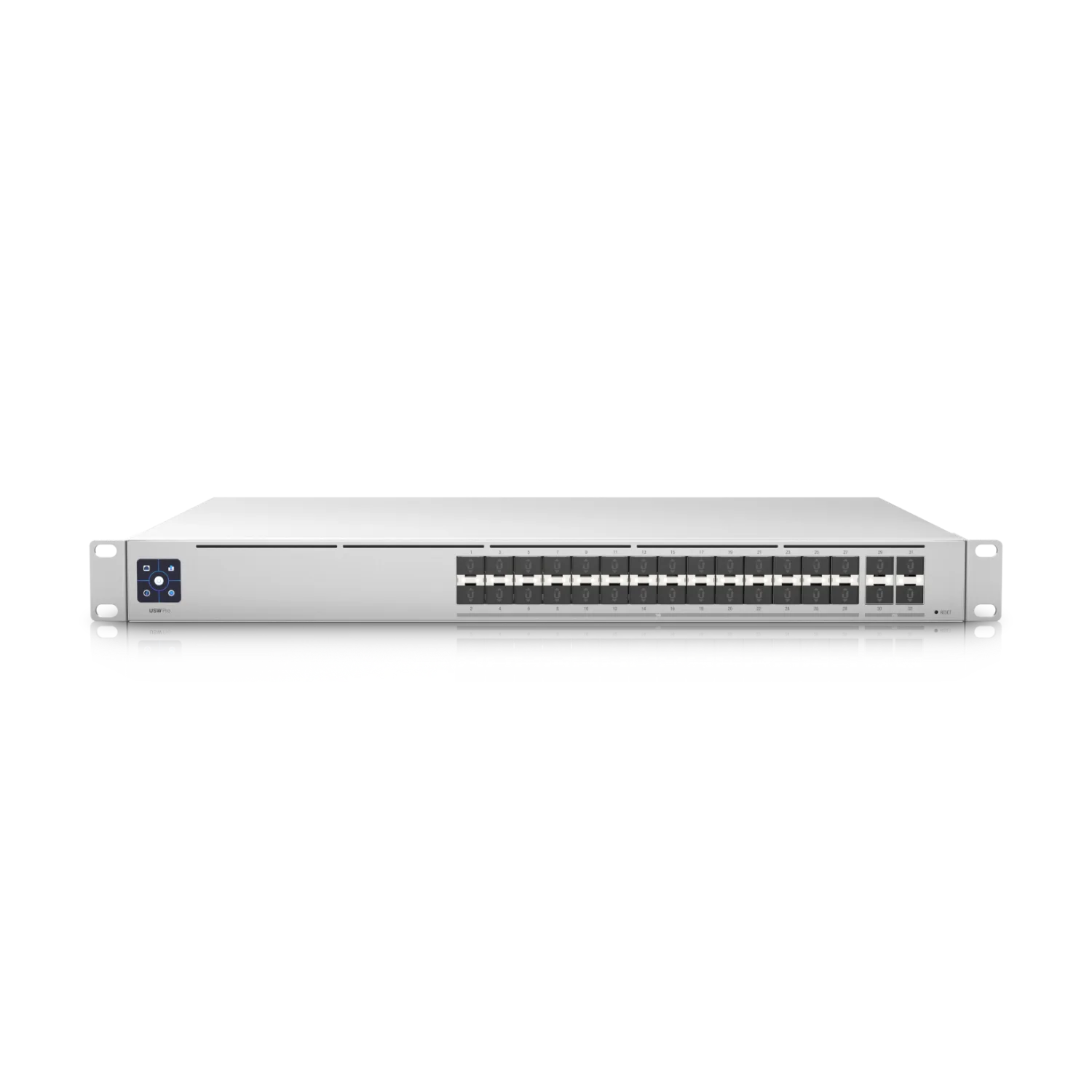

Port Layout
10G SFP+
28
25G SFP28
4
Redundancy
DC Power Backup
Layer 3
✓
Form Factor
Rack mount (1U)

Performance
Switching Capacity
760 Gbps
Total Non-Blocking Throughput
380 Gbps
Forwarding Rate
565 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
L3 Table Size
ARP Entries
16,000
IPv4 Routes
16,000
Packet Buffer Size
4 MB

Layer 3 Features
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓

Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓

Hardware
Max. Power Consumption
100W
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 100W
Supported Voltage Range
100—240V AC
Management
Ethernet
AR
Heat Dissipation (Excluding PoE Output)
341.2 BTU/hr
Weight
Without mounting brackets: 4.6 kg (10.1 lb)
With mounting brackets: 4.7 kg (10.4 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm
(15.7-47.2″)
LCM Display
1.3″ touchscreen
ESD/EMP Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC
