ASROCK

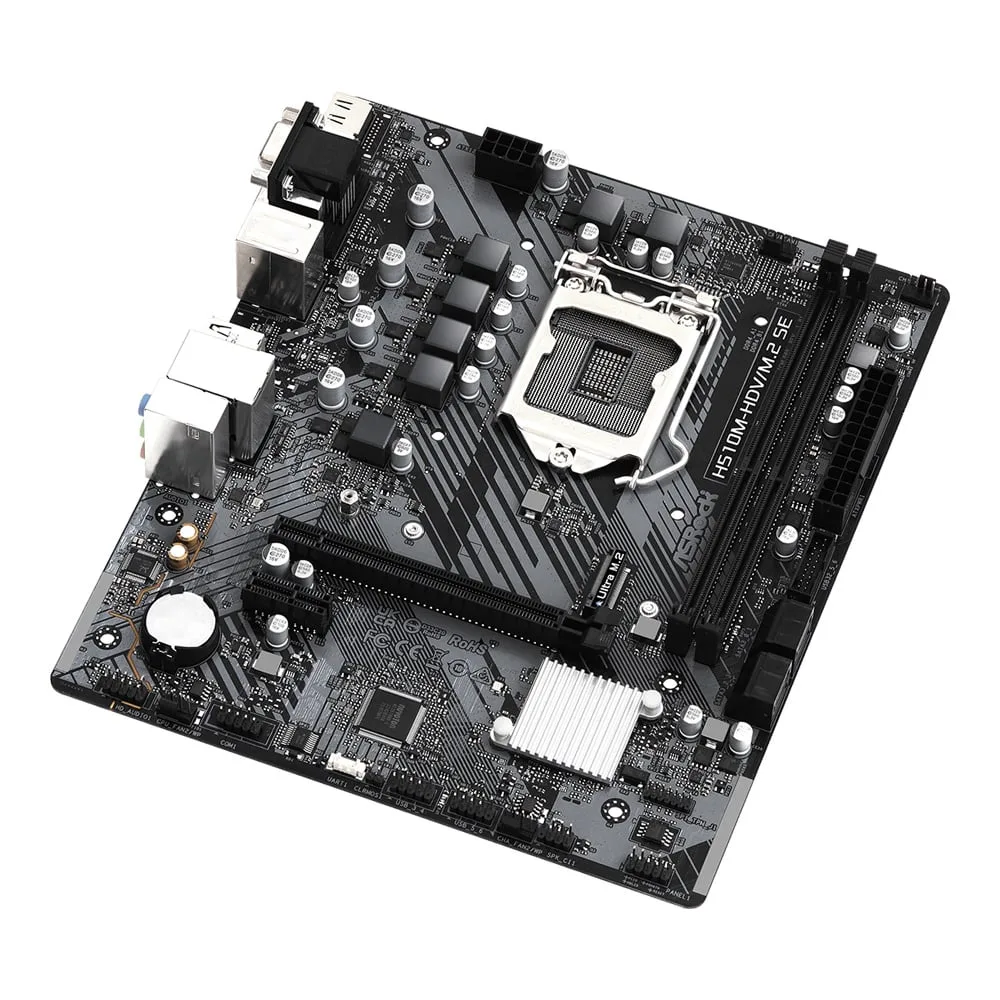

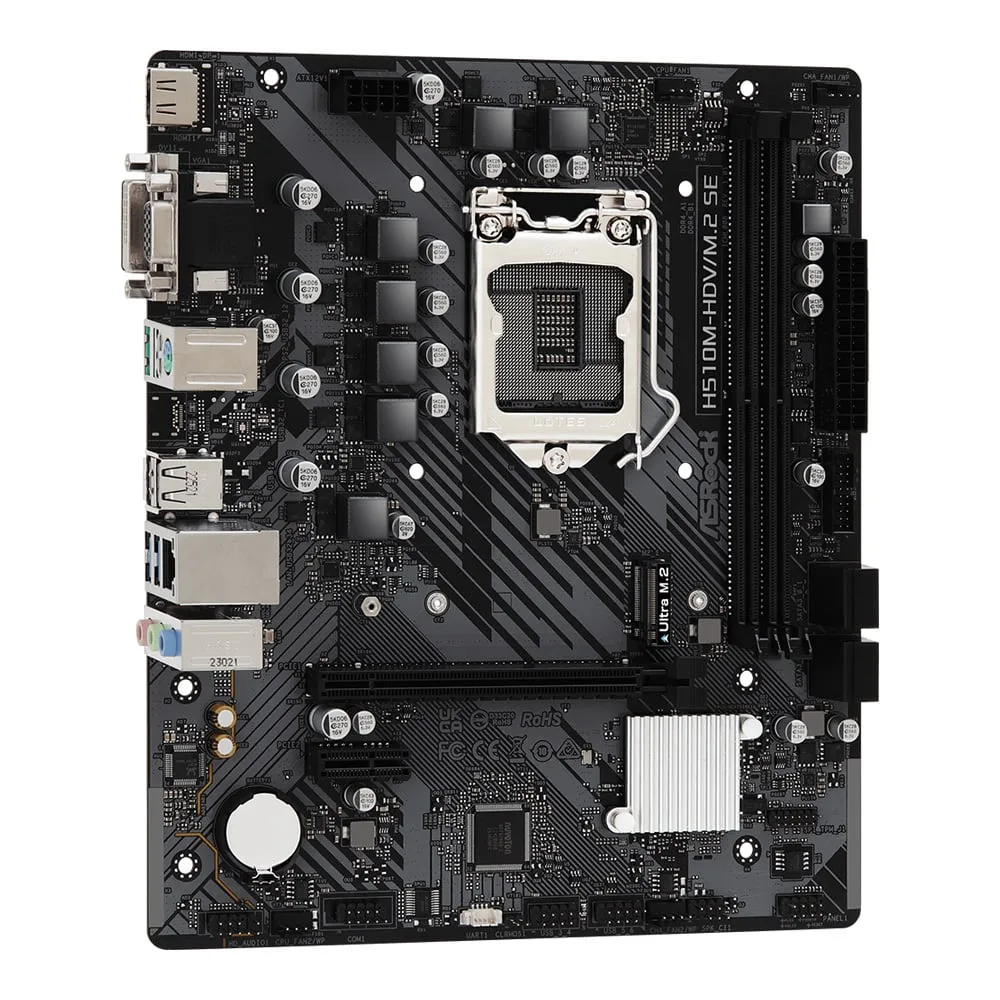

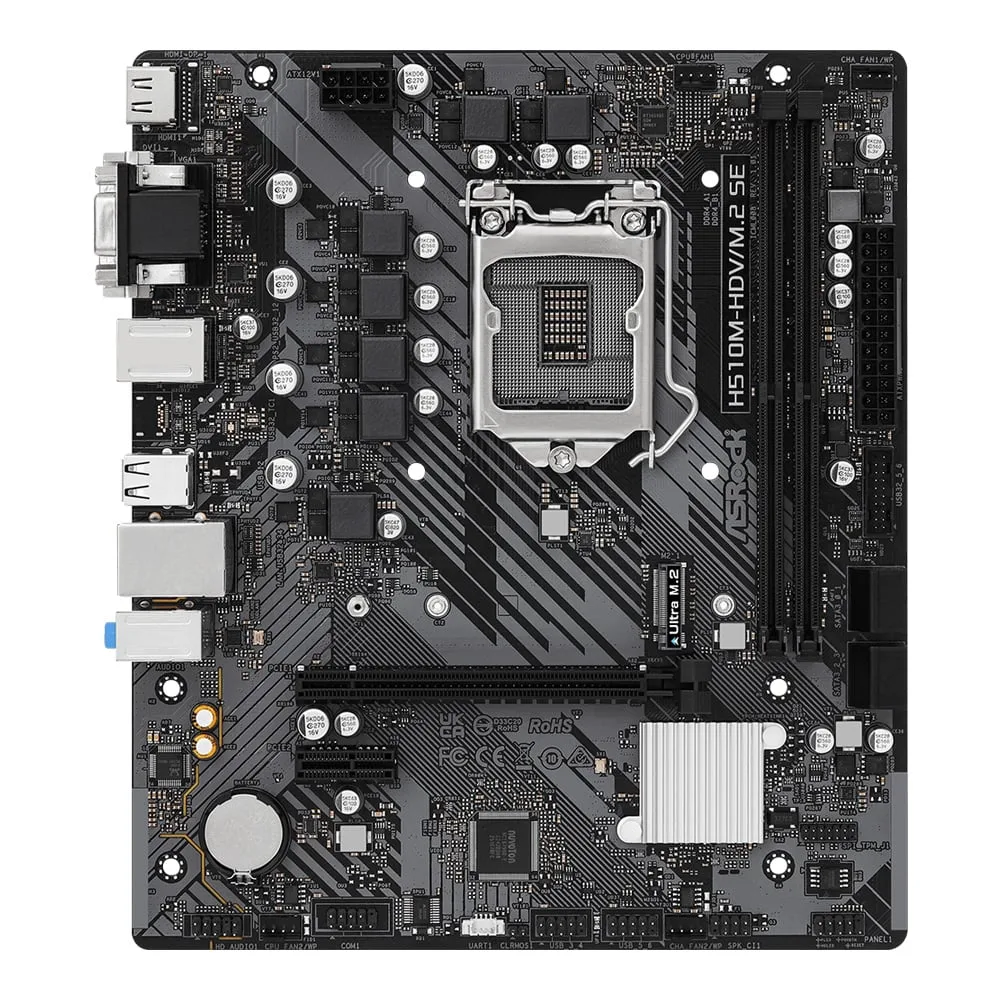

MAINBOARD (เมนบอร์ด) ASROCK H510M-HDV/M.2 SE (DDR4) (SOCKET LGA 1200) (MICRO-ATX)

รหัสสินค้า : 201038719

฿1,900

โทรสอบถามราคา

การรับประกัน :

Data Sheet :

201038719_datasheet.pdf

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

ติดต่อสอบถามราคาพิเศษ

Line :
Tel : 099-495-8880
Facebook : https://www.facebook.com/gtoengineer/
Email : support@gtoengineer.com

อัปเดตล่าสุด : 1 year ago

Product Type	Mainboard
Brand	Asrock
Model	H510M-HDV/M.2 SE
Socket	1200 (10th Gen – Comet Lake) , 1200 (11th Gen – Rocket Lake)
Wattage	125W
Chipset	Intel H470
Series	Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium
Slot	2
Memory Type	DDR4
Max. Capacity	64 GB
Speed	2133 , 2400 , 2666 , 2800 , 2800 (OC) , 2933 , 2933 (OC) , 3200 , 3200 (OC)
Graphic	Requires a CPU with Integrated Graphics. — • 1 x HDMI Intel 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz Intel 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz • 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full HD (1920×1200) 60Hz • 1 x D-Sub, supports max. resolution up to Full HD (1920×1200) 60Hz — *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Graphics specifications may vary between CPU types.
Audio	Realtek ALC897
Audio Detail	7.1 CH HD Audio
SATA 2	– Port
SATA 3	4 Port
RAID	RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices
M.2	1 x M.2 Socket — Chipset: • 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* — *Supports Intel Optane Technology Supports NVMe SSD as boot disks Port
Details	Intel 11th Gen & 10th Gen Processors: • 1 x PCIe 4.0 x16 Slot (PCIE1)* Intel 11th Gen Processors support PCIe 4.0 x16 Intel 10th Gen Processors support PCIe 3.0 x16 — Intel H470 Chipset: • 1 x PCIe 3.0 x1 Slot (PCIE2)* — *Supports NVMe SSD as boot disks
Slot	1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x16 Slot
LAN	Realtek 8111H
LAN Speed	10/100/1000 Mbps
Wireless	No
USB 2.0	2 Port
USB 3.0	– Port
USB 3.1	– Port
Serial	– Port
USB 3.2	4 x USB 3.2 Gen1 Type-A Port
D-Sub (VGA)	1 Port
DVI	1 Port
HDMI	1 Port
DisplayPort	– Port
Audio	3 Port
PS/2	1 (Keyboard/Mouse combo) Port
Additional	No
LAN	1 Port
Form Factor	Micro-ATX
Power Connector	24 + 8 Pin
Dimension	23.1 x 19.8 cm
การรับประกัน	3 Years
