GIGABYTE

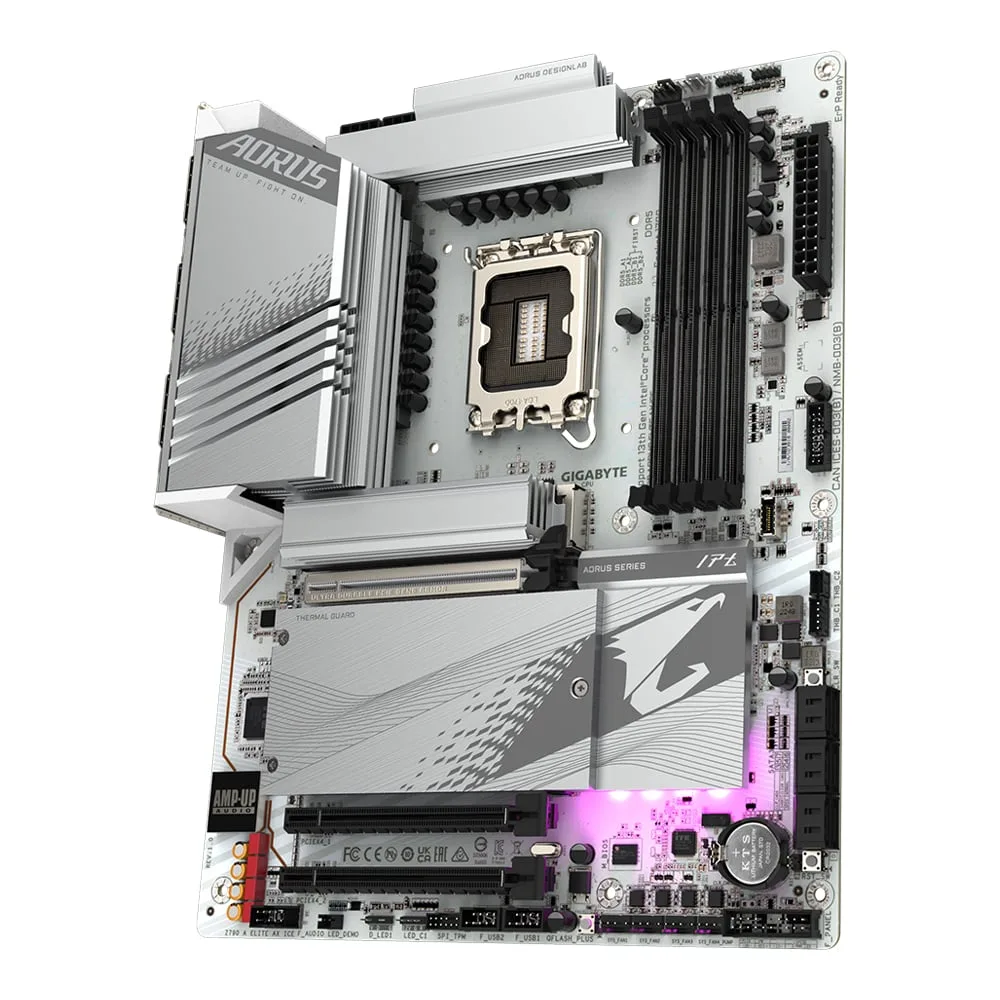

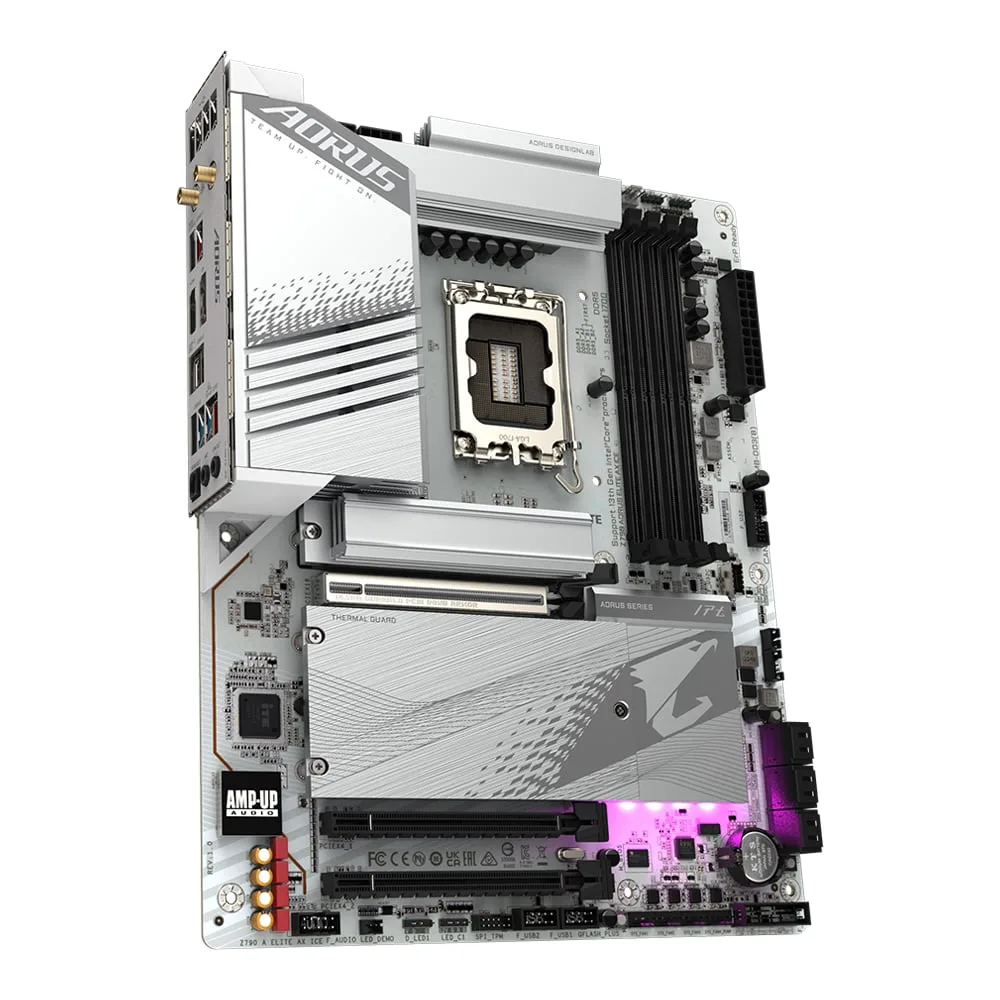

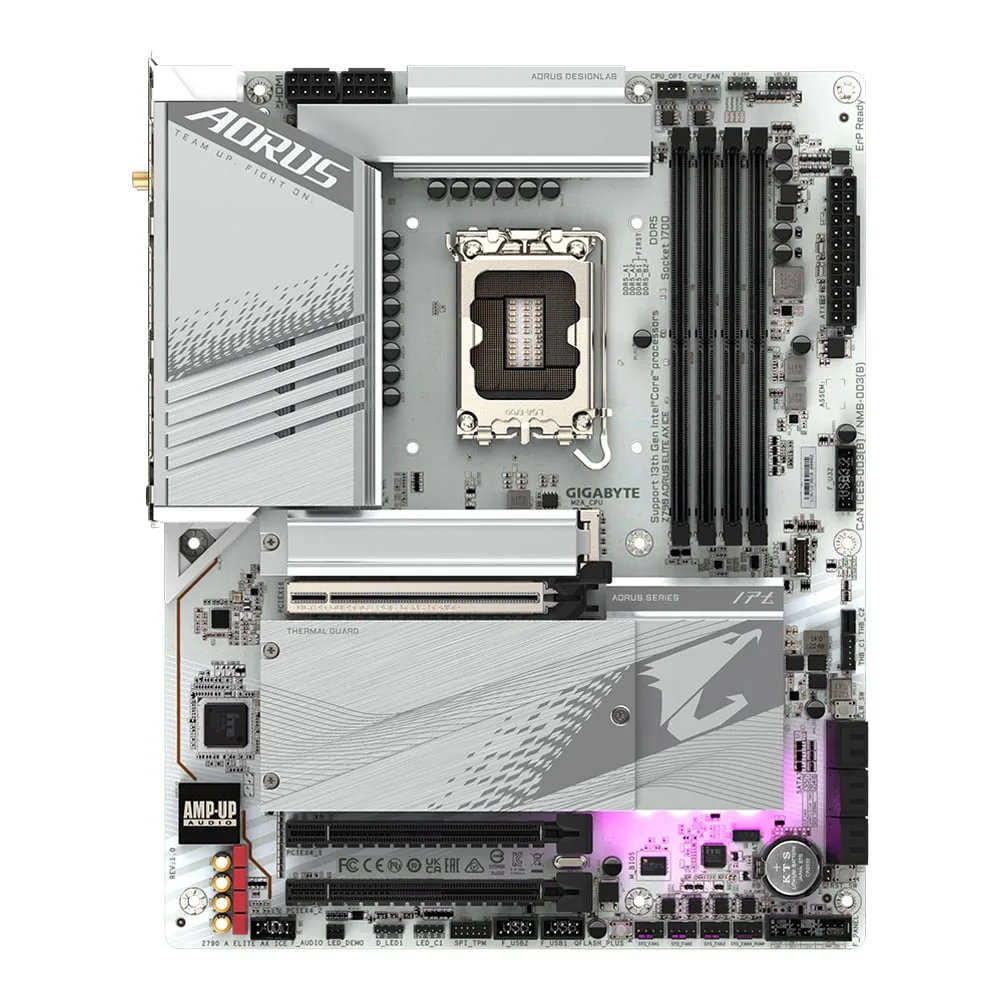

MAINBOARD (เมนบอร์ด) GIGABYTE Z790 AORUS ELITE AX ICE (REV. 1.0) (SOCKET LGA 1700 DDR5 ATX)

รหัสสินค้า : 1007000040

฿9,200

โทรสอบถามราคา

การรับประกัน :

Data Sheet :

1007000040_datasheet.pdf

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

ติดต่อสอบถามราคาพิเศษ

Line :
Tel : 099-495-8880
Facebook : https://www.facebook.com/gtoengineer/
Email : support@gtoengineer.com

อัปเดตล่าสุด : 1 year ago

Product Type	Mainboard
Brand	Gigabyte
Model	Z790 AORUS ELITE AX ICE (Rev. 1.0)
Socket	1700 (12th Gen – Alder Lake) , 1700 (13th Gen – Raptor Lake) , 1700 (14th Gen – Raptor Lake Refresh)
Wattage	150W
Chipset	Intel Z790
Series	Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium
Slot	4
Memory Type	DDR5
Max. Capacity	192 GB
Speed	4000 , 4800 , 5200 (OC) , 5400 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC)
Graphic	Requires a CPU with Integrated Graphics. — Integrated Graphics Processor-Intel HD Graphics support: • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3 — (Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC
Audio Detail	– High Definition Audio – 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. – Support for S/PDIF Out
SATA 2	– Port
SATA 3	6 Port
RAID	• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices • RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
M.2	4 x M.2 Connectors — CPU: • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) — Chipset: • 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) • 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) Port
Details	CPU: • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. — Chipset: • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Slot	1 x PCIe 3.0 x16 Slot , 1 x PCIe 4.0 x16 Slot , 1 x PCIe 5.0 x16 Slot
LAN	Realtek 2.5Gb Ethernet
LAN Speed	100/1000/2500 Mbps
Wireless	Intel Wi-Fi 6E AX211 (PCB rev. 1.0) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – Bluetooth 5.3 – Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate — * Actual data rate may vary depending on environment and equipment.
USB 2.0	4 Port
USB 3.0	– Port
USB 3.1	– Port
Serial	– Port

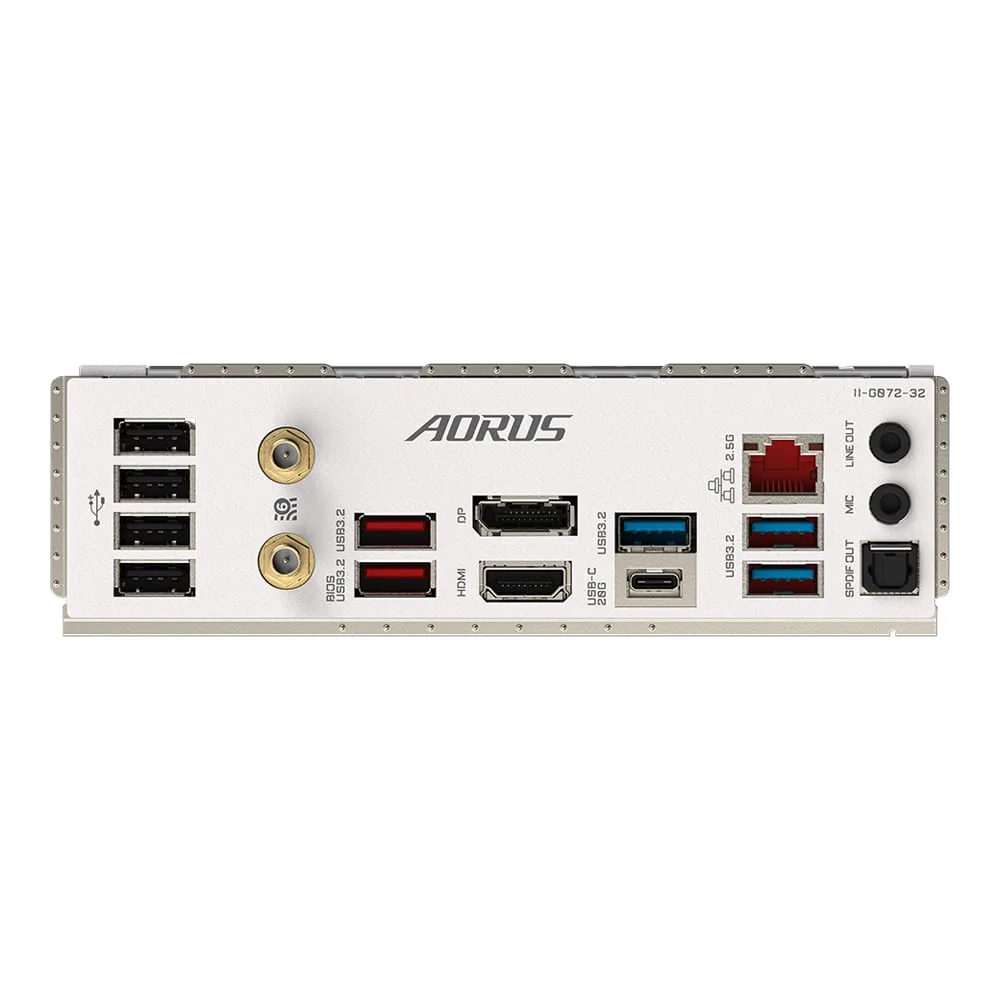

USB 3.2	1 x USB 3.2 Gen 2×2 Type-C 2 x USB 3.2 Gen 2 Type-A (red) 3 x USB 3.2 Gen 1 Type-A Port
D-Sub (VGA)	– Port
DVI	– Port
HDMI	1 Port
DisplayPort	1 Port
Audio	2 x Audio jacks 1 x Optical S/PDIF out Port
PS/2	No
Additional	2 x SMA antenna connectors (2T2R)
LAN	1 Port
Form Factor	ATX
Power Connector	24 + 8 + 8 Pin
Dimension	30.5 x 24.4 cm
การรับประกัน	3 Years
