GIGABYTE

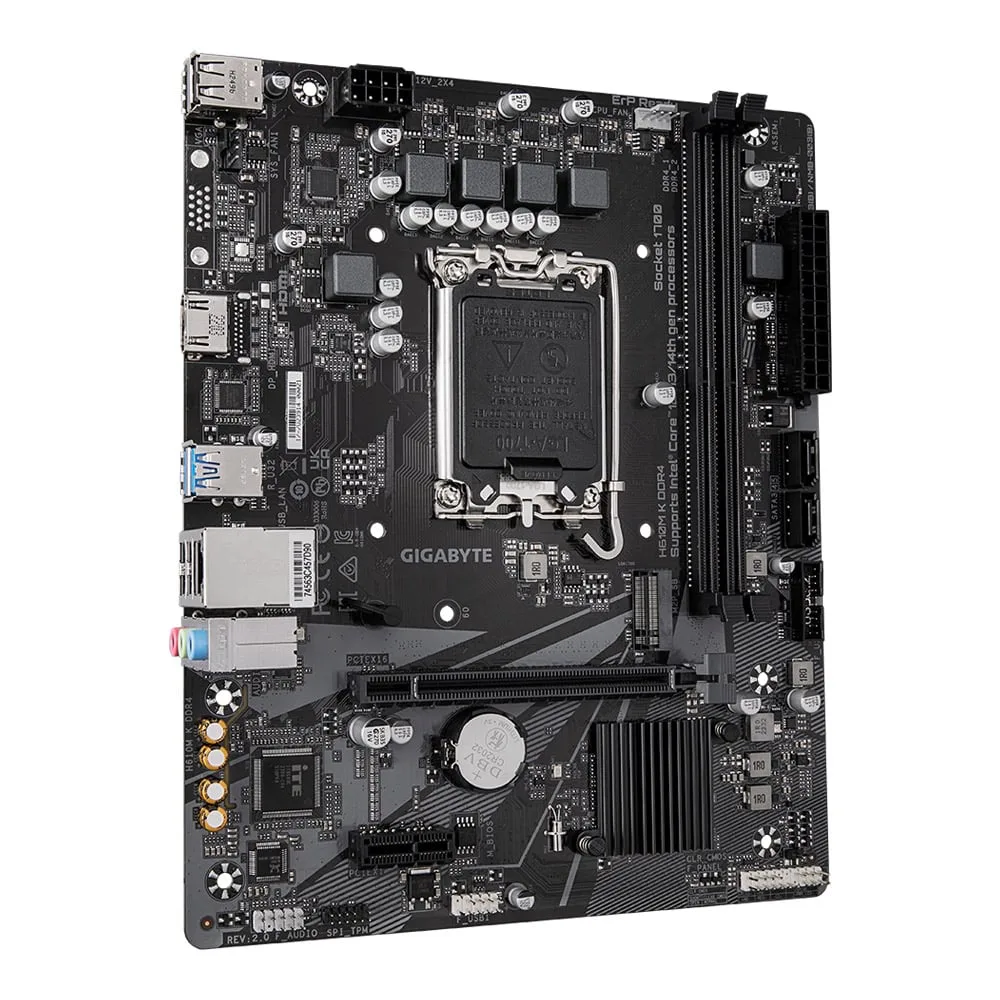

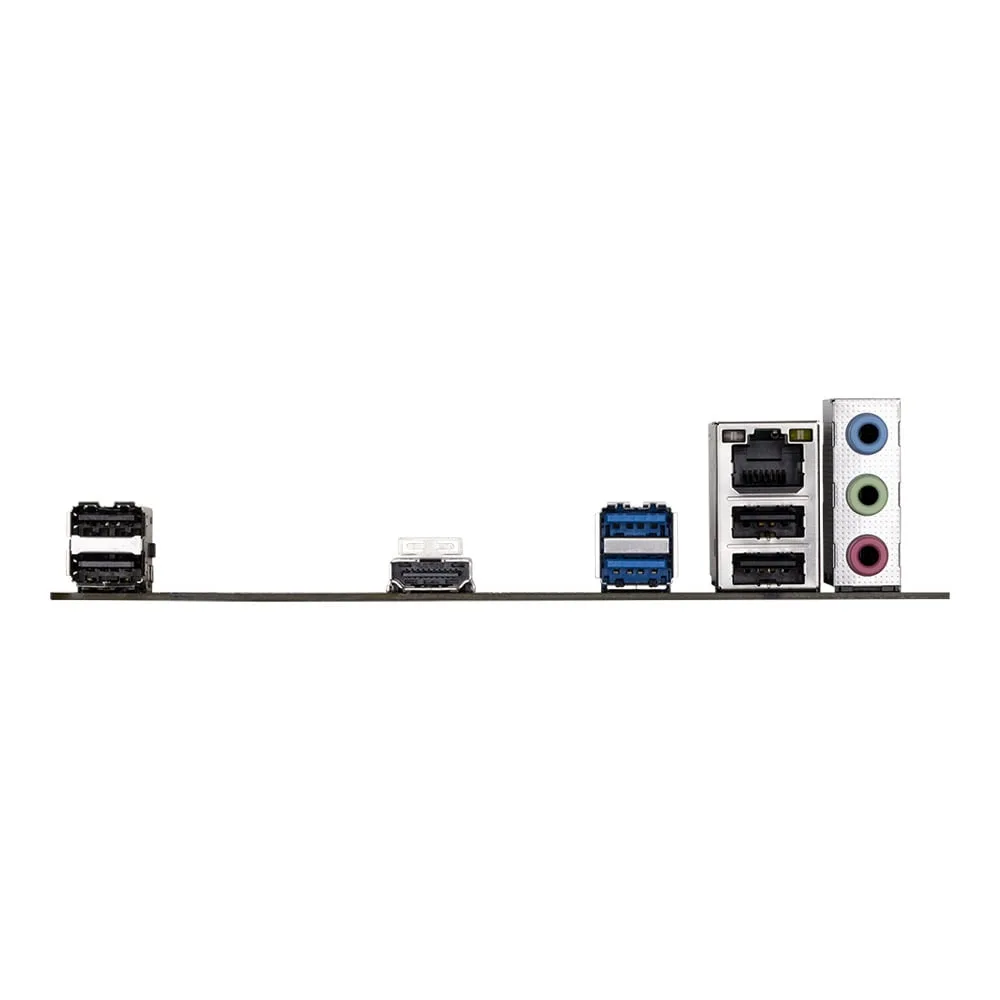

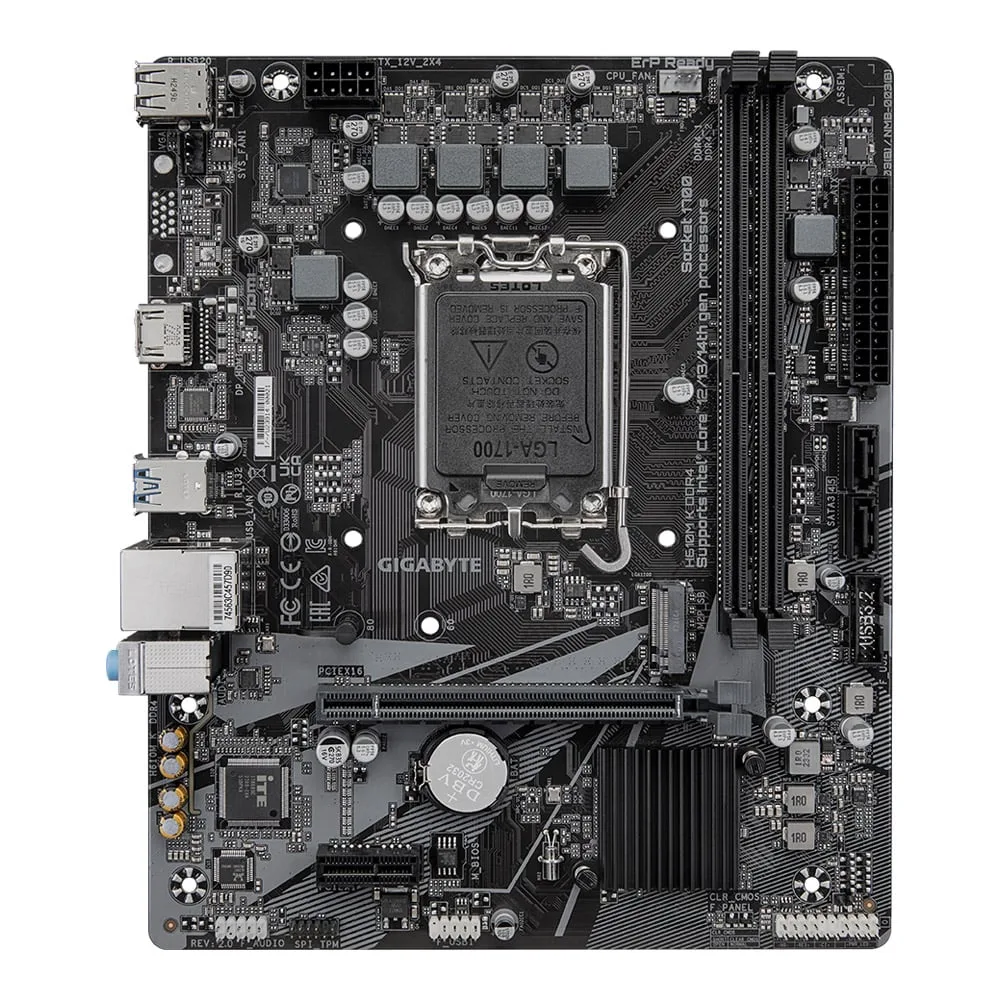

MAINBOARD (เมนบอร์ด) GIGABYTE H610M K DDR4 (REV. 2.0) (SOCKET LGA 1700 DDR4 MICRO-ATX)

รหัสสินค้า : 1007000050

฿2,000

โทรสอบถามราคา

การรับประกัน :

Data Sheet :

1007000050_datasheet.pdf

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

ติดต่อสอบถามราคาพิเศษ

Line :
Tel : 099-495-8880
Facebook : https://www.facebook.com/gtoengineer/
Email : support@gtoengineer.com

อัปเดตล่าสุด : 4 months ago

Product Type	Mainboard
Brand	Gigabyte
Model	H610M K DDR4 (rev. 2.0)
Socket	1700 (12th Gen – Alder Lake) , 1700 (13th Gen – Raptor Lake) , 1700 (14th Gen – Raptor Lake Refresh)
Wattage	150W
Chipset	Intel H610
Series	Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium
Slot	2
Memory Type	DDR4
Max. Capacity	64 GB
Speed	2133 , 2400 , 2666 , 2666 (OC) , 2933 , 2933 (OC) , 3000 , 3000 (OC) , 3200 , 3200 (OC)
Graphic	Requires a CPU with Integrated Graphics. — Integrated Graphics Processor-Intel HD Graphics support: • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. — (Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC
Audio Detail	• High Definition Audio • 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
SATA 2	– Port
SATA 3	2 Port
RAID	No
M.2	1 x M.2 Connector — Chipset: • 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) Port
Details	CPU: • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 — Chipset: • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Slot	1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x16 Slot
LAN	Realtek 1Gb Ethernet
LAN Speed	10/100/1000 Mbps
Wireless	No
USB 2.0	4 Port
USB 3.0	– Port
USB 3.1	– Port
Serial	– Port
USB 3.2	2 x USB 3.2 Gen 1Type-A Port
D-Sub (VGA)	– Port
DVI	– Port
HDMI	1 Port
DisplayPort	– Port
Audio	3 Port
PS/2	No
Additional	No
LAN	1 Port
Form Factor	Micro-ATX
Power Connector	24 + 8 Pin
Dimension	22.6 x 18.5 cm
การรับประกัน	3 Years
