GIGABYTE

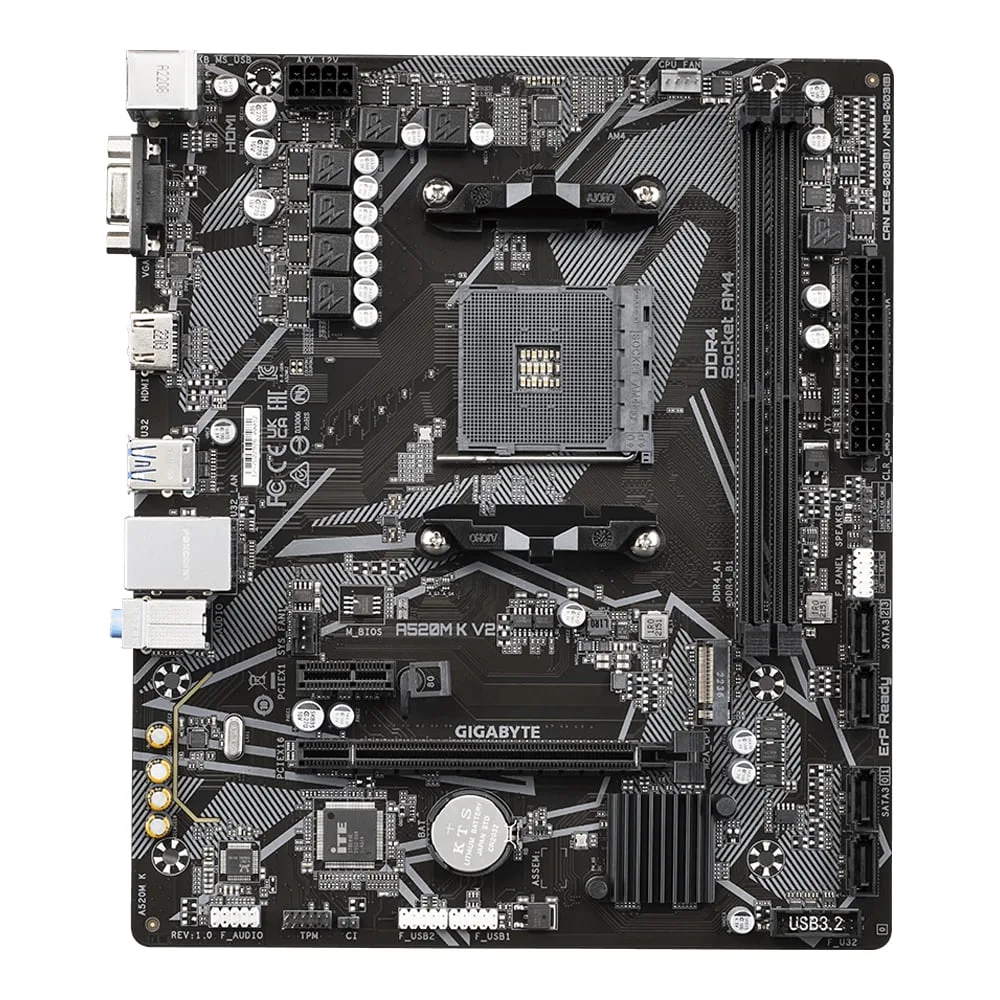

MAINBOARD (เมนบอร์ด) GIGABYTE A520M K V2 (REV. 1.1) (SOCKET AM4 DDR4 MICRO-ATX)

รหัสสินค้า : 1007000014

฿1,700

โทรสอบถามราคา

การรับประกัน :

Data Sheet :

1007000014_datasheet.pdf

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

ติดต่อสอบถามราคาพิเศษ

Line :
Tel : 099-495-8880
Facebook : https://www.facebook.com/gtoengineer/
Email : support@gtoengineer.com

อัปเดตล่าสุด : 4 months ago

Product Type	Mainboard
Brand	Gigabyte
Model	A520M K V2 (rev. 1.1)
Socket	AM4 (3000 G-Series – Picasso) , AM4 (3000 Series – Matisse) , AM4 (4000 G-Series – Renoir) , AM4 (4000 Series – Renoir) , AM4 (5000 G-Series – Cezanne) , AM4 (5000 Series – Vermeer / Cezanne)
Wattage	105W
Chipset	AMD A520
Series	Ryzen 3 , Ryzen 5 , Ryzen 7 , Ryzen 9
Slot	2
Memory Type	DDR4
Max. Capacity	64 GB
Speed	2133 , 2400 , 2400 (OC) , 2666 , 2666 (OC) , 2933 , 2933 (OC) , 3200 , 3200 (OC) , 3400 (OC) , 3466 (OC) , 3600 (OC) , 3733 (OC) , 3866 (OC) , 4000 (OC) , 4133 (OC) , 4266 (OC) , 4400 (OC) , 4600 (OC) , 4800 (OC) , 5100 (OC)
Graphic	Requires a CPU with Integrated Graphics. — Integrated Graphics Processor with AMD Radeon Graphics support: • 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. — Maximum shared memory of 16 GB
Audio	Realtek
Audio Detail	2/4/5.1/7.1-channel
SATA 2	– Port
SATA 3	4 Port
RAID	RAID 0, RAID 1, RAID 10 for SATA storage devices
M.2	1 x M.2 Connector — CPU: • 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Port
Details	CPU: • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 — Chipset: • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Slot	1 x PCIe 3.0 x1 Slot , 1 x PCIe 3.0 x16 Slot
LAN	Realtek 1Gb Ethernet
LAN Speed	100/1000 Mbps
Wireless	No

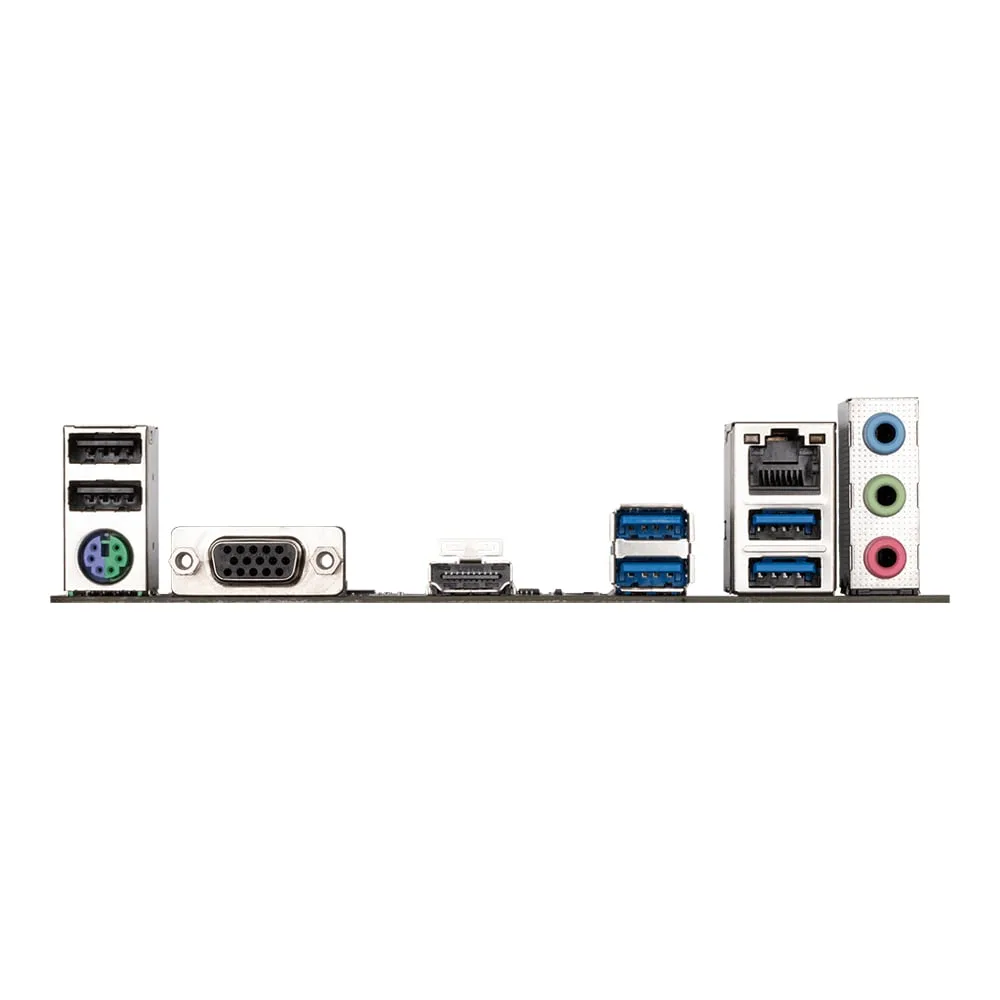

USB 2.0	2 Port
USB 3.0	– Port
USB 3.1	– Port
Serial	– Port
USB 3.2	4 x USB 3.2 Gen 1 Type-A Port
D-Sub (VGA)	1 Port
DVI	– Port
HDMI	1 Port
DisplayPort	– Port
Audio	3 Port
PS/2	1 (Keyboard/Mouse combo) Port
Additional	No
LAN	1 Port
Form Factor	Micro-ATX
Power Connector	24 + 8 Pin
Dimension	23.3 x 19.8 cm
การรับประกัน	3 Years
