| Product Type | Mainboard |
| Brand | Gigabyte |
| Model | Z790 AORUS MASTER X 1.0 |
| Socket | 1700 (12th Gen – Alder Lake) , 1700 (13th Gen – Raptor Lake) , 1700 (14th Gen – Raptor Lake Refresh) |
| Wattage | 150W |
| Chipset | Intel Z790 |
| Series | Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium |
| Slot | 4 |
| Memory Type | DDR5 |
| Max. Capacity | 192 GB |
| Speed | 4000 , 4800 , 5200 (OC) , 5400 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) , 7900 (OC) , 7950 (OC) , 8000 (OC) , 8200 (OC) |
| Graphic | Requires a CPU with Integrated Graphics. — Integrated Graphics Processor-Intel HD Graphics support: • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz — * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Audio | • Realtek ALC1220-VB • ESS ES9118 DAC |
| Audio Detail | 2/4/5.1-channel |
| SATA 2 | – Port |
| SATA 3 | 4 Port |
| RAID | RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices RAID 0, RAID 1, RAID 5, RAID 10 for PCIe / NVMe storage devices |
| M.2 | 5 x M.2 Connectors — CPU: • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) — Chipset: • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) • 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) Port |
| Details | CPU: • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. — Chipset: • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Slot | 1 x PCIe 5.0 x16 Slot , 2 x PCIe 3.0 x16 Slots |
| LAN | Marvell AQtion AQC113C 10GbE LAN |
| LAN Speed | 100/1000/2500/5000/10000 Mbps |
| Wireless | • Qualcomm Wi-Fi 7 QCNCM865 (PCB rev. 1.0) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands — • Bluetooth 5.3 — Support for 11be 320MHz wireless standard |
| USB 2.0 | – Port |
| USB 3.0 | – Port |
| USB 3.1 | – Port |
| Serial | – Port |

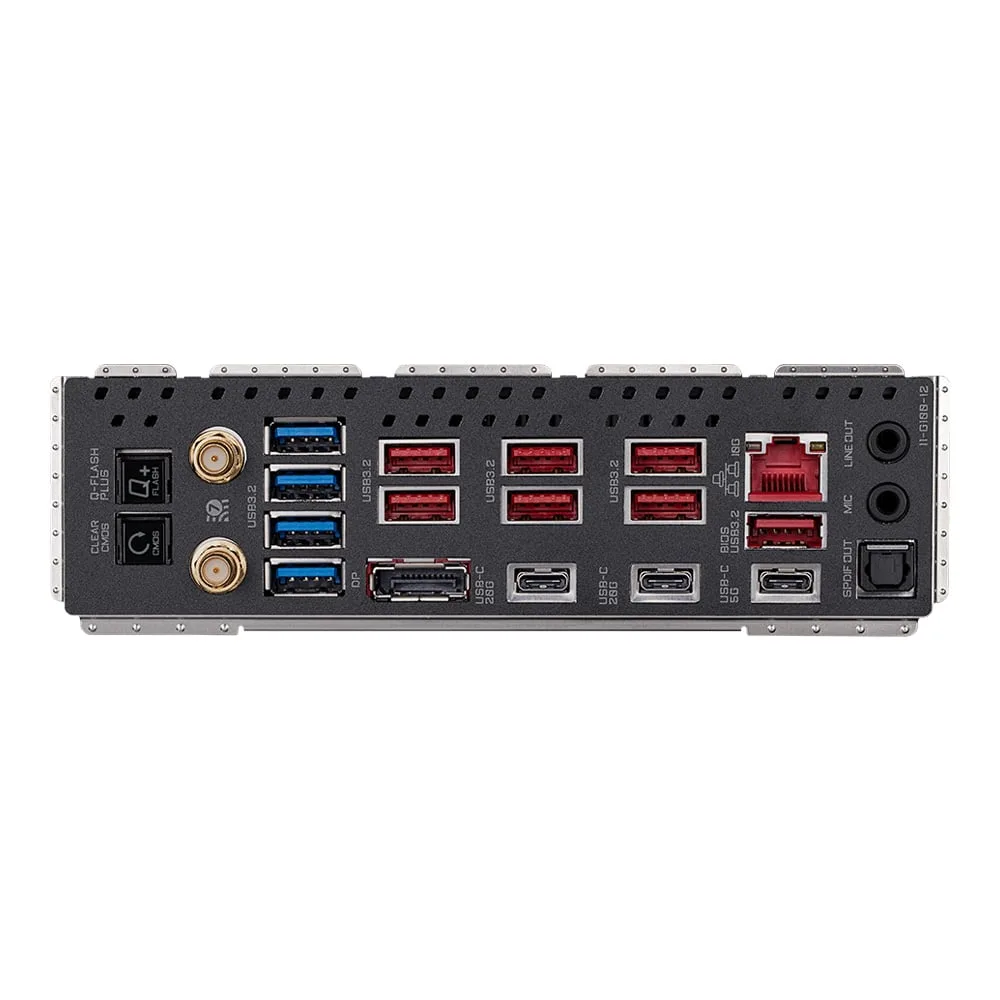

| USB 3.2 | 1 x USB 3.2 Gen 1 Type-C 2 x USB 3.2 Gen 2×2 7 x USB 3.2 Gen 2 Type-A (red) 4 x USB 3.2 Gen 1 Type-A Port |
| D-Sub (VGA) | – Port |
| DVI | – Port |
| HDMI | – Port |
| DisplayPort | 1 Port |
| Audio | 2 x Audio Jacks 1 x Optical S/PDIF Out Port |
| PS/2 | No |
| Additional | 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) |
| LAN | 1 Port |
| Form Factor | E-ATX |
| Power Connector | 24 + 8 + 8 Pin |
| Dimension | 30.5 x 26.0 cm |
| การรับประกัน | 3 Years |
