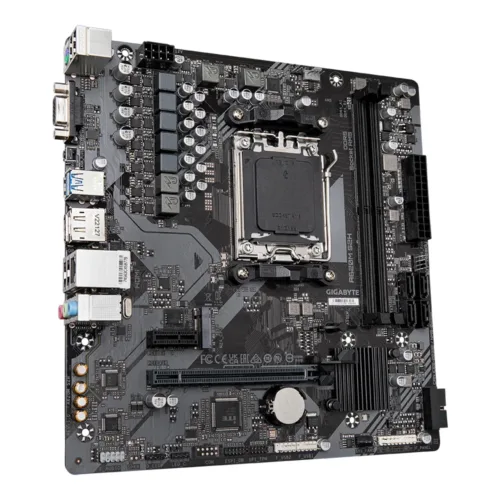

MAINBOARD (เมนบอร์ด) GIGABYTE A620M S2H (REV. 1.0) (DDR5) (SOCKET AM5) (MICRO-ATX)

รหัสสินค้า : 201038705

฿3,000

โทรสอบถามราคา

การรับประกัน :

Data Sheet :

201038705_datasheet.pdf

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

ติดต่อสอบถามราคาพิเศษ

Line :
Tel : 099-495-8880
Facebook : https://www.facebook.com/gtoengineer/
Email : support@gtoengineer.com

อัปเดตล่าสุด : 4 months ago

Product Type	Mainboard
Brand	Gigabyte
Model	A620M S2H (rev. 1.0)
Socket	AM5 (7000 Series – Raphael) , AM5 (8000 / 8000 G Series – Phoenix) , AM5 (9000 Series – Granite Ridge)
Wattage	170W
Chipset	AMD A620
Series	Ryzen 5 , Ryzen 7 , Ryzen 9
Slot	2
Memory Type	DDR5
Max. Capacity	96 GB
Speed	4400 , 4800 , 5200 , 5200 (OC) , 5600 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC)
Graphic	Requires a CPU with Integrated Graphics. — Integrated Graphics Processor: • 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz — • 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version. — • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. — (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time
Audio	Realtek
Audio Detail	2/4/5.1/7.1-channel
SATA 2	– Port
SATA 3	4 Port
RAID	RAID 0, RAID 1, RAID 10 for SATA Storage Devices RAID 0, RAID 1, RAID 10 for PCIe / NVMe Storage Devices
M.2	1 x M.2 Connector — CPU: • 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Port
Details	CPU: • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 — Chipset: • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Slot	1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x16 Slot
LAN	Realtek 1Gb Ethernet
LAN Speed	10/100/1000 Mbps
Wireless	No
USB 2.0	4 Port
USB 3.0	– Port
USB 3.1	– Port
Serial	– Port
USB 3.2	2 x USB 3.2 Gen 1 Type-A Port
D-Sub (VGA)	1 Port
DVI	– Port
HDMI	1 Port
DisplayPort	1 Port
Audio	3 Port
PS/2	1 (Keyboard/Mouse combo) Port
Additional	1 x Q-Flash Plus button
LAN	1 Port
Form Factor	Micro-ATX
Power Connector	24 + 8 Pin
Dimension	23.0 x 22.5 cm
การรับประกัน	3 Years
