Product Type	Mainboard
Brand	Asus
Model	PRIME Z890-P WIFI-CSM
Socket	1851 (Arrow Lake-S)
Wattage	125W
Chipset	Intel Z890
Series	Core Ultra 5 , Core Ultra 7 , Core Ultra 9
Slot	4
Memory Type	DDR5
Max. Capacity	192 GB
Speed	4800 , 5200 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) , 8000 (OC) , 8200 (OC) , 8400 (OC) , 8600 (OC) , 8666 (OC)
Graphic	Requires a CPU with Integrated Graphics. — • 1 x DisplayPort • 1 x HDMITM port* • 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs**** — * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1. ** In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20. * VGA resolution support depends on processors’ or graphic cards’ resolution. **** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*
Audio Detail	Audio Features – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers — * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
SATA 2	– Port
SATA 3	4 Port
RAID	* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
M.2	4 x M.2 slots — Intel Core Ultra Processors (Series 2)* • M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) — Intel Z890 Chipset • M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) Port
Details	Intel Core Ultra Processors (Series 2)* • 1 x PCIe 5.0 x16 slot — Intel Z890 Chipset • 2 x PCIe 4.0 x16 slots (support x4 mode) • 1 x PCIe 4.0 x16 slot (supports x1 mode) — * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Slot	1 x PCIe 5.0 x16 Slot , 3 x PCIe 4.0 x16 Slot
LAN	Realtek 2.5Gb Ethernet
LAN Speed	100 / 1000 / 2500 Mbps
Wireless	Wi-Fi 7* – 2×2 Wi-Fi 7 (802.11be) – Supports 2.4/5/6GHz frequency band – Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. – Bluetooth v5.4* — Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor’s website for details. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB 2.0	4 Port
USB 3.0	– Port
USB 3.1	– Port
Serial	– Port

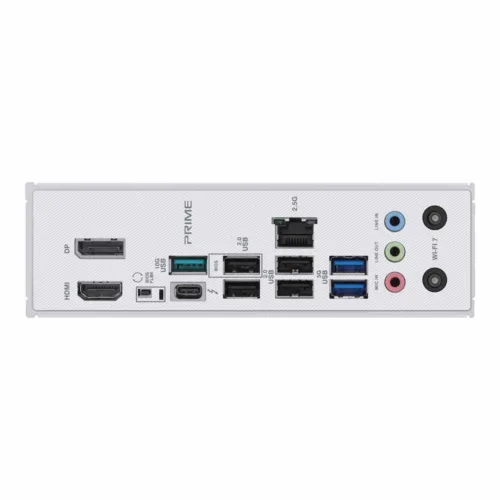

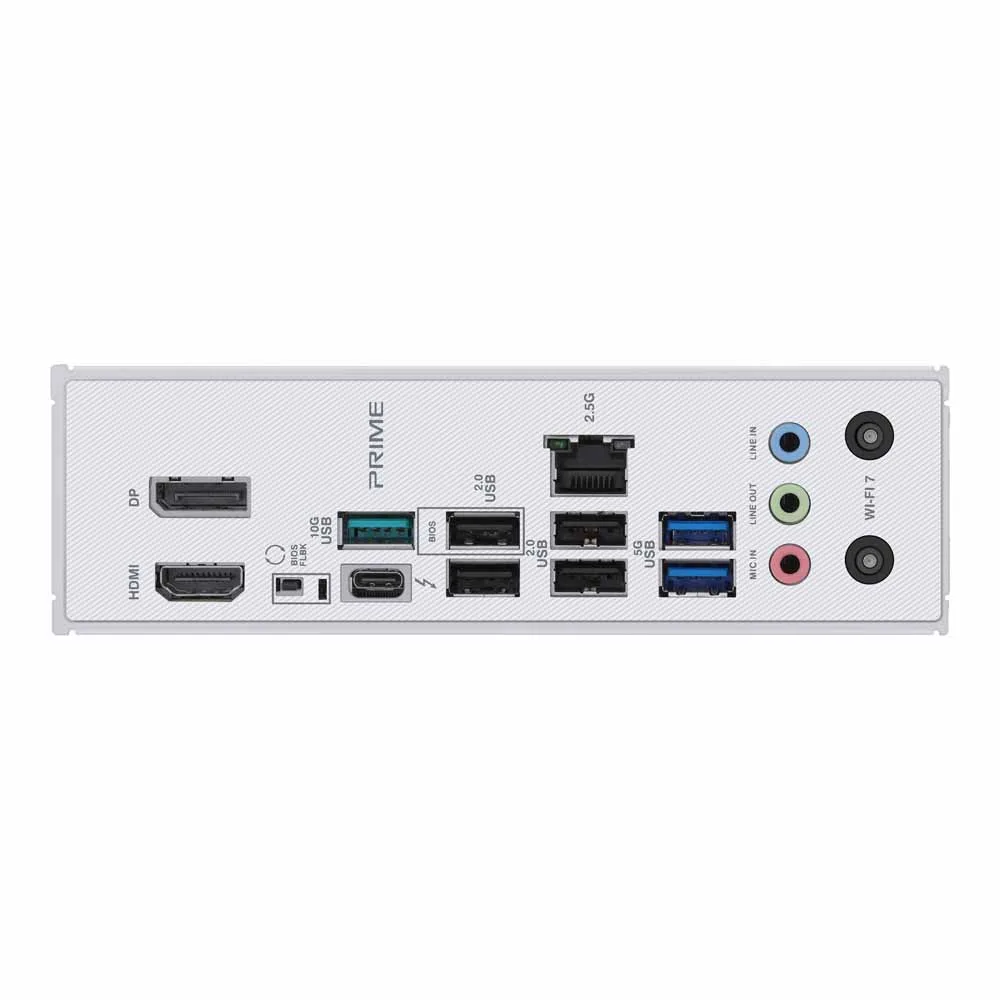

USB 3.2	1 x Thunderbolt 4 USB Type-C 1 x USB 10Gbps (1 x Type-A) 2 x USB 5Gbps (2 x Type-A) Port
D-Sub (VGA)	– Port
DVI	– Port
HDMI	1 Port
DisplayPort	1 Port
Audio	3 Port
PS/2	No
Additional	1 x Wi-Fi module 1 x BIOS FlashBack button
LAN	1 Port
Form Factor	ATX
Power Connector	24 + 8 + 8 Pin
Dimension	30.5 x 24.4 cm
การรับประกัน	3 Years

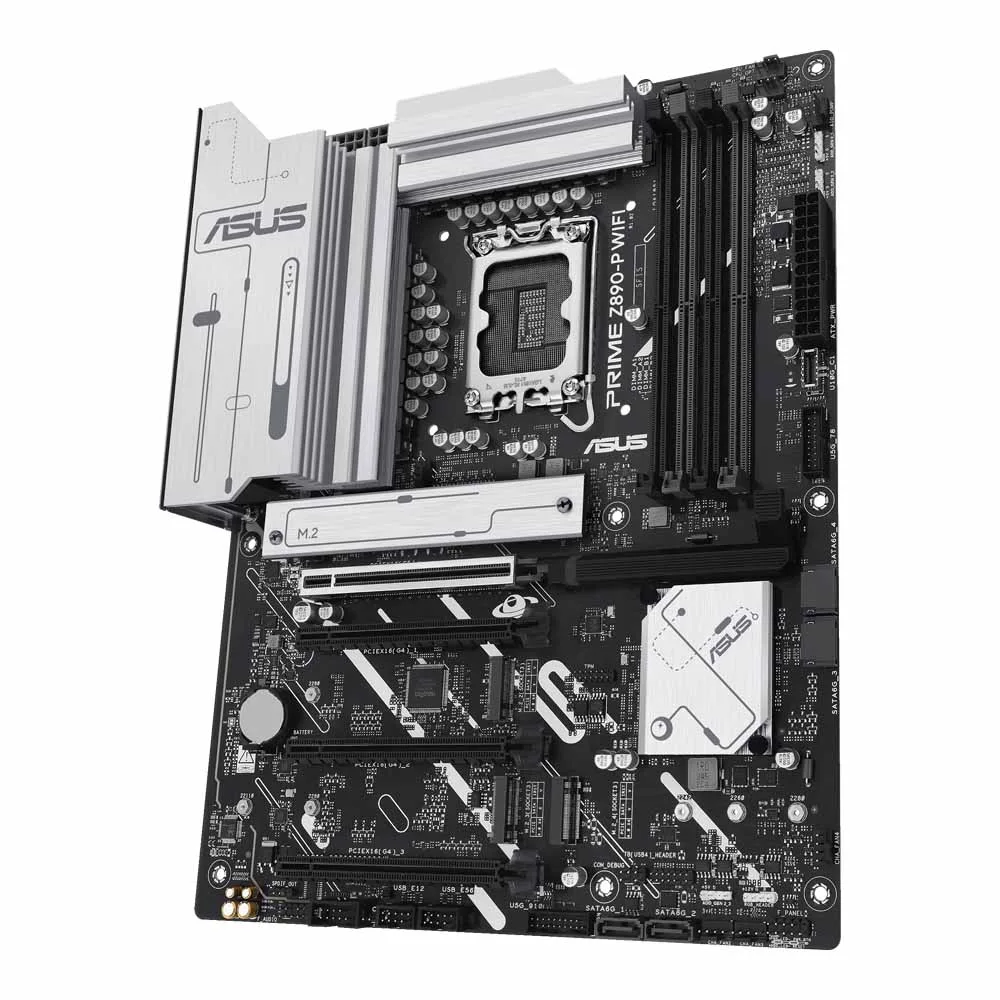

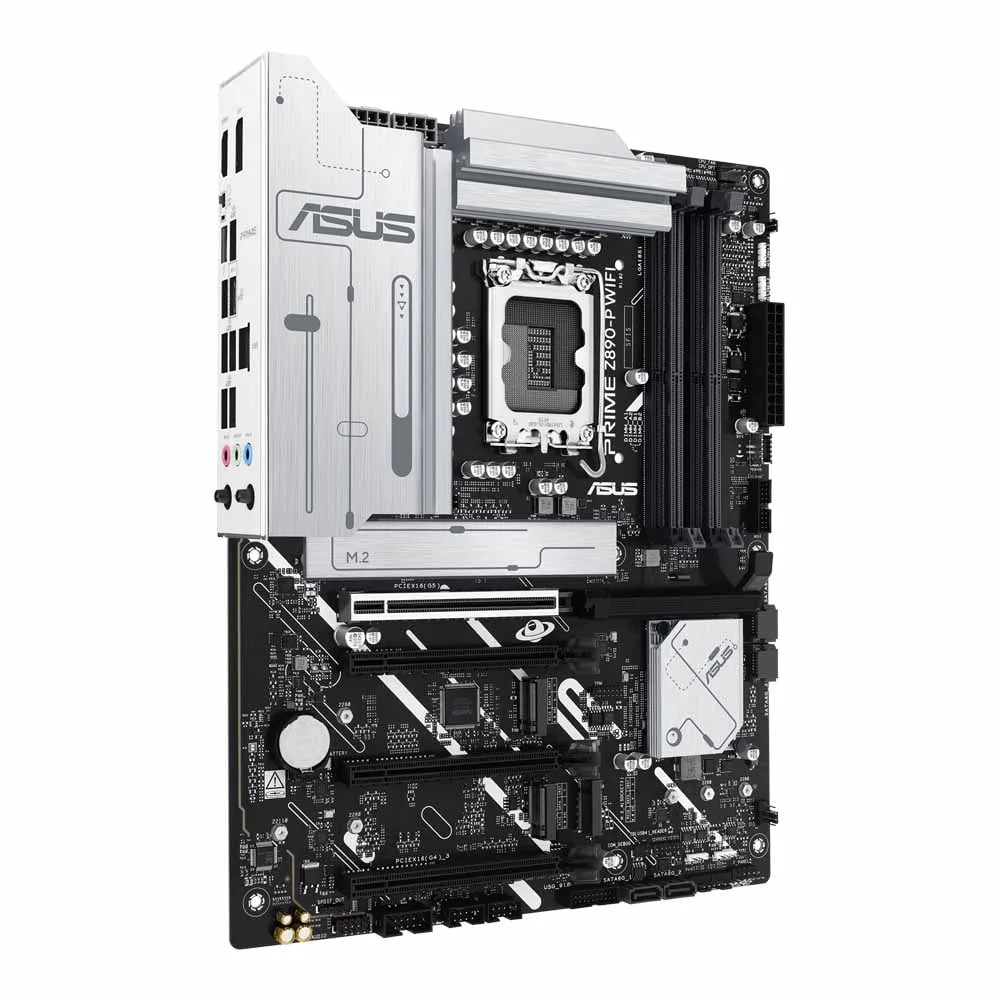

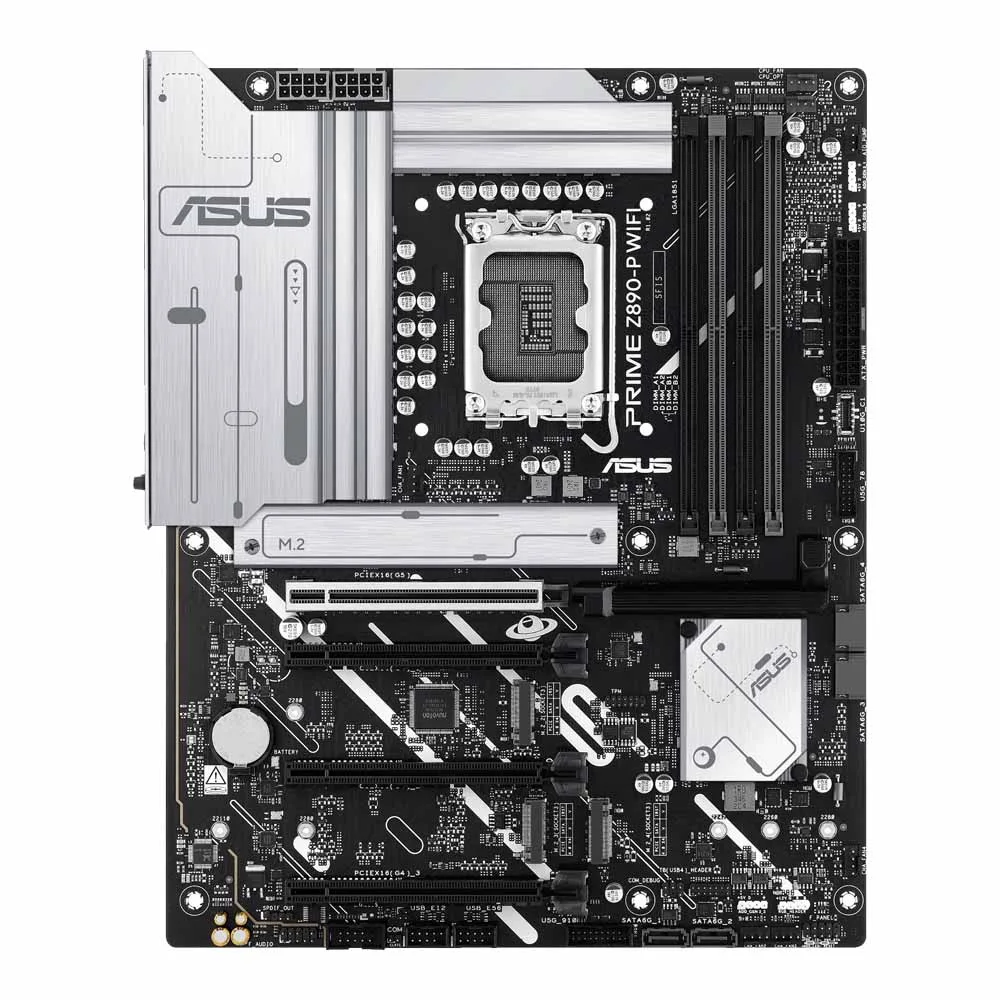

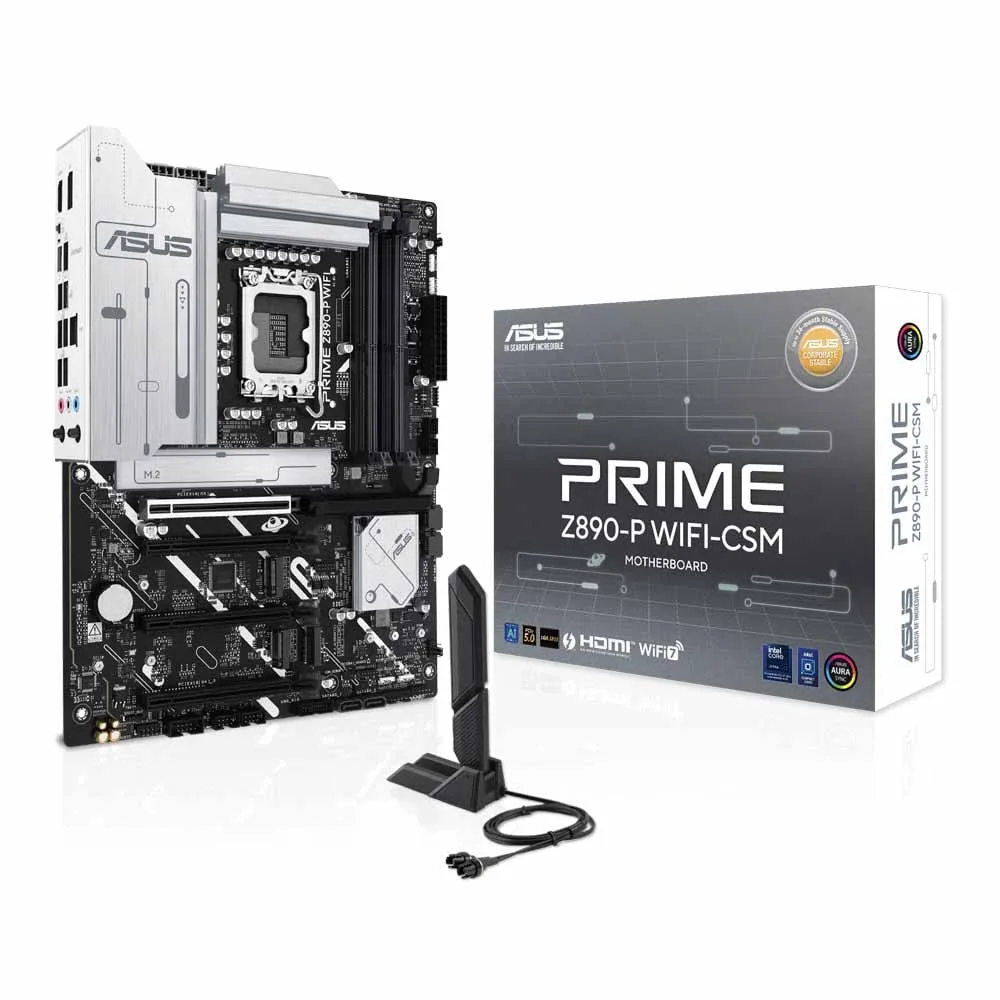

MAINBOARD (เมนบอร์ด) ASUS PRIME Z890-P WIFI-CSM (INTEL SOCKET 1851 DDR5 ATX)
