Product Type	Mainboard
Brand	Asus
Model	PRIME X870-P WIFI-CSM
Socket	AM5 (7000 Series – Raphael) , AM5 (8000 / 8000 G Series – Phoenix) , AM5 (9000 Series – Granite Ridge)
Wattage	170W
Chipset	AMD X870
Series	Ryzen 3 , Ryzen 5 , Ryzen 7 , Ryzen 9
Slot	4
Memory Type	DDR5
Max. Capacity	192 GB
Speed	4800 , 5200 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7600 (OC) , 7800 (OC) , 8000 (OC)
Graphic	Requires a CPU with Integrated Graphics. — • 1 x HDMI port • 2 x USB4 (40Gbps) ports support USB Type-C display outputs* — * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports 4K@60Hz as specified in HDMI 2.1. * Supports max. 4K@60Hz as specified in DisplayPort 1.4a. **** VGA resolution support depends on processors’ or graphic cards’ resolution.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*
Audio Detail	Audio Features – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers — * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
SATA 2	– Port
SATA 3	2 Port
RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU.
M.2	4 x M.2 slots — AMD Ryzen 9000 & 7000 Series Desktop Processors • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) — AMD Ryzen 8000 Series Desktop Processors • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) — AMD X870 Chipset • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* • M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)** — PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs. * PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs. ** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs. Port
Details	AMD Ryzen 9000 & 7000 Series Desktop Processors* • 1 x PCIe 5.0 x16 slot (supports x16 mode) — AMD Ryzen 8000 Series Desktop Processors • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) — AMD X870 Chipset • 3 x PCIe 4.0 x16 slots (support x1 mode)* — * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). Specifications vary by CPU types. * PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs. *** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs. – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Slot	1 x PCIe 5.0 x16 Slot , 3 x PCIe 4.0 x16 Slot
LAN	Realtek 2.5Gb Ethernet
LAN Speed	100/1000/2500 Mbps
Wireless	Wi-Fi 7* – 2×2 Wi-Fi 7 (802.11be) – Supports 2.4/5/6GHz frequency band – Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. – Bluetooth v5.4* — Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor’s website for details. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB 2.0	4 Port
USB 3.0	– Port
USB 3.1	– Port
Serial	– Port
USB 3.2	2 x USB4 (40Gbps) (2 x USB Type-C) 1 x USB 10Gbps (1 x Type-A) 3 x USB 5Gbps (3 x Type-A) Port
D-Sub (VGA)	– Port
DVI	– Port
HDMI	1 Port
DisplayPort	– Port
Audio	3 Port
PS/2	No
Additional	1 x Wi-Fi module 1 x BIOS FlashBack button
LAN	1 Port
Form Factor	ATX
Power Connector	24 + 8 + 8 Pin
Dimension	30.5 x 24.4 cm
การรับประกัน	3 Years

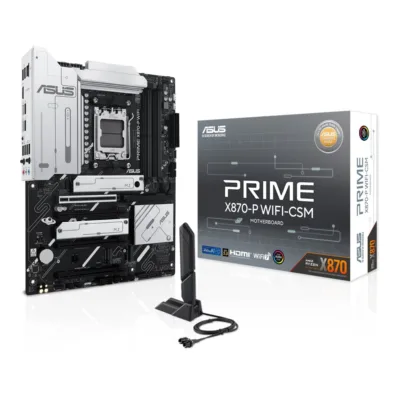

MAINBOARD (เมนบอร์ด) ASUS PRIME X870-P WIFI-CSM (AMD SOCKET AM5 DDR5 ATX)
