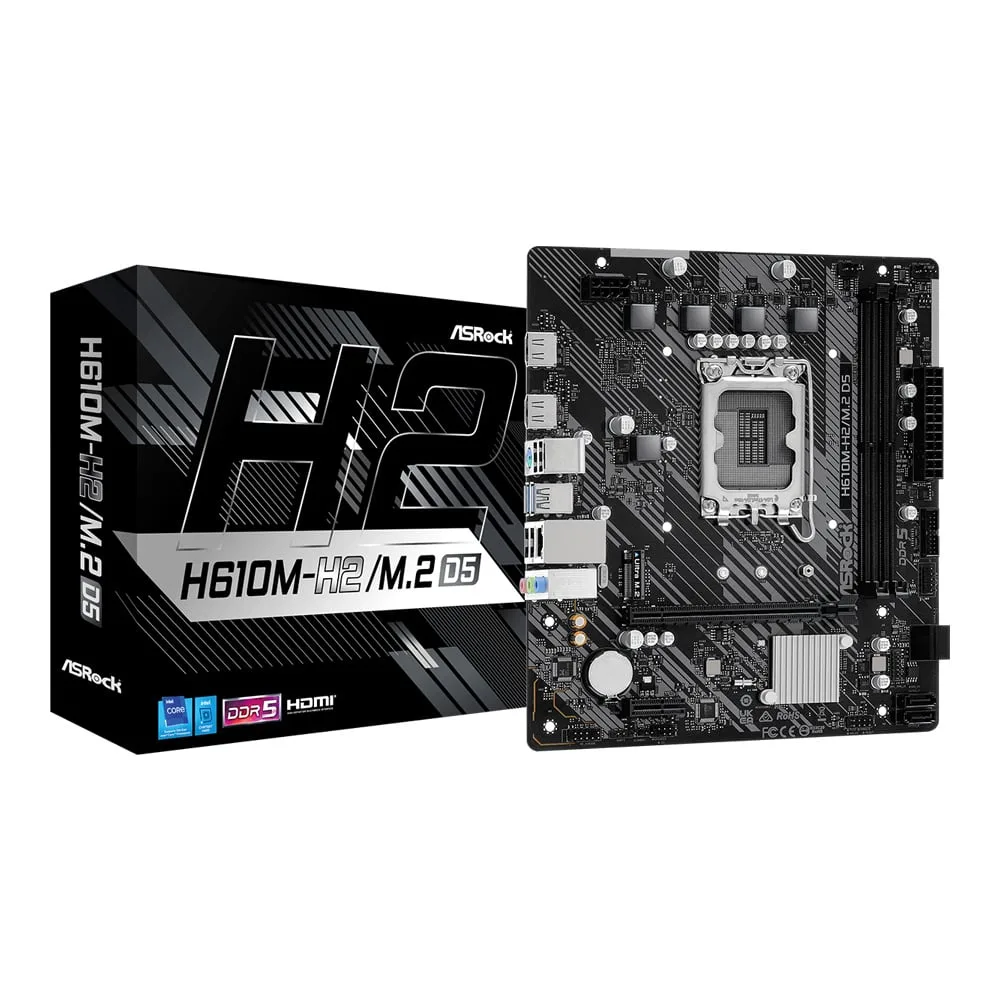

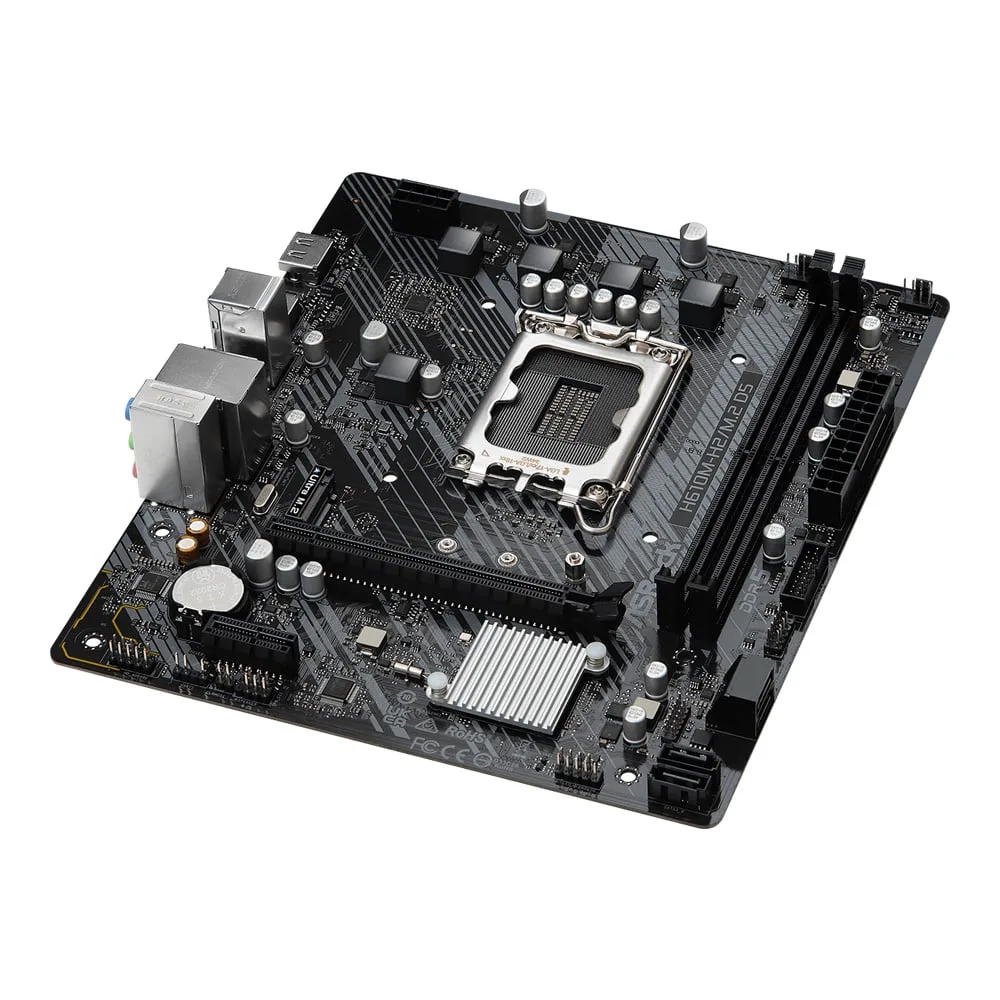

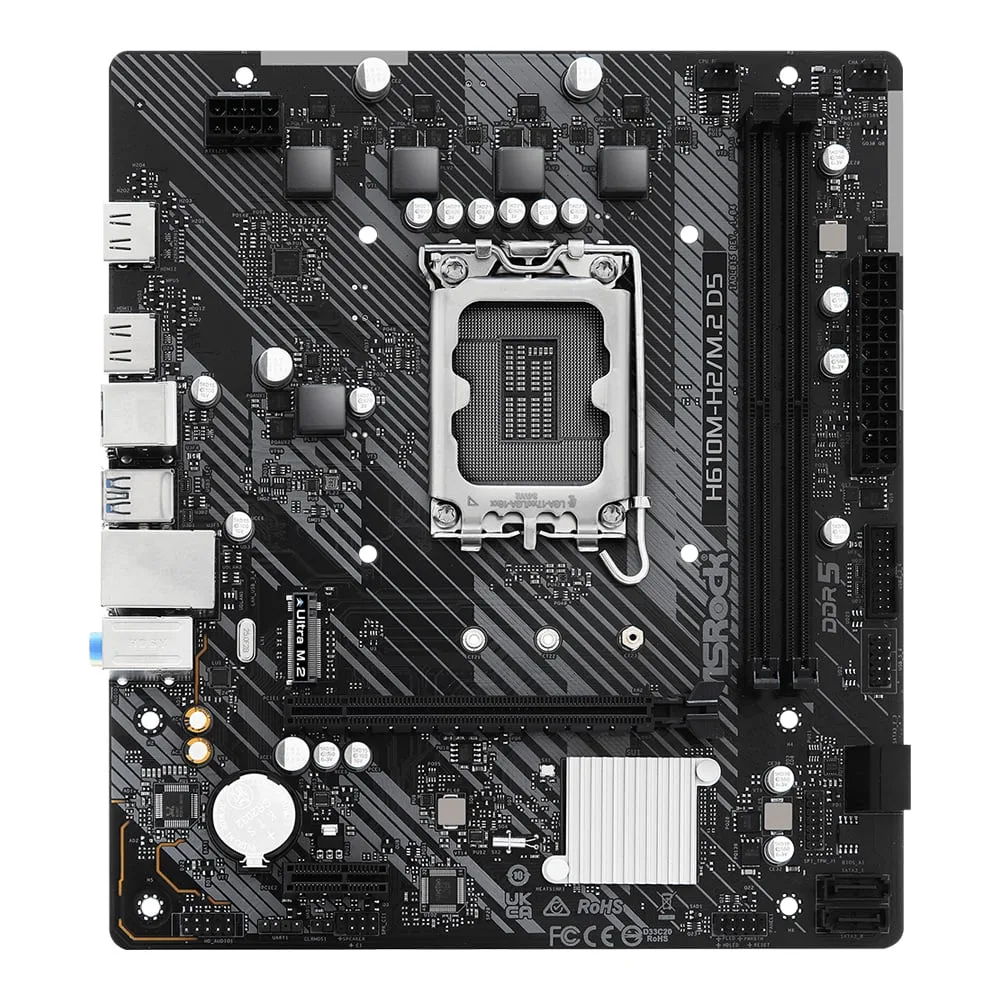

| Product Type | Mainboard |
| Brand | Asrock |
| Model | H610M-H2/M.2 D5 |
| Socket | 1700 (12th Gen – Alder Lake) , 1700 (13th Gen – Raptor Lake) , 1700 (14th Gen – Raptor Lake Refresh) |
| Wattage | 150W |
| Chipset | Intel H610 |
| Series | Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium |
| Slot | 2 |
| Memory Type | DDR5 |
| Max. Capacity | 96 GB |
| Speed | 4400 , 4800 , 5200 (OC) , 5600 (OC) |
| Graphic | Requires a CPU with Integrated Graphics. — Intel Xe Graphics Architecture (Gen 12) • 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz — *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Audio | Realtek ALC897 Audio Codec |
| Audio Detail | 7.1 CH HD Audio |
| SATA 2 | – Port |
| SATA 3 | 4 Port |
| RAID | No |
| M.2 | 1 x M.2 Socket — Chipset: • 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* Port |
| Details | CPU: • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* — Chipset: • 1 x PCIe 3.0 x1 Slot (PCIE2)* — *Supports NVMe SSD as boot disks |
| Slot | 1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x16 Slot |
| LAN | Realtek 8111H |
| LAN Speed | 10/100/1000 Mbps |
| Wireless | No |

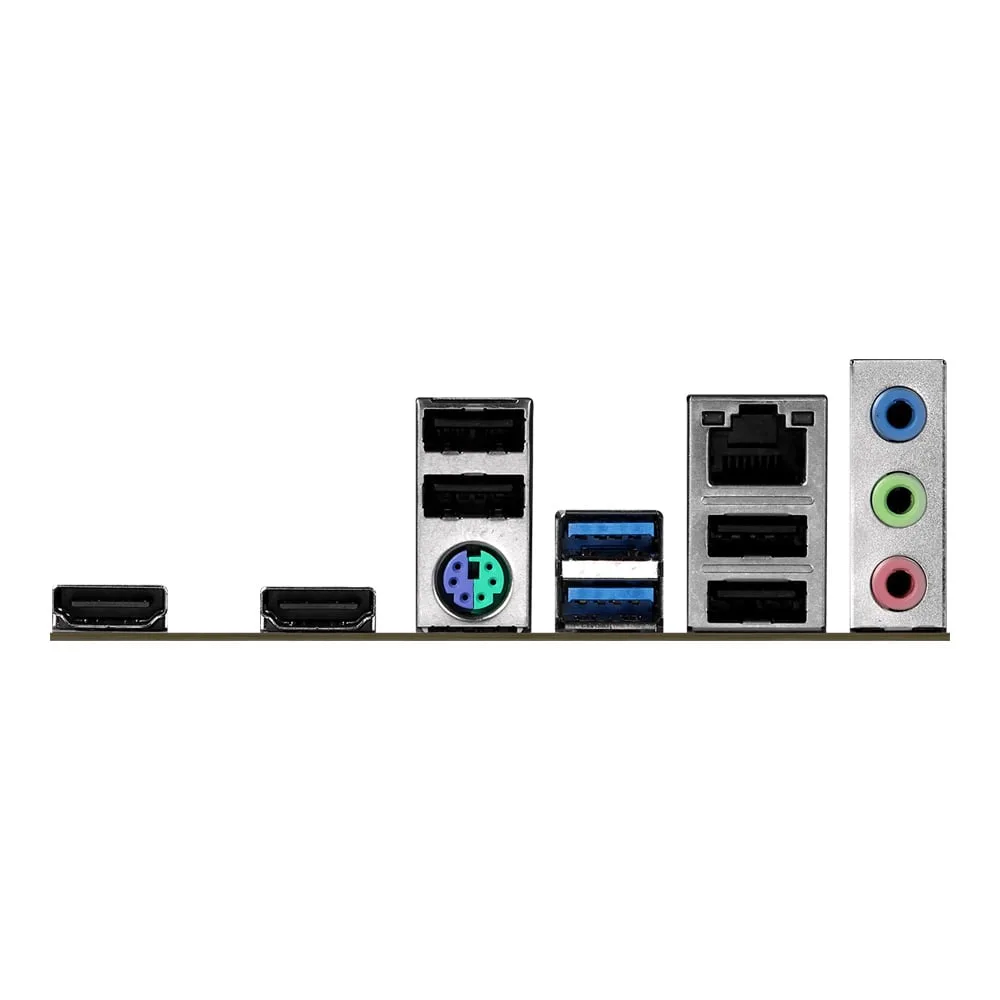

| USB 2.0 | 4 Port |
| USB 3.0 | – Port |
| USB 3.1 | – Port |
| Serial | – Port |
| USB 3.2 | 2 x USB 3.2 Gen1 Type-A Port |
| D-Sub (VGA) | – Port |
| DVI | – Port |
| HDMI | 2 Port |
| DisplayPort | – Port |
| Audio | 3 Port |
| PS/2 | 1 (Keyboard/Mouse combo) Port |
| Additional | No |
| LAN | 1 Port |
| Form Factor | Micro-ATX |
| Power Connector | 24 + 8 Pin |
| Dimension | 22.0 x 19.3 cm |
| การรับประกัน | 3 Years |
